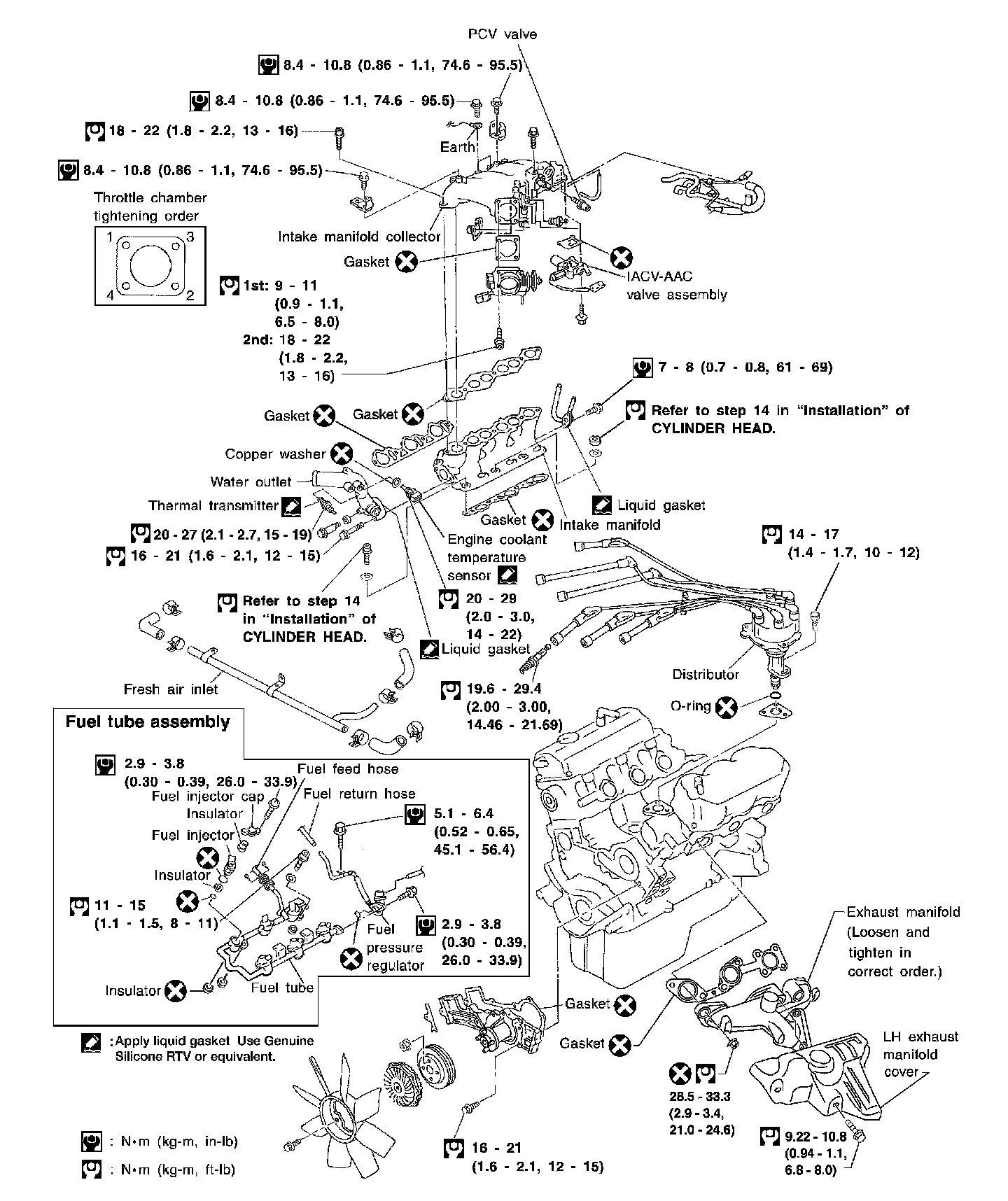

Engine Assembly and Outer Components

Fuel Tube Assembly, Exhaust Manifold, ECT Sensor, Thermal Transmitter, PCV Valve, Throttle Chamber:
