Home >> Nissan-Datsun Truck >> 2002 >> Xterra XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> System Specifications >> Torque Specifications >> Supercharger

Supercharger

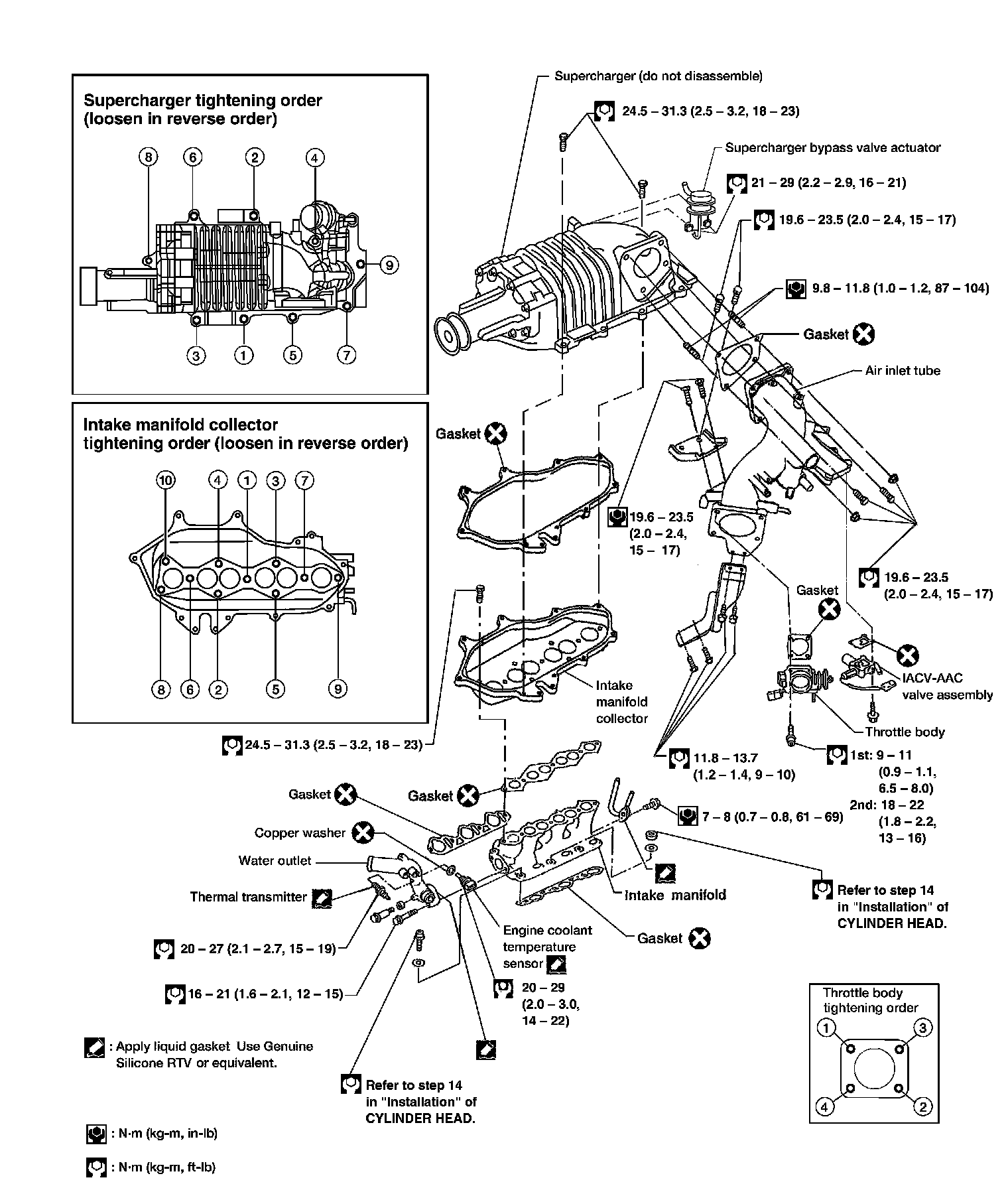

Supercharger, Intake Manifold Collector, ECT Sensor, Thermal Transmitter, Throttle Body,:



Supercharger:
