Home >> Nissan-Datsun Truck >> 2002 >> Xterra XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Ignition System >> Crankshaft Position Sensor >> Locations

Crankshaft Position Sensor: Locations

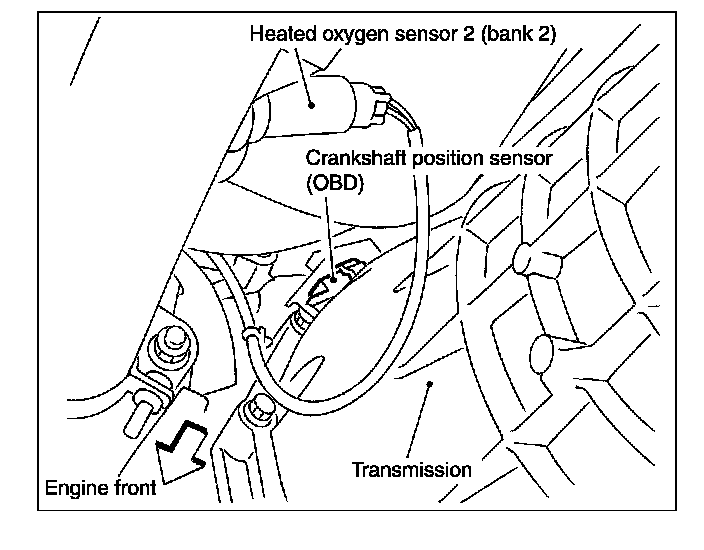

Heated Oxygen Sensor 2 (Bank 2) / Cranckshaft Position Sensor (OBD) / Transmission:

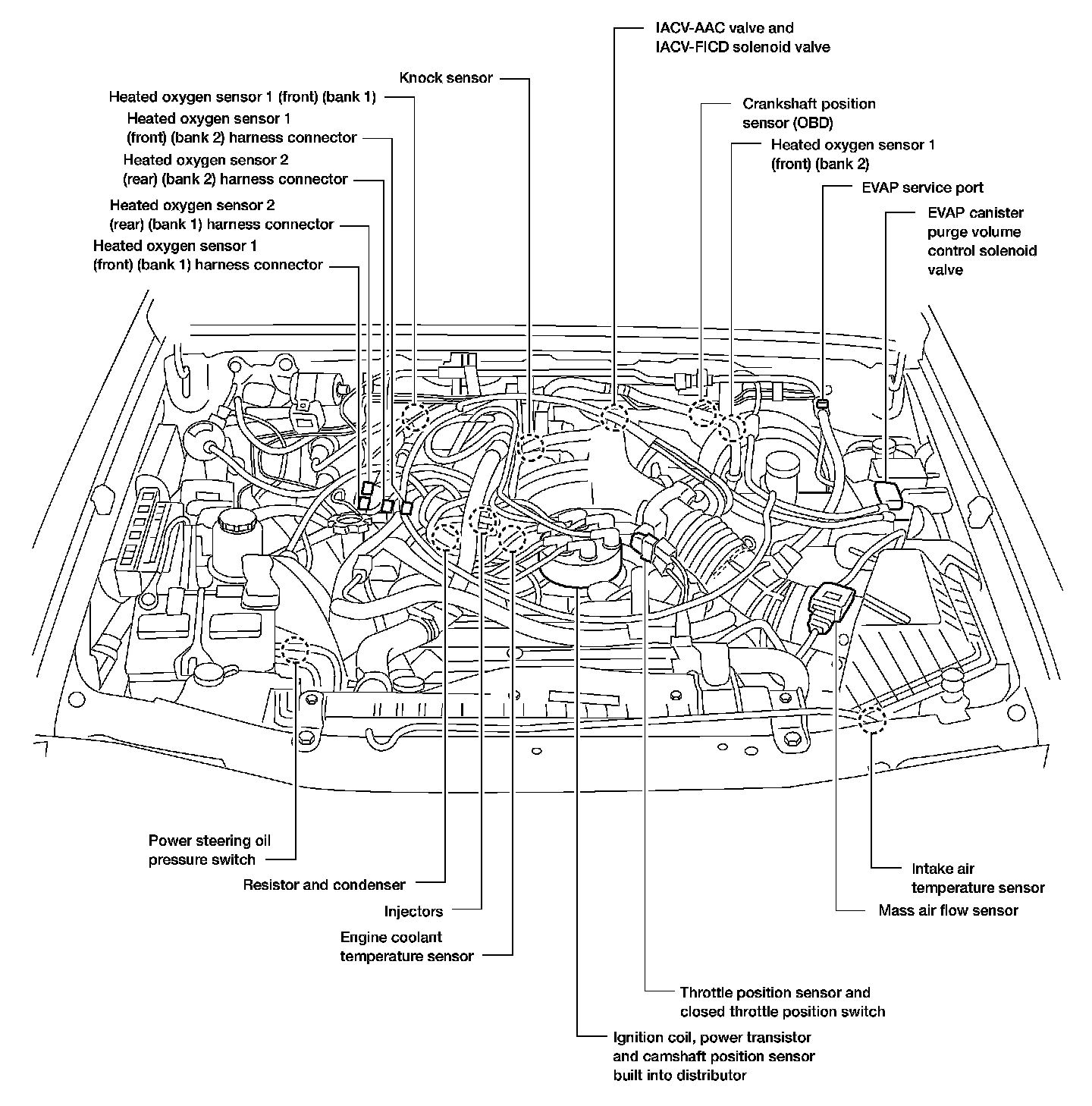

Engine Control Component Parts Location:
