Main Power Supply and Ground Circuit Testing

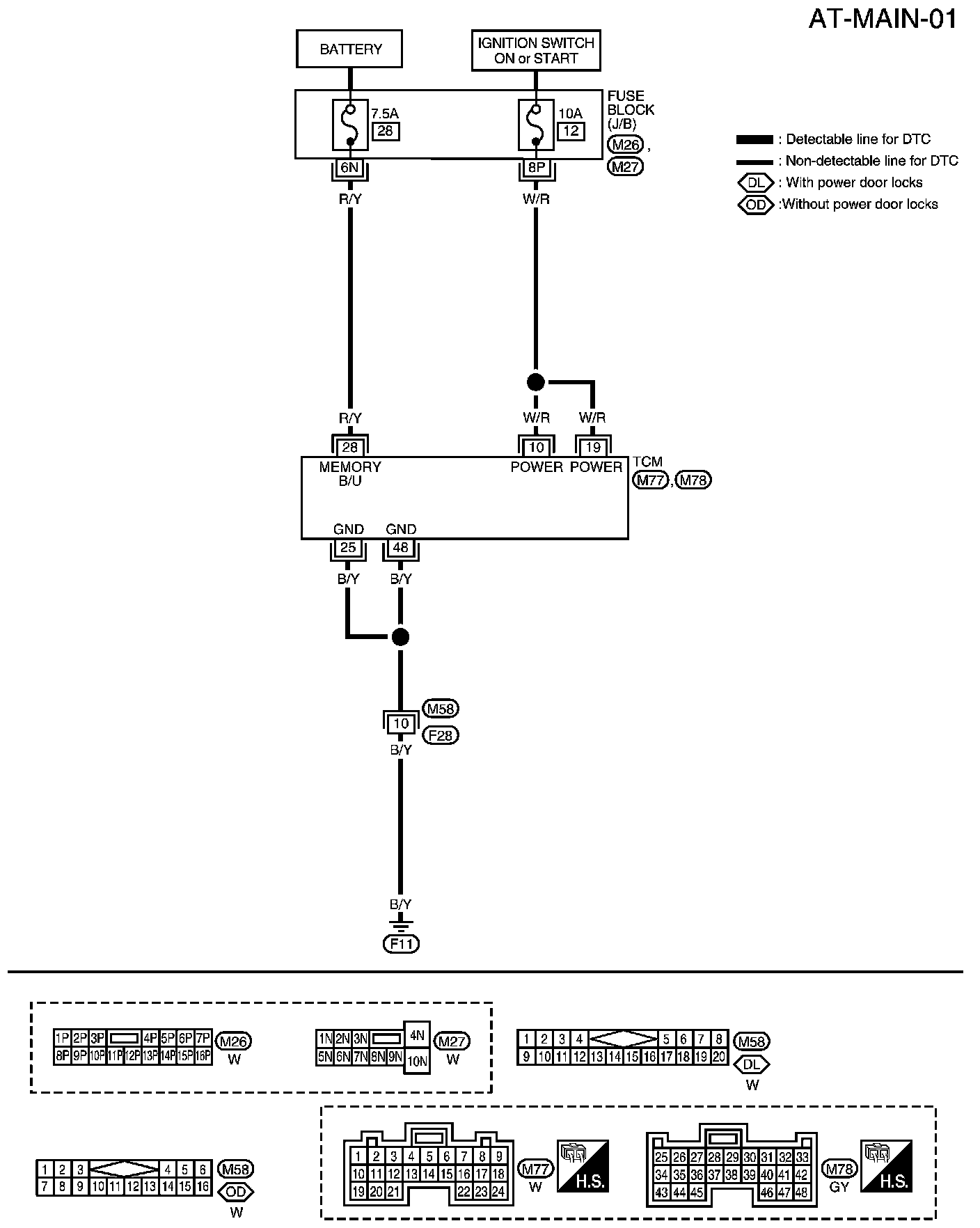

Wiring Diagram - AT - MAIN:

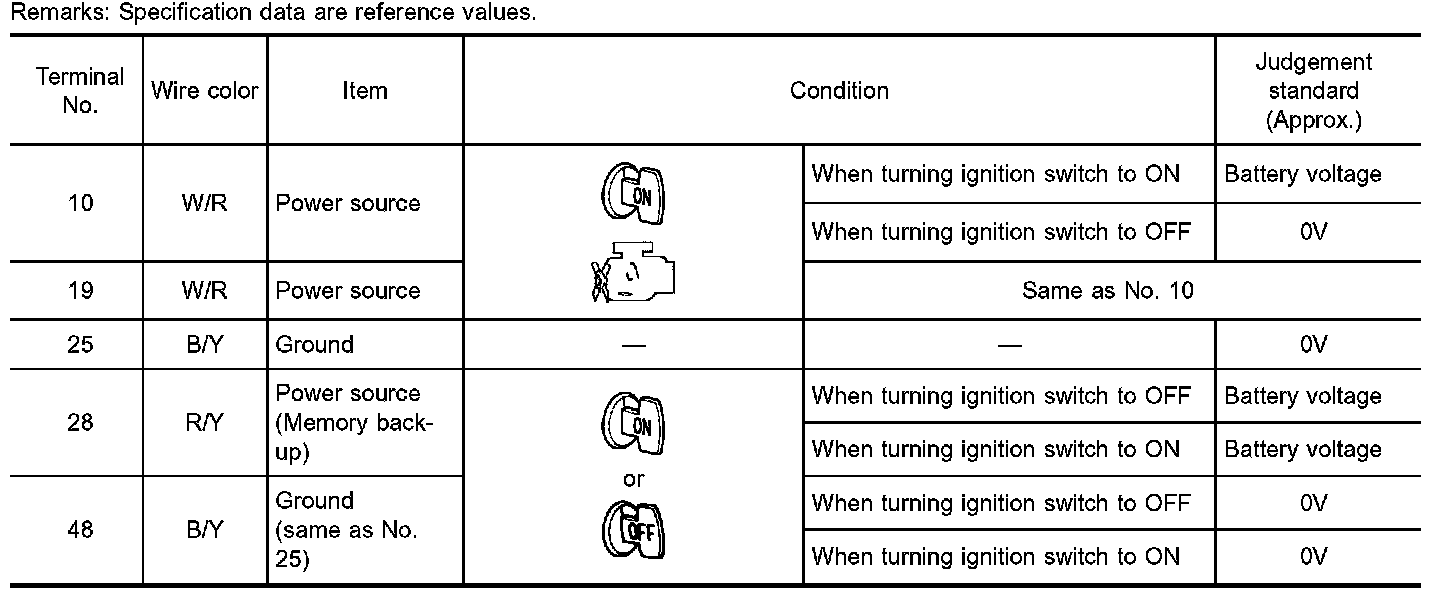

TCM TERMINALS AND REFERENCE VALUE:






TROUBLE DIAGNOSIS FOR POWER SUPPLY


Diagnostic Procedure

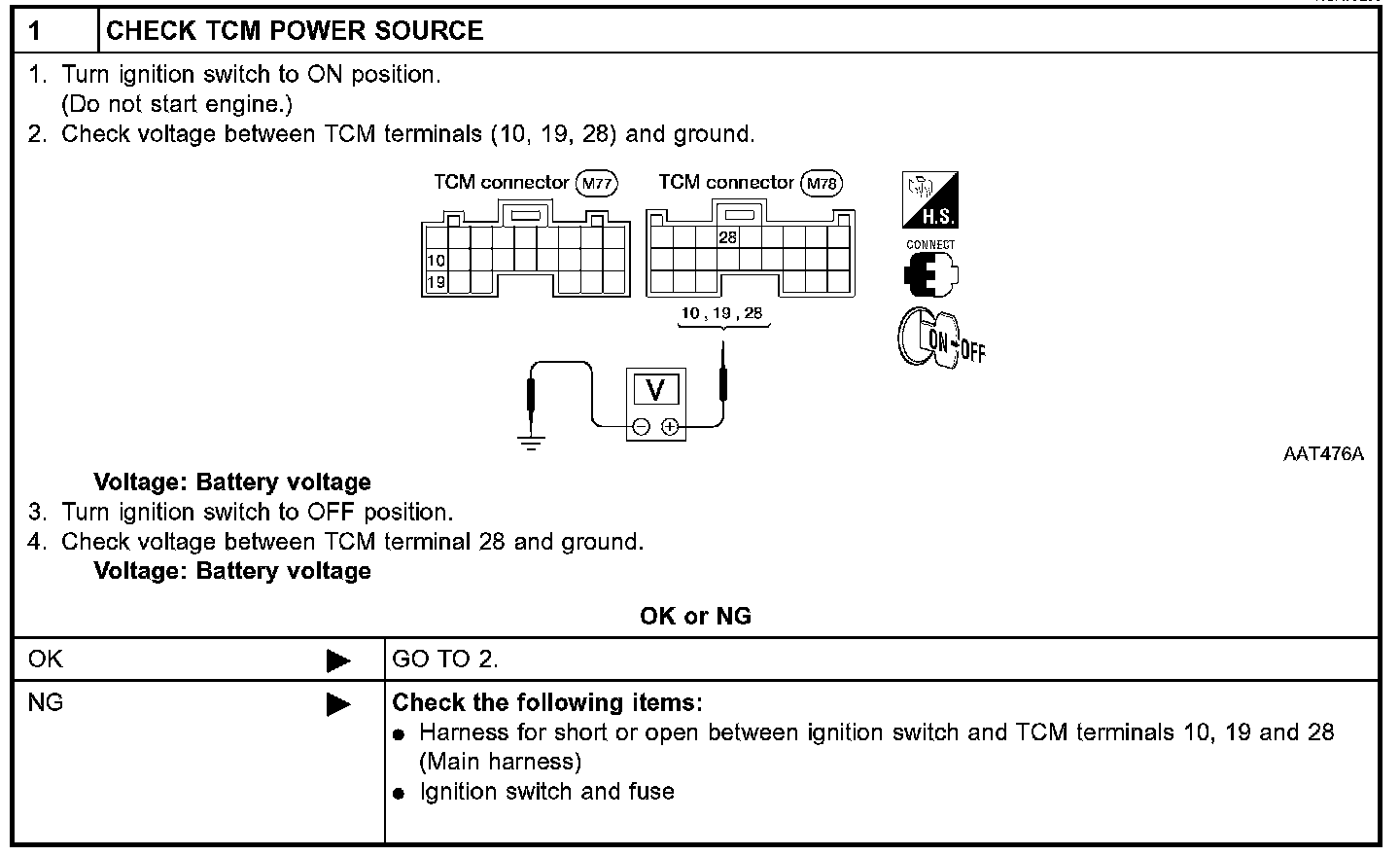

1. Check TCM Power Source

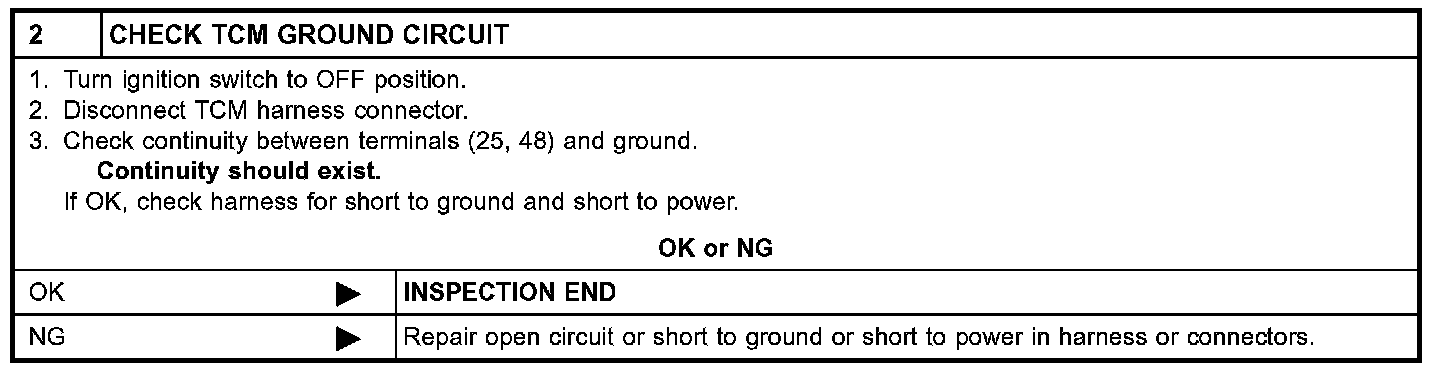

2. Check TCM Ground Circuit
