Control Unit (EEP ROM)

DTC CONTROL UNIT (EEP ROM)
Description





The TCM consists of a microcomputer and connectors for signal input and output and for power supply. The unit controls the A/T.

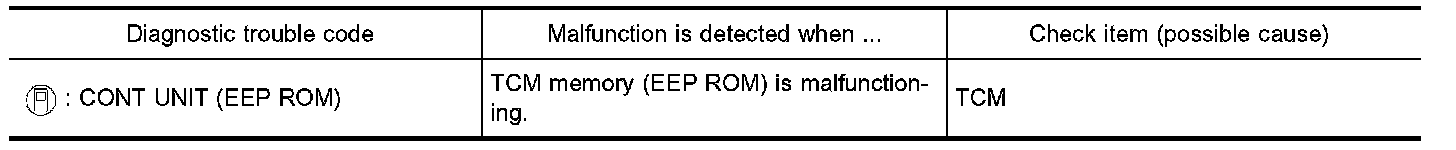

ON BOARD DIAGNOSIS LOGIC

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.

With CONSULT-II

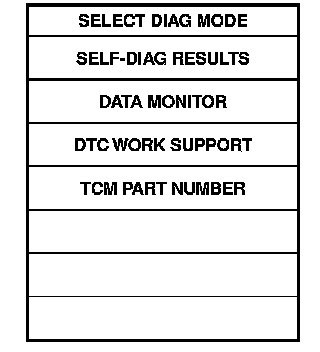

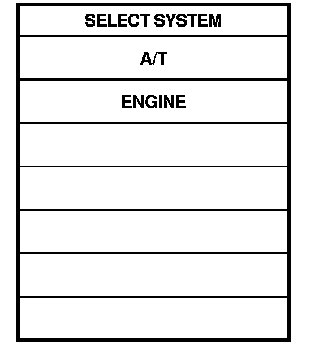

1) Turn ignition switch ON and select "DATA MONITOR" mode for "A/T" with CONSULT-II.
2) Start engine.
3) Run engine for at least 2 seconds at idle speed.

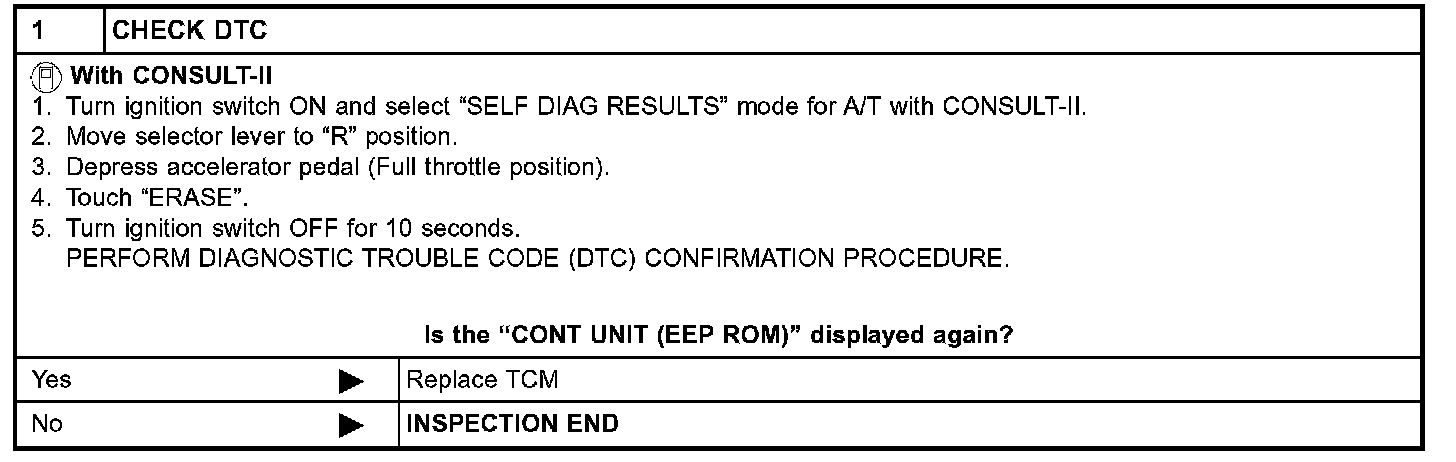

Diagnostic Procedure
