Batt/Fluid Temp (Fluid Temp Sens. Circuit & TCM Pwr. Source)

DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER SOURCE)
Description

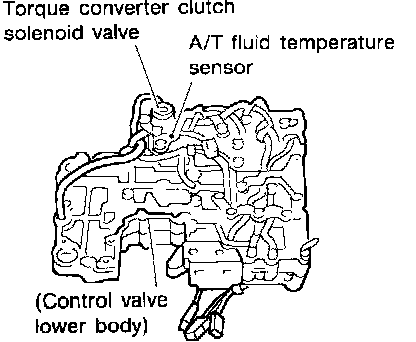

The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM.

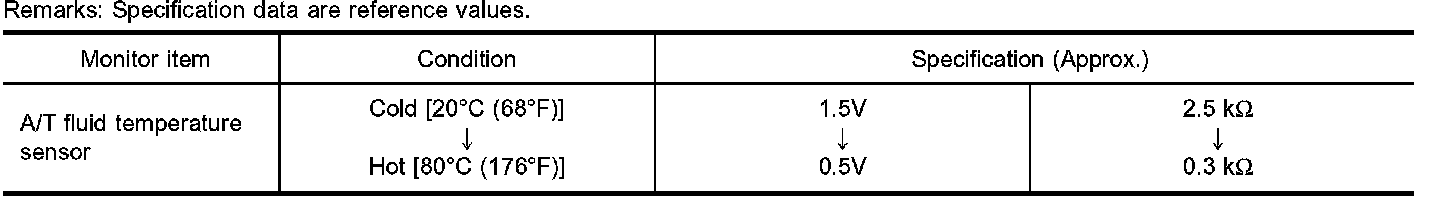

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE

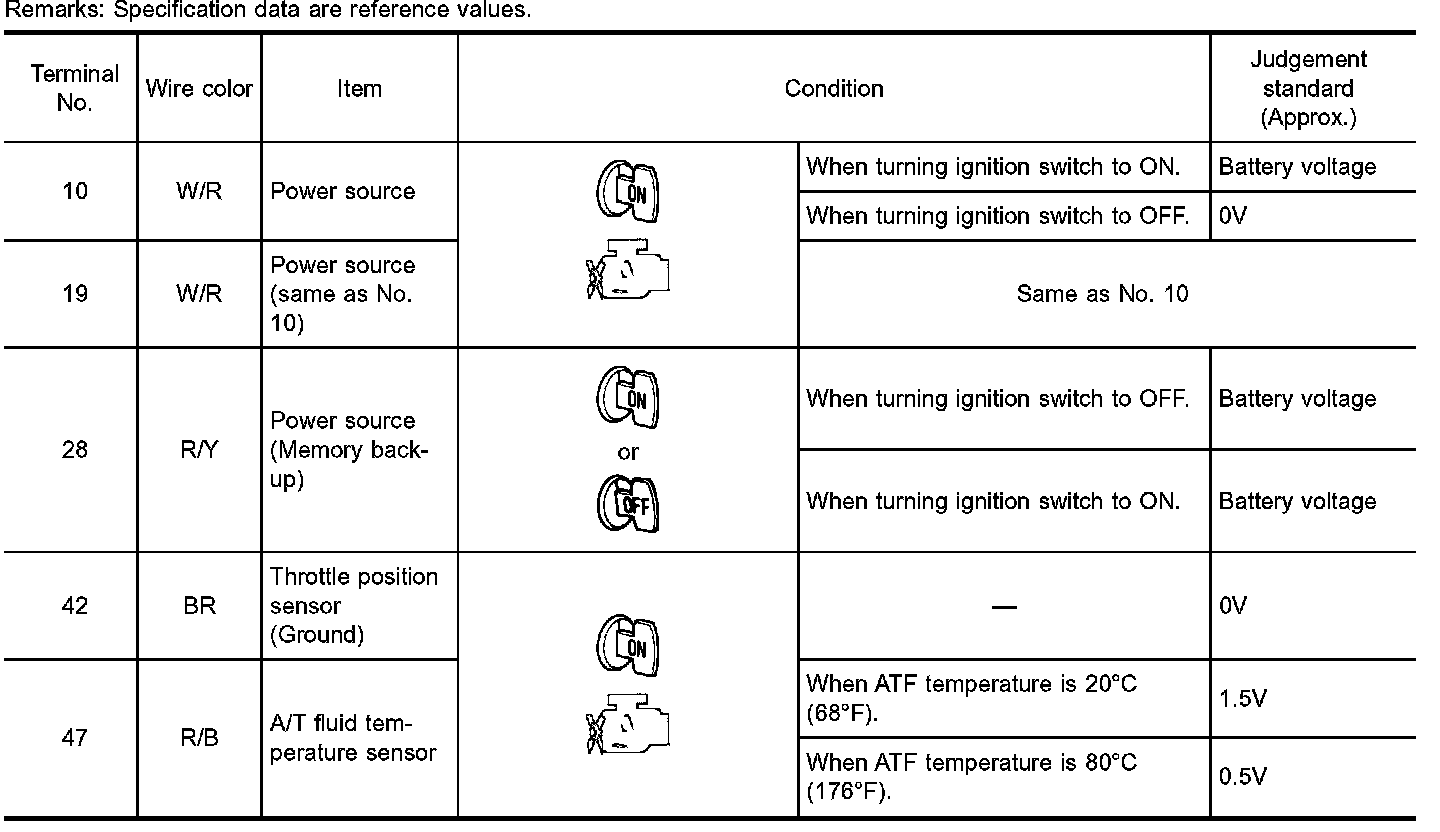

TCM TERMINALS AND REFERENCE VALUE

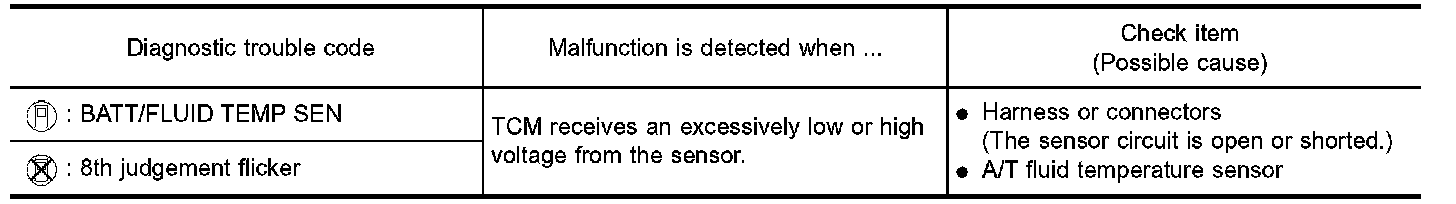

ON BOARD DIAGNOSIS LOGIC

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II
1) Start engine.

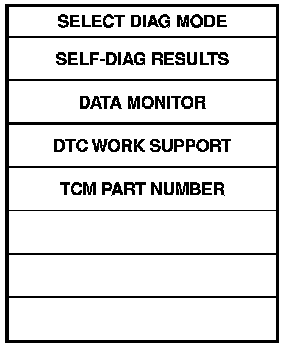

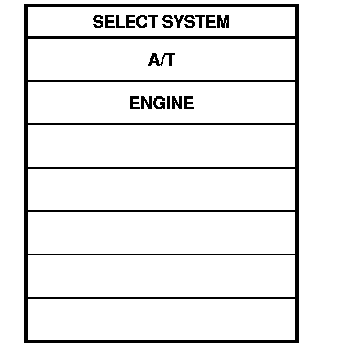

2) Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
3) Drive vehicle under the following conditions:
Selector lever in D position, vehicle speed higher than 20 km/h (12 MPH).

Without CONSULT-II
1) Start engine.





2) Drive vehicle under the following conditions:
Selector lever in D position, vehicle speed higher than 20 km/h (12 MPH).

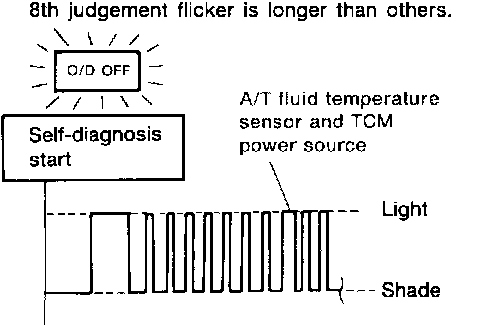

3) Perform self-diagnosis.

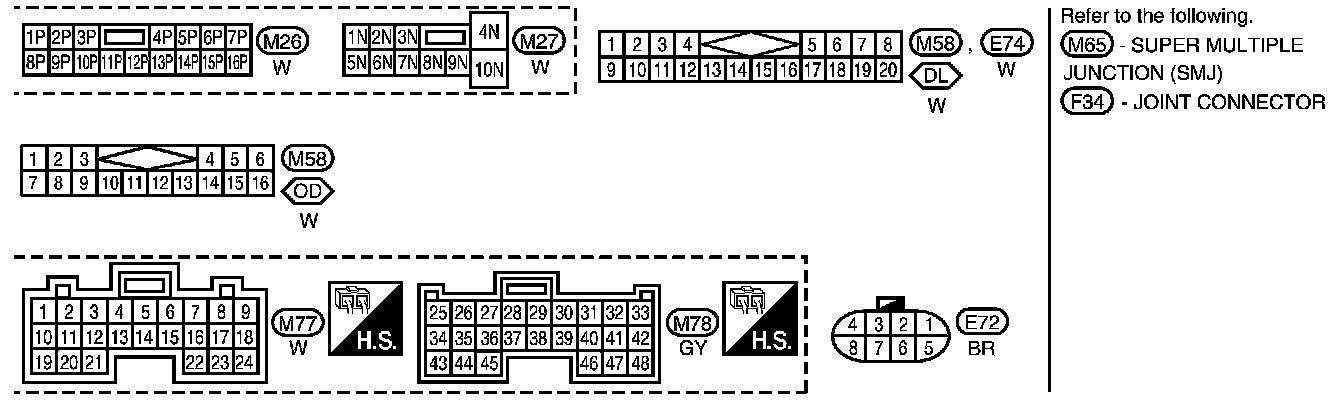

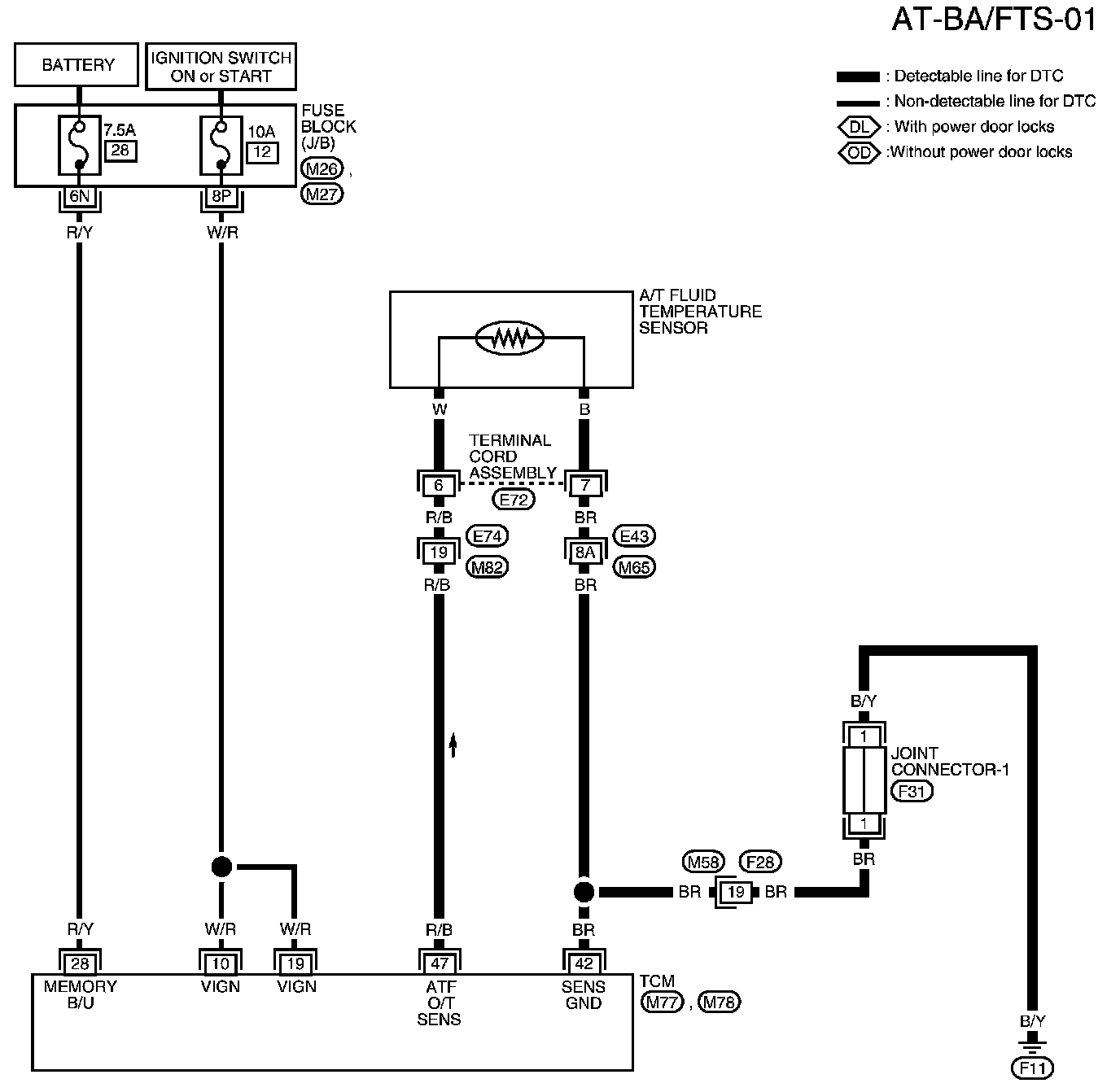

Wiring Diagram-AT-BA/FTS

Diagnostic Procedure

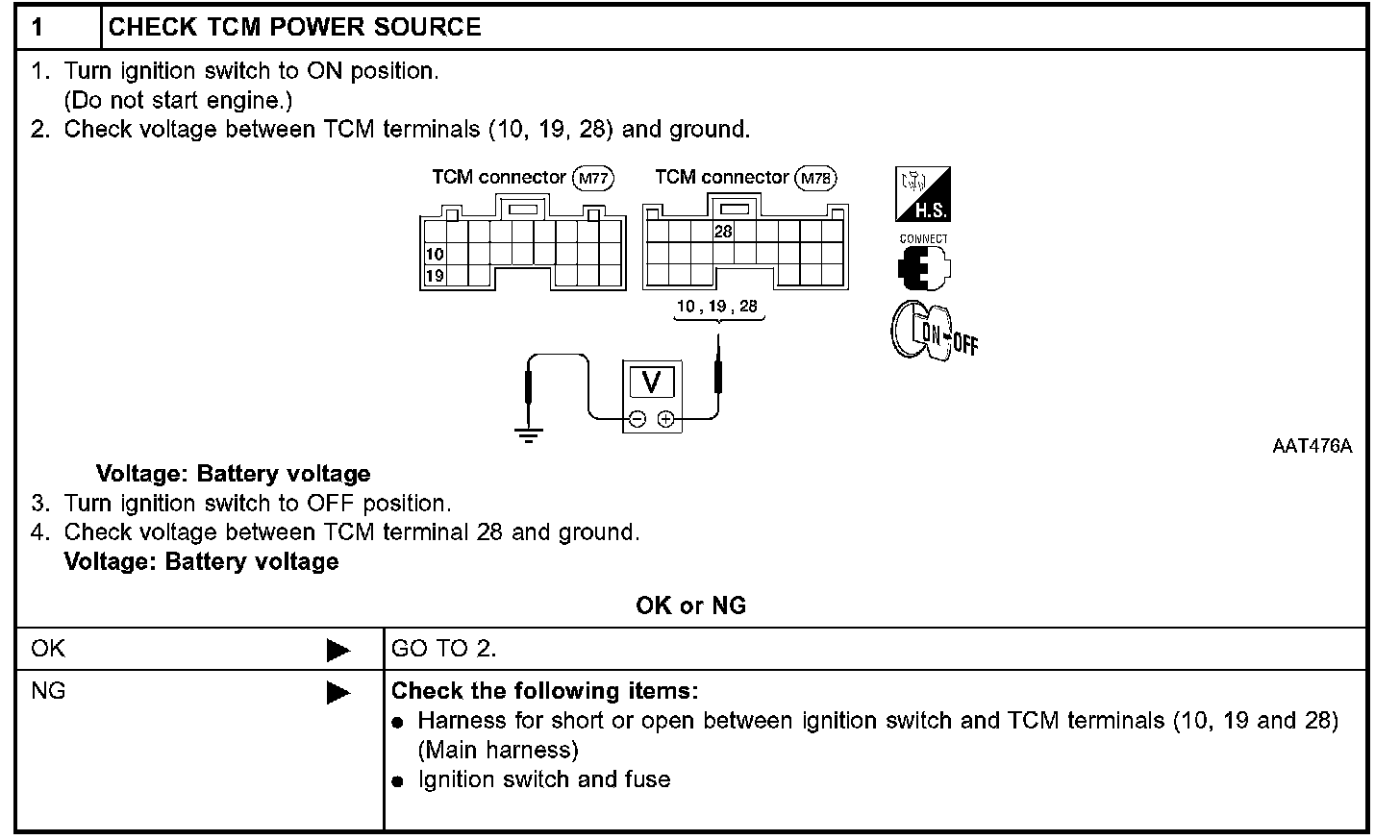

1. Check TCM Power Source

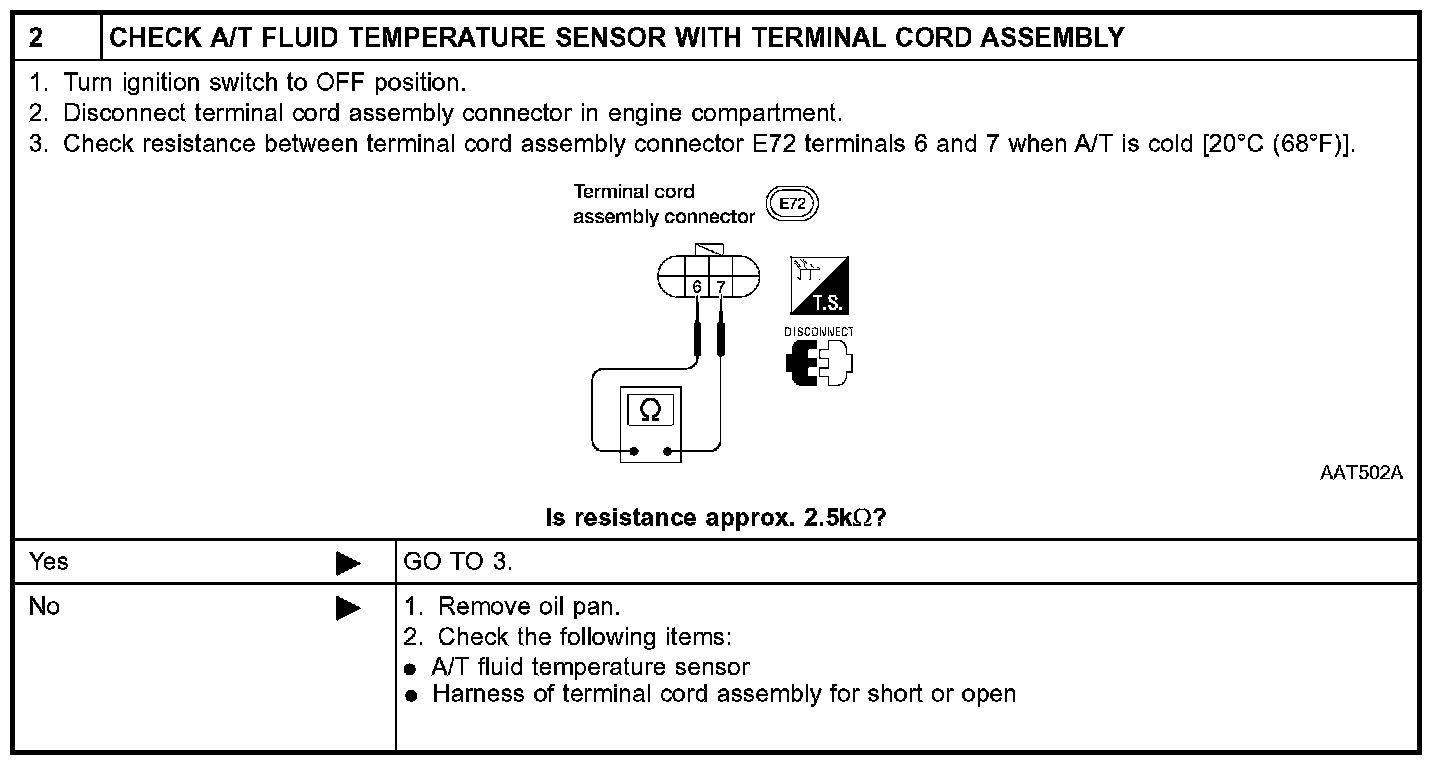

2. Check A/T Fluid Temperature Sensor With Terminal Cord Assembly

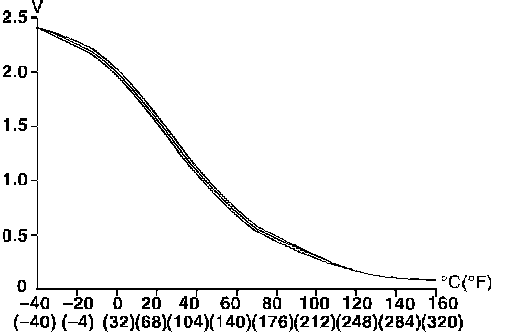

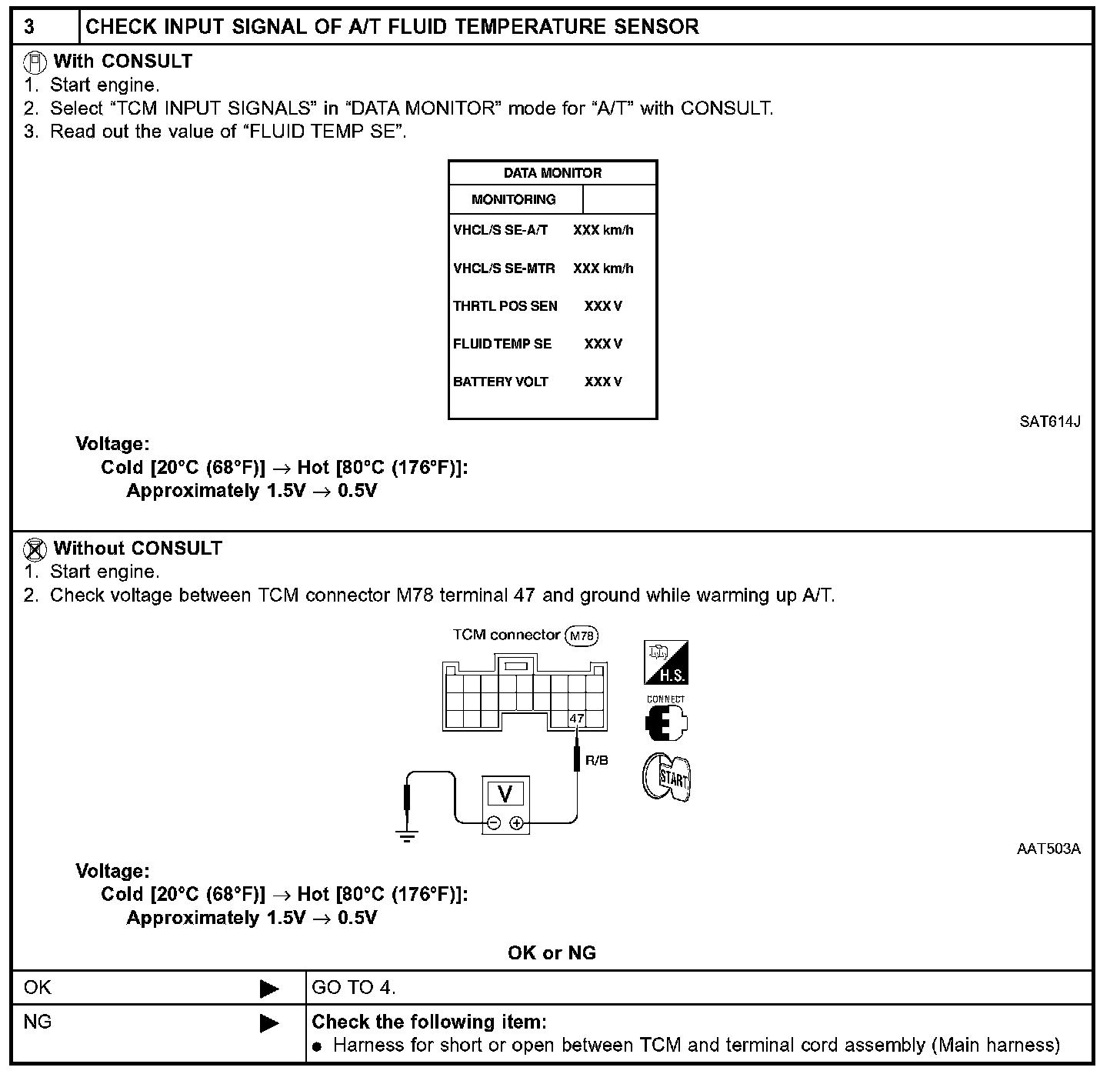

3. Check Input Signal of A/T Fluid Temperature Sensor

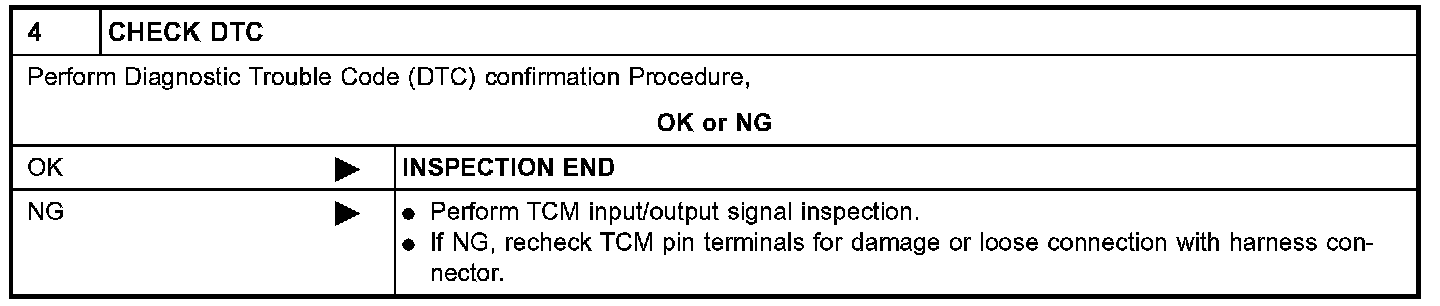

4. Check DTC

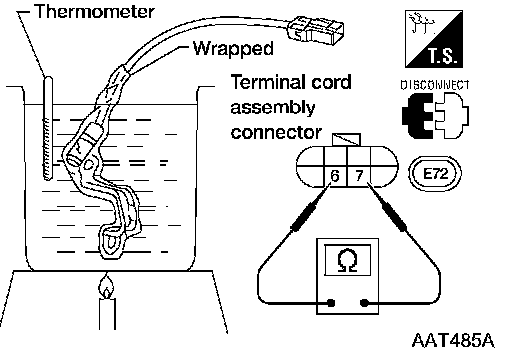

Component Inspection
A/T FLUID TEMPERATURE SENSOR








- Check resistance between terminals 6 and 7 while changing temperature as shown at left.
