Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

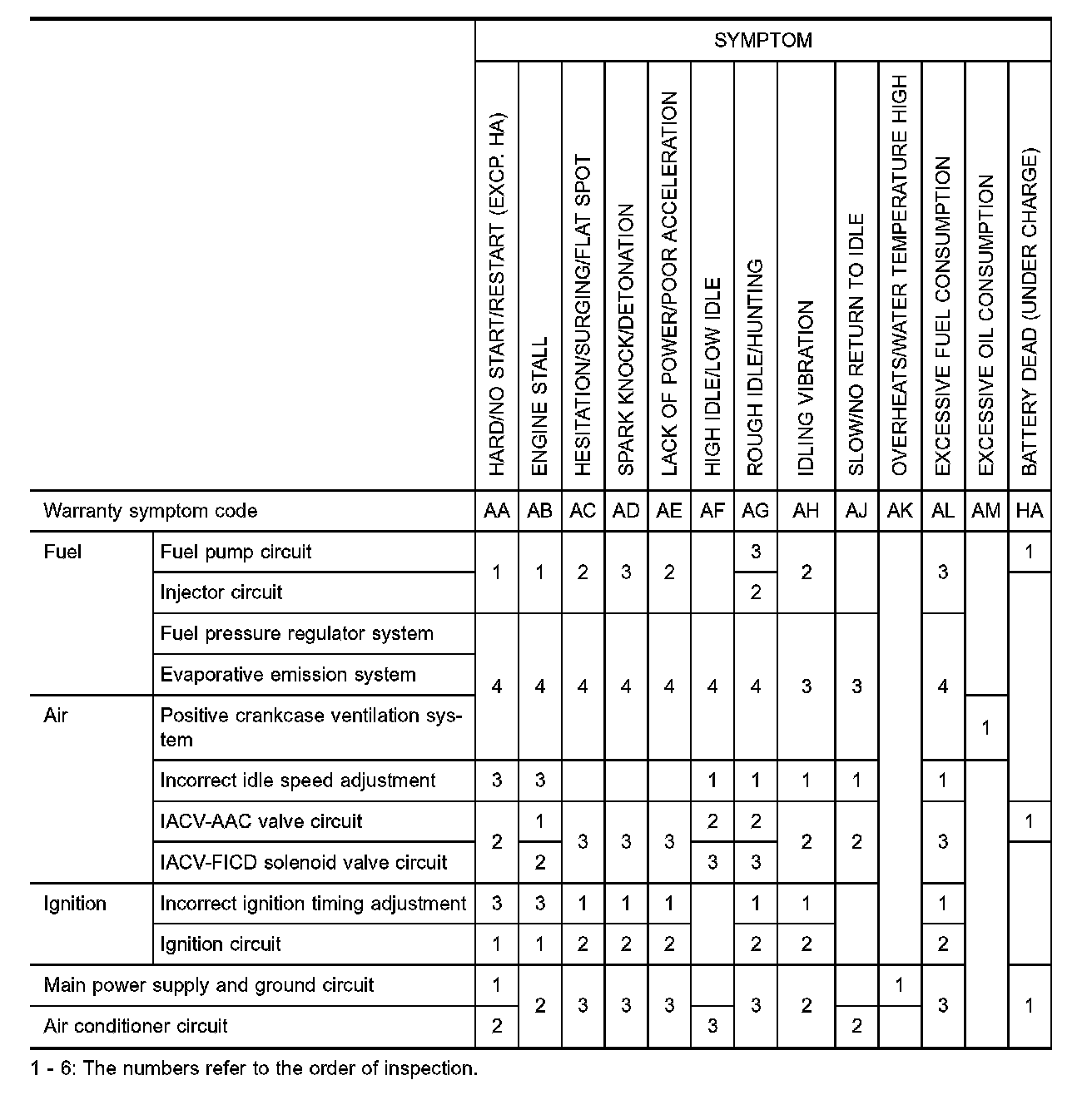

Symptom Matrix Chart Part 1:

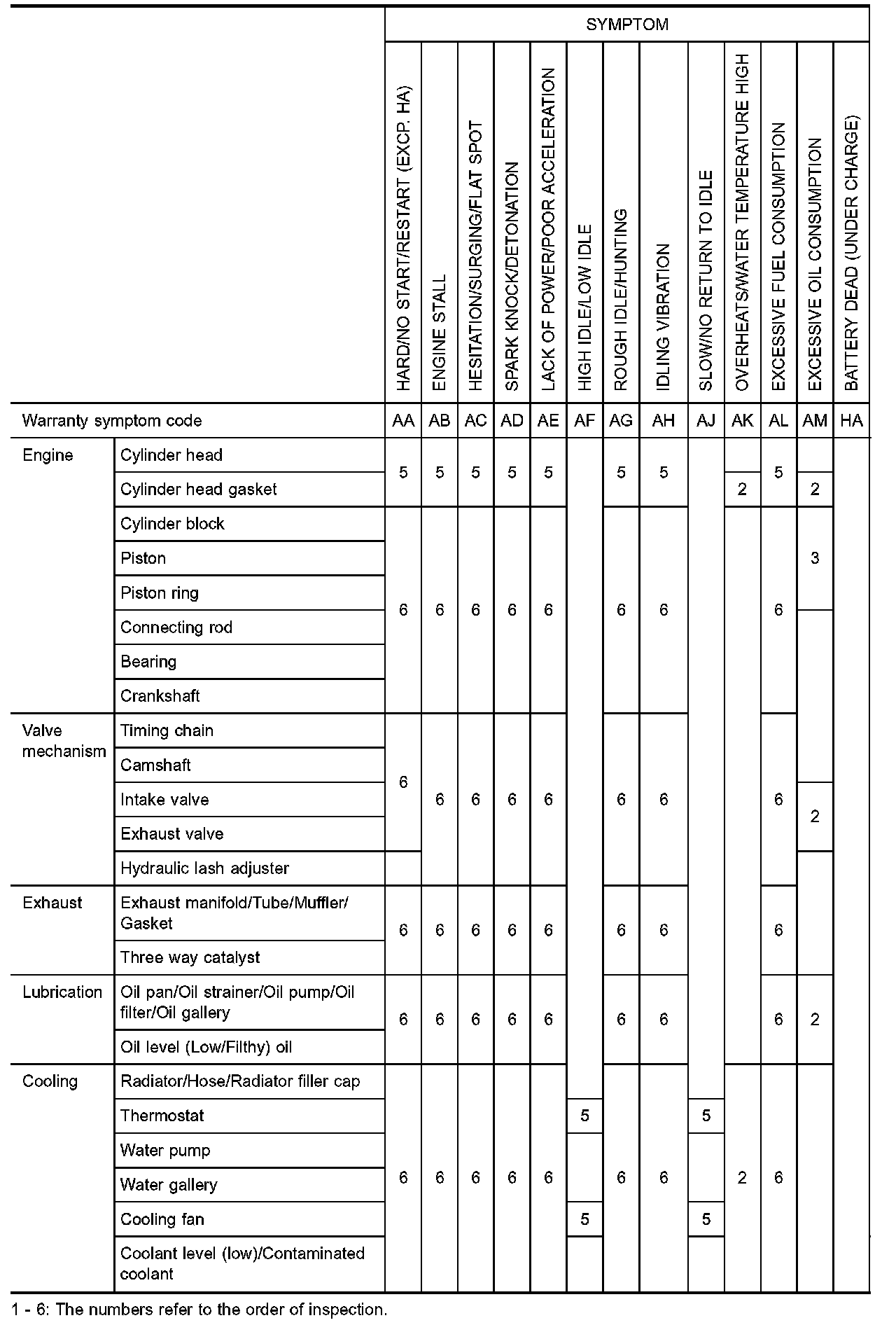

Symptom Matrix Chart Part 2:

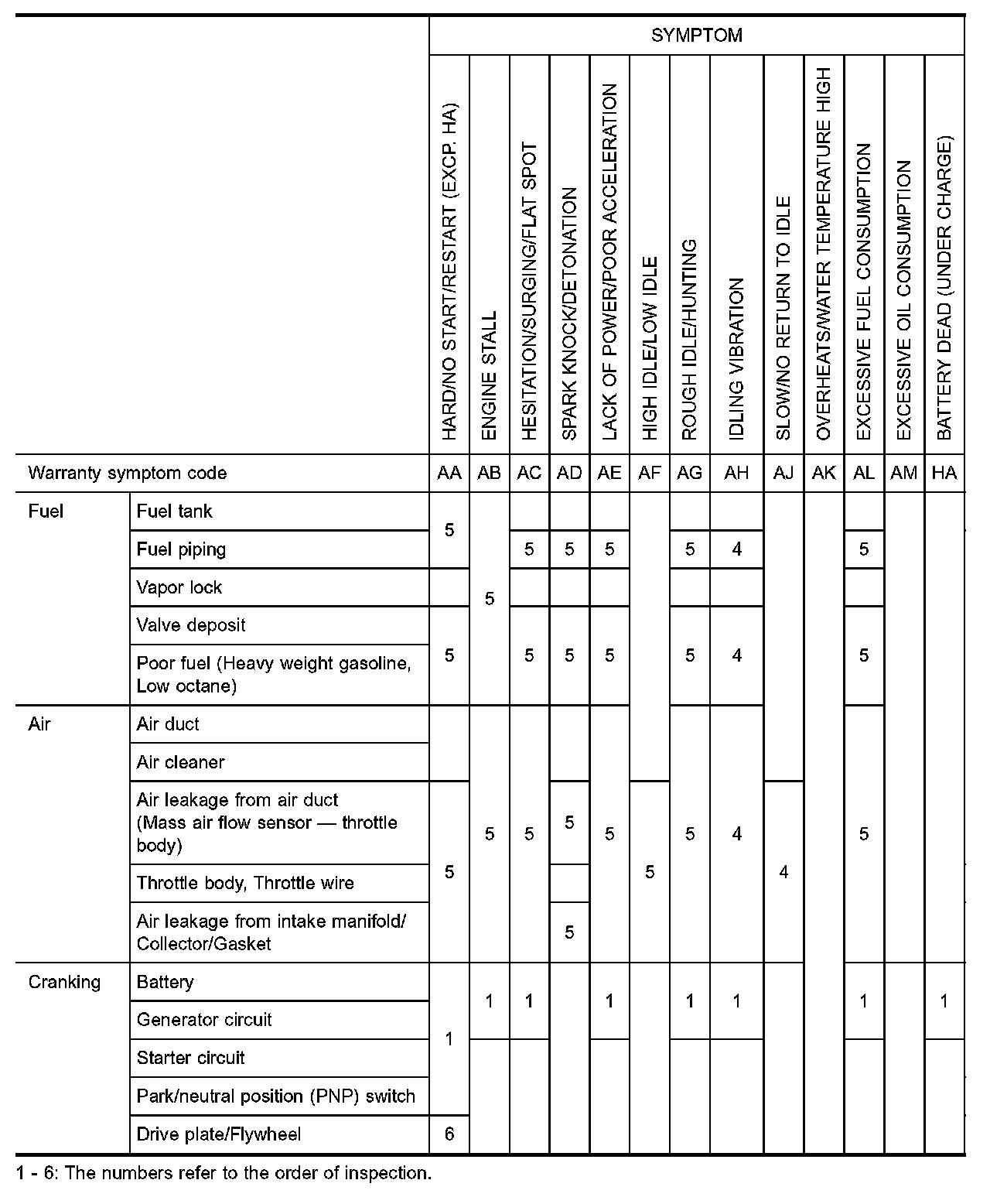

Symptom Matrix Chart Part 3:

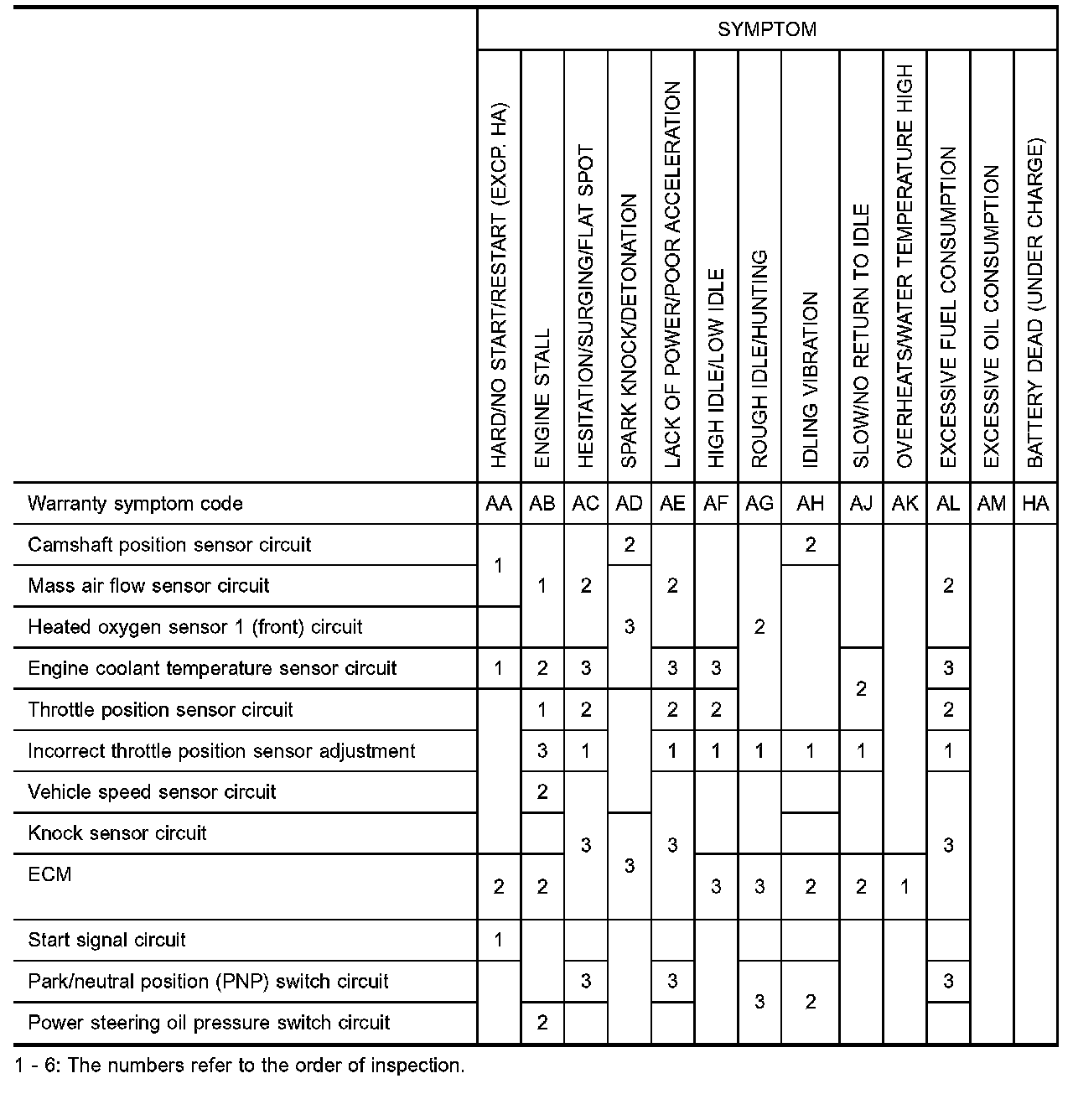

Symptom Matrix Chart Part 4:
