Sensor Reference Graphs In Data Monitor Mode

The following are the major sensor reference graphs in "DATA MONITOR" mode.
(Select "HI SPEED" in "DATA MONITOR" with CONSULT-II.)

THRTL POS SEN, ABSOL TH.P/S, CLSD THL POS

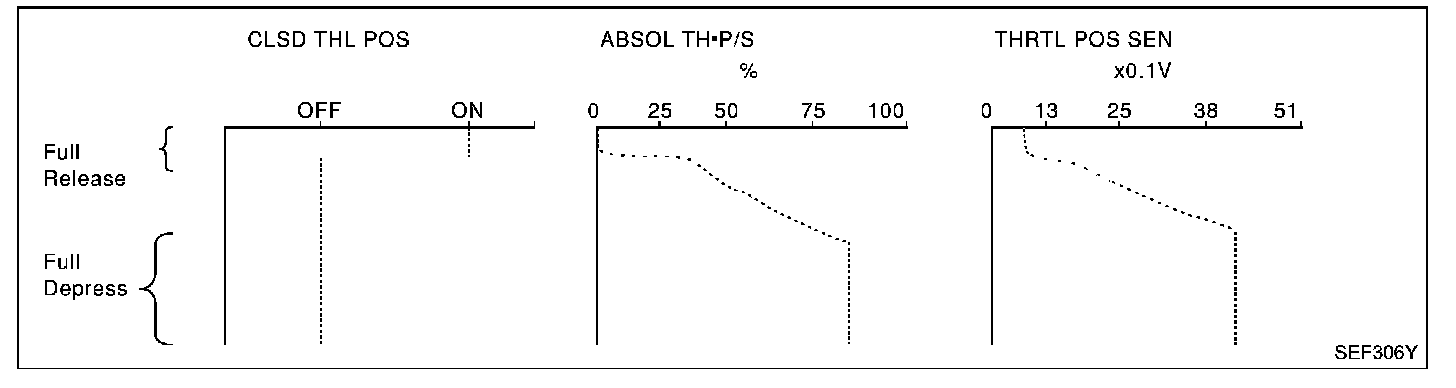

Below is the data for "THRTL POS SEN", "ABSOL TH.P/S" and "CLSD THL POS" when depressing the accelerator pedal with the ignition switch ON.




The signal of "THRTL POS SEN" and "ABSOL TH.P/S" should rise gradually without any intermittent drop or rise after "CLSD THL POS" is changed from "ON" to "OFF".

ENG SPEED, MAS AIR/FL SE, THRTL POS SEN, HO2S(2) (B1), HO2S(1) (B1), INJ PULSE-B1

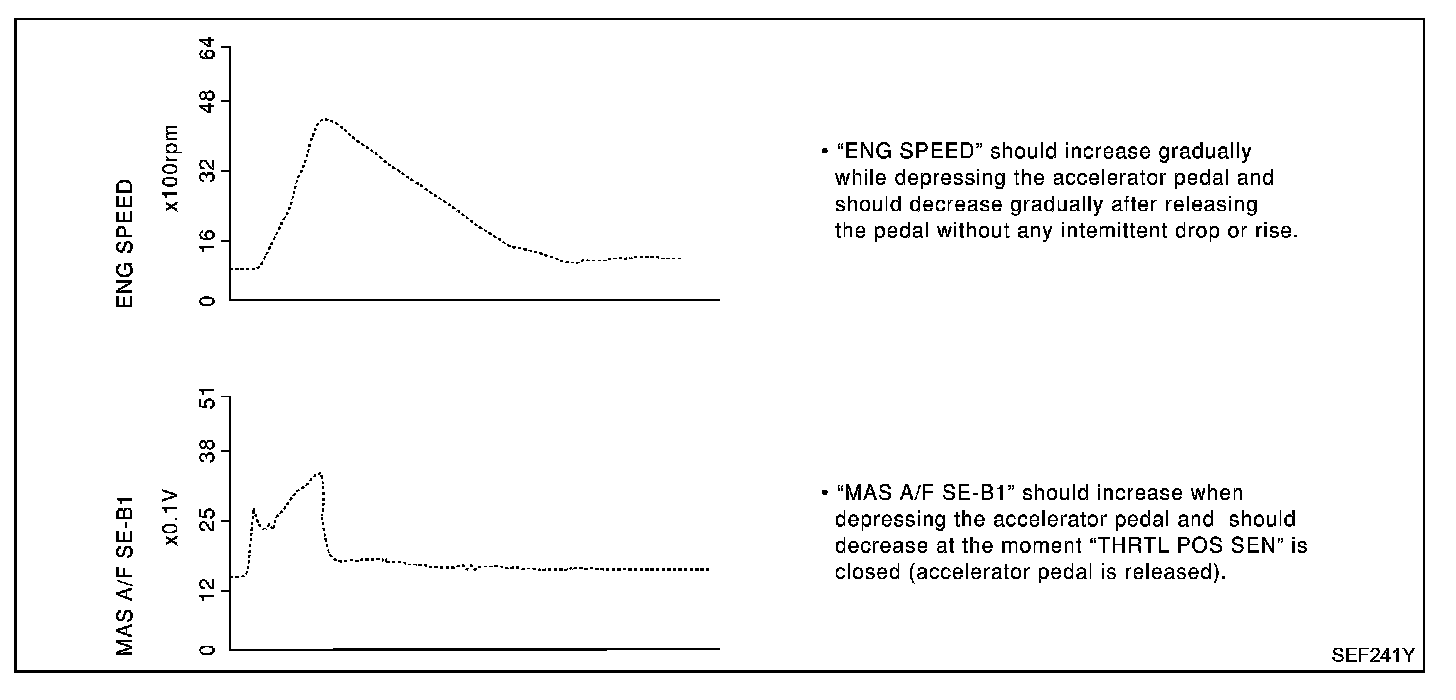

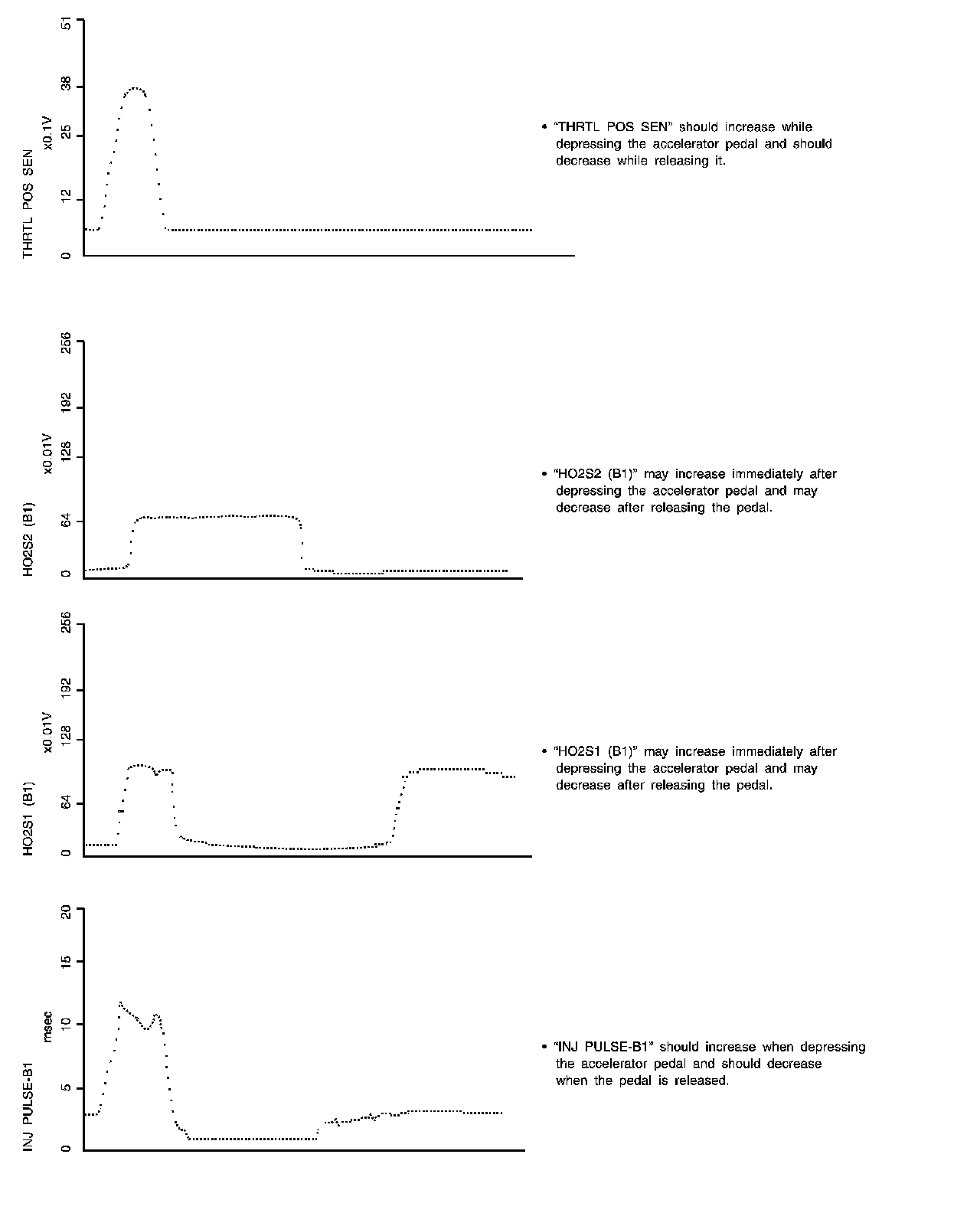

Below is the data for "ENG SPEED", "MAS AIR/FL SE", "THRTL POS SEN", "HO(2)S(2) (B1)", "HO(2)S(1) (B1)" and "INJ PULSE-B1" when revving engine quickly up to 4,800 rpm under no load after warming up engine sufficiently.

Each value is for reference, the exact value may vary.
