Self-Diag Results Mode

DTC and 1st Trip DTC
Regarding items of "DTC and 1st trip DTC", refer to "TROUBLE DIAGNOSIS - INDEX" [1][2]Diagnostic Trouble Code Descriptions

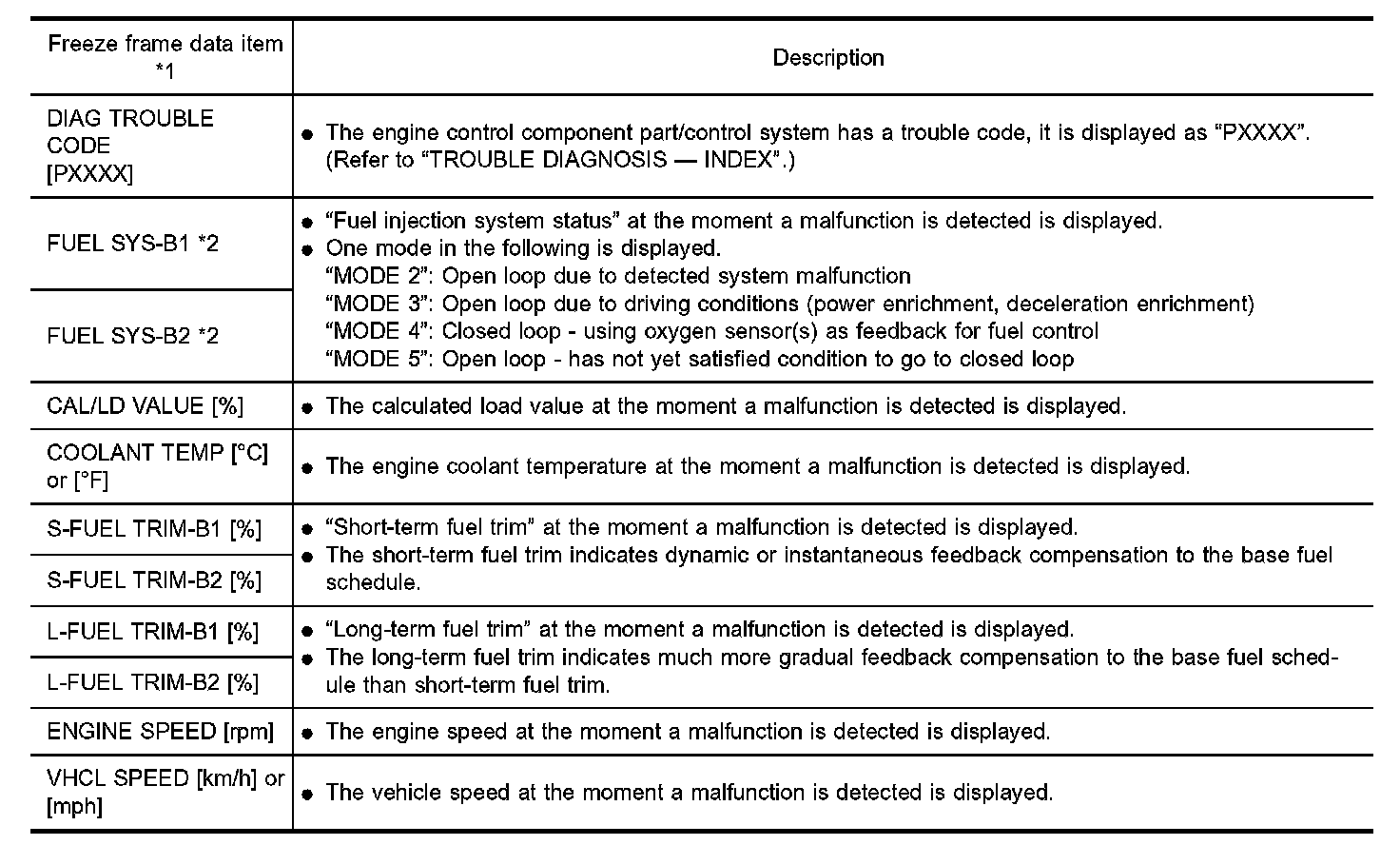

Freeze Frame Data And 1st Trip Freeze Frame Data Part 1:

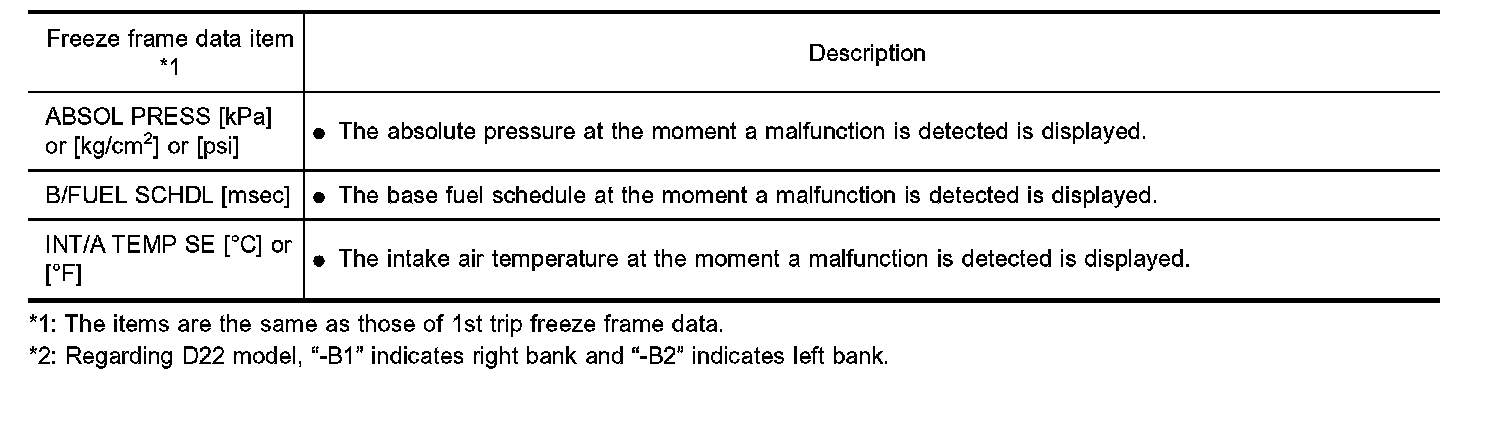

Freeze Frame Data And 1st Trip Freeze Frame Data Part 2:
