Component Tests and General Diagnostics

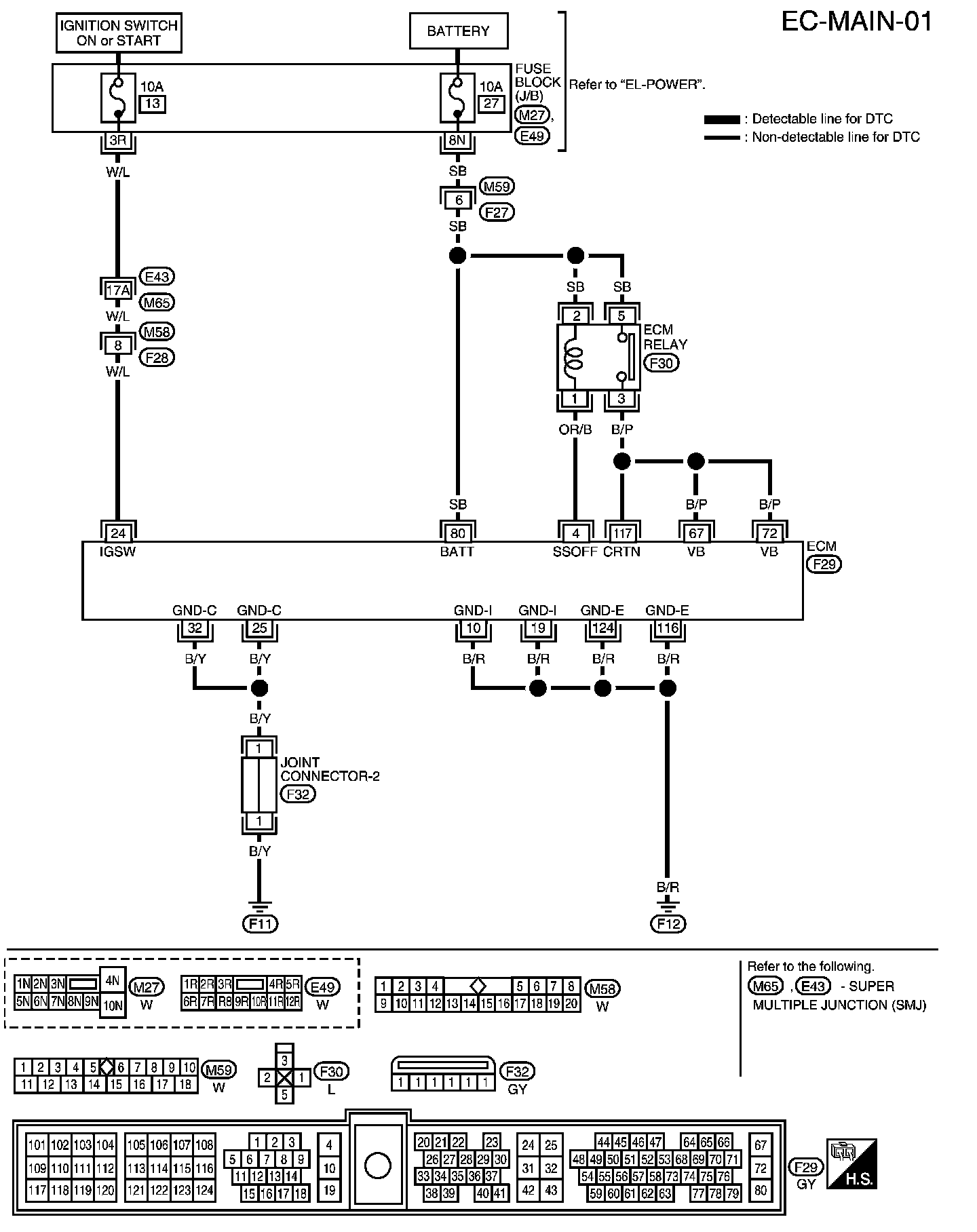

EC-MAIN-01:

Main Power Supply and Ground Circuit

ECM Terminals And Reference Value:

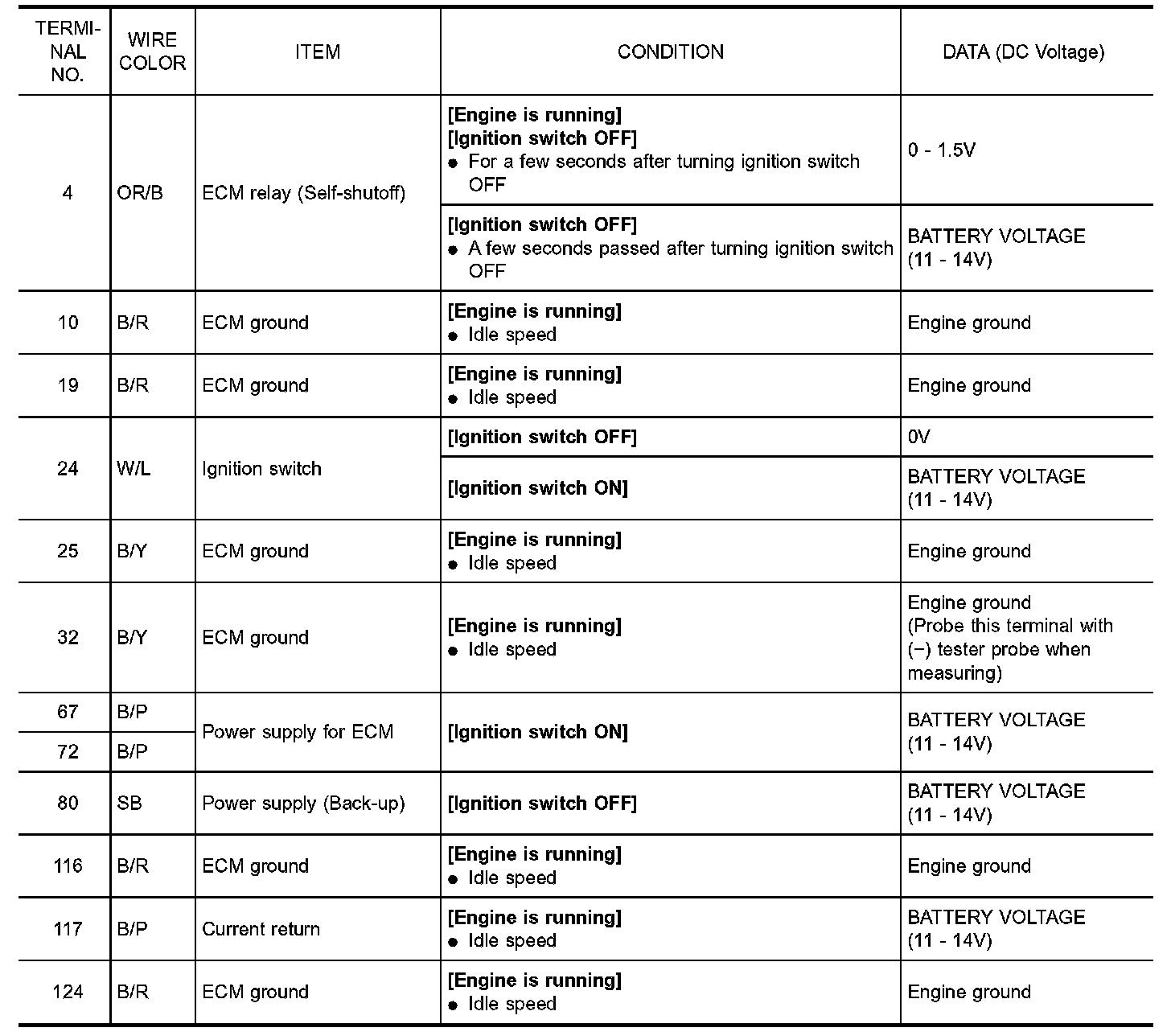

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than the ECM terminals, such as the ground.

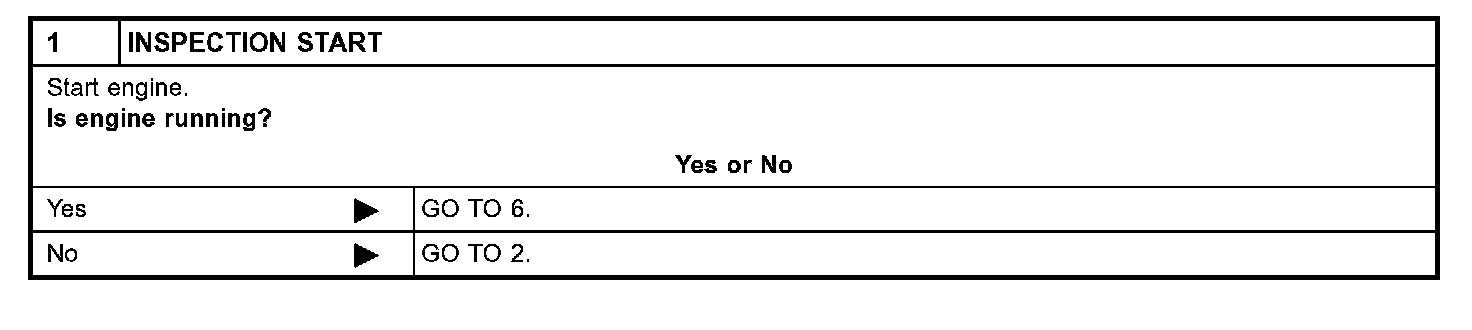

Step 1:

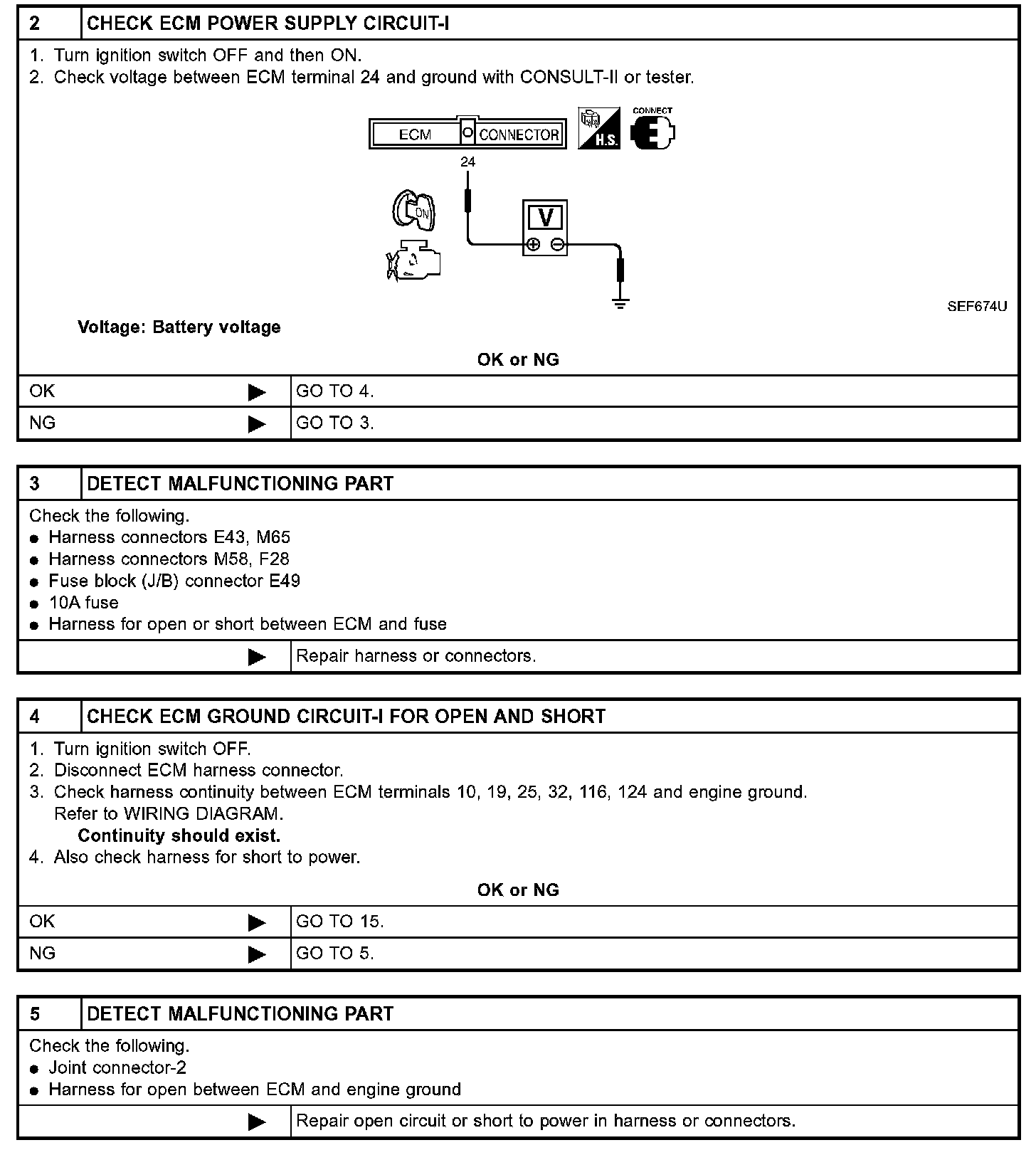

Step 2 - 5:

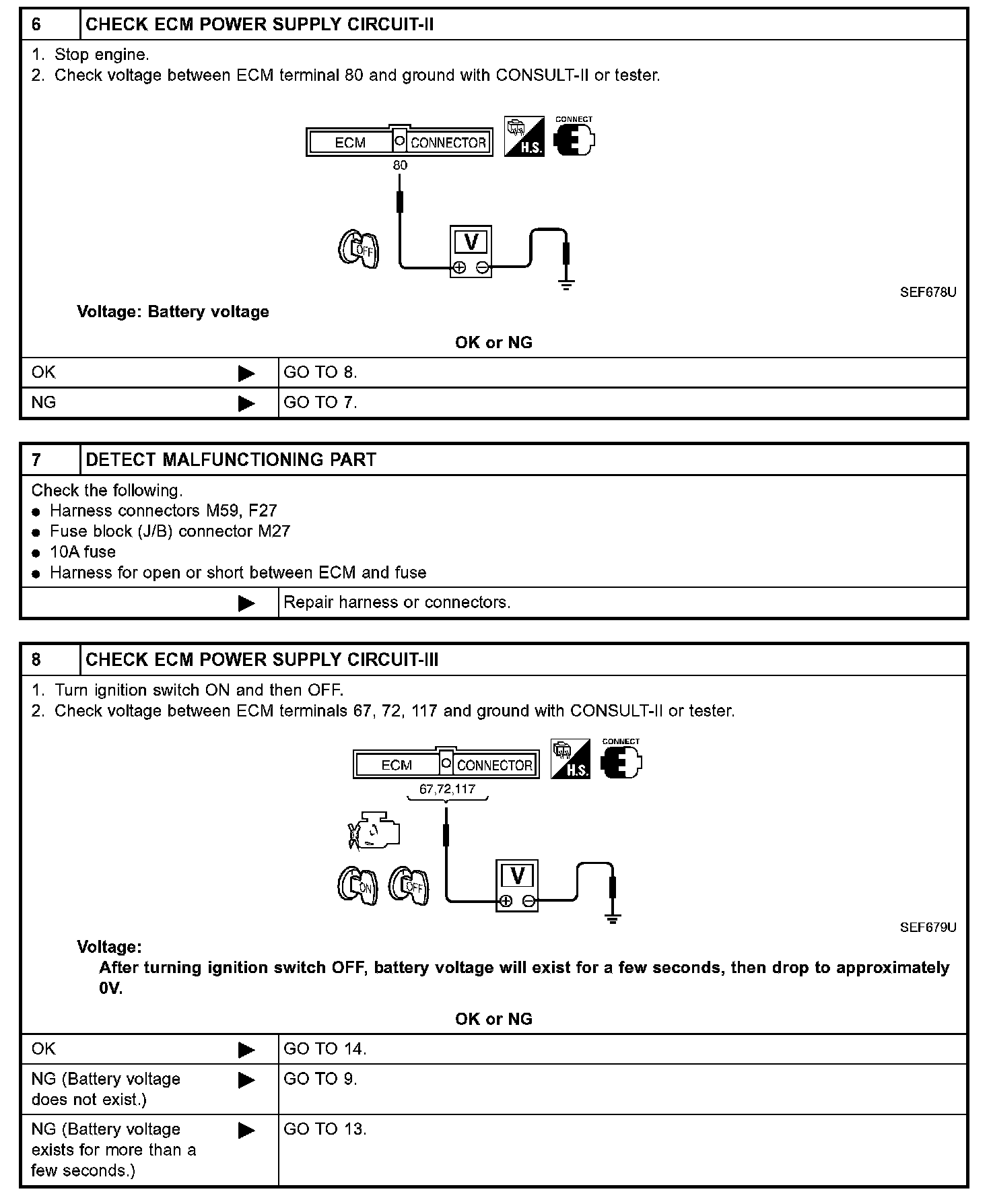

Step 6 - 8:

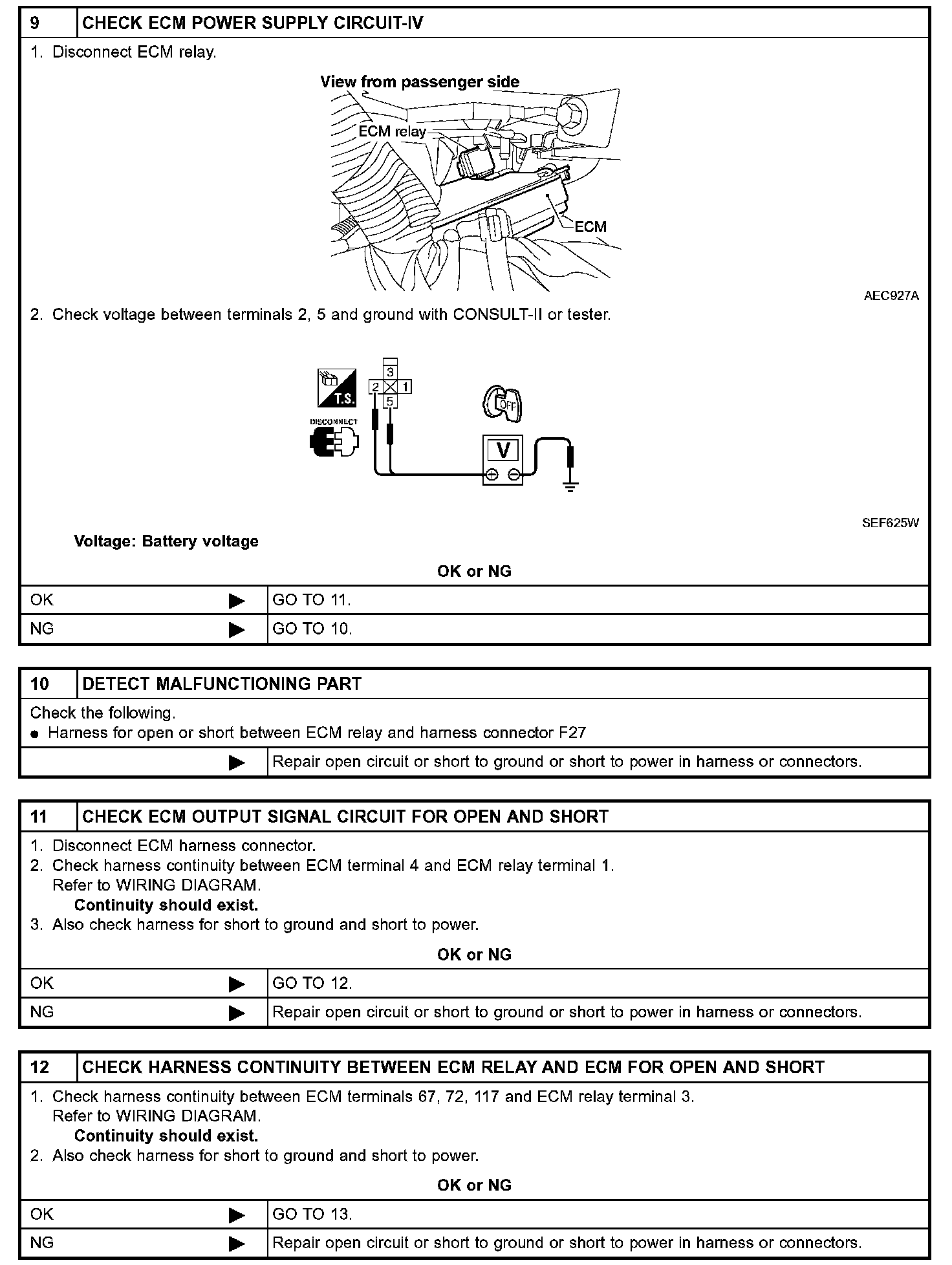

Step 9 - 12:

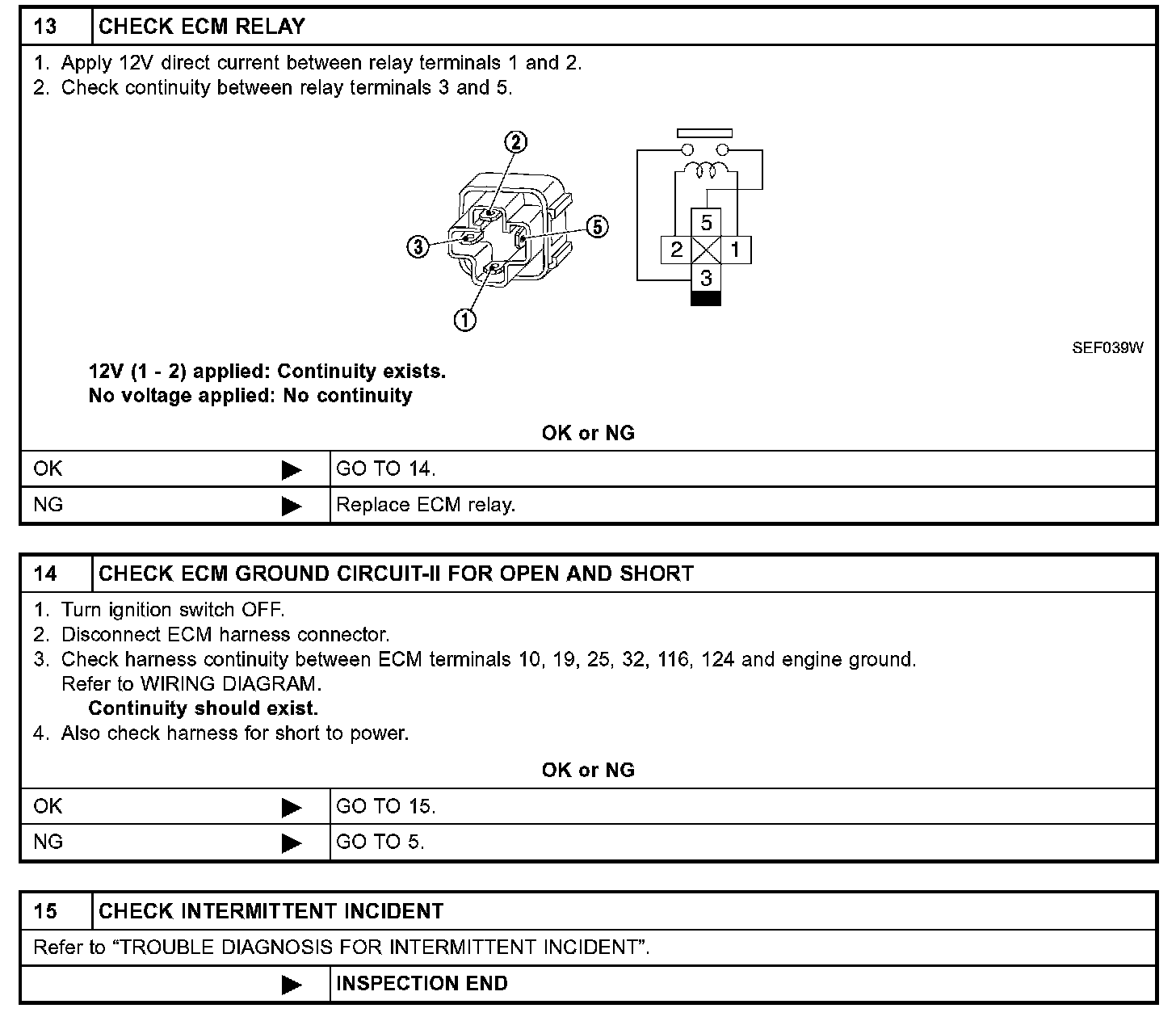

Step 13 - 15:

DIAGNOSTIC PROCEDURE
