Home >> Nissan-Datsun Truck >> 2002 >> Xterra XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Power Steering Pressure Switch >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

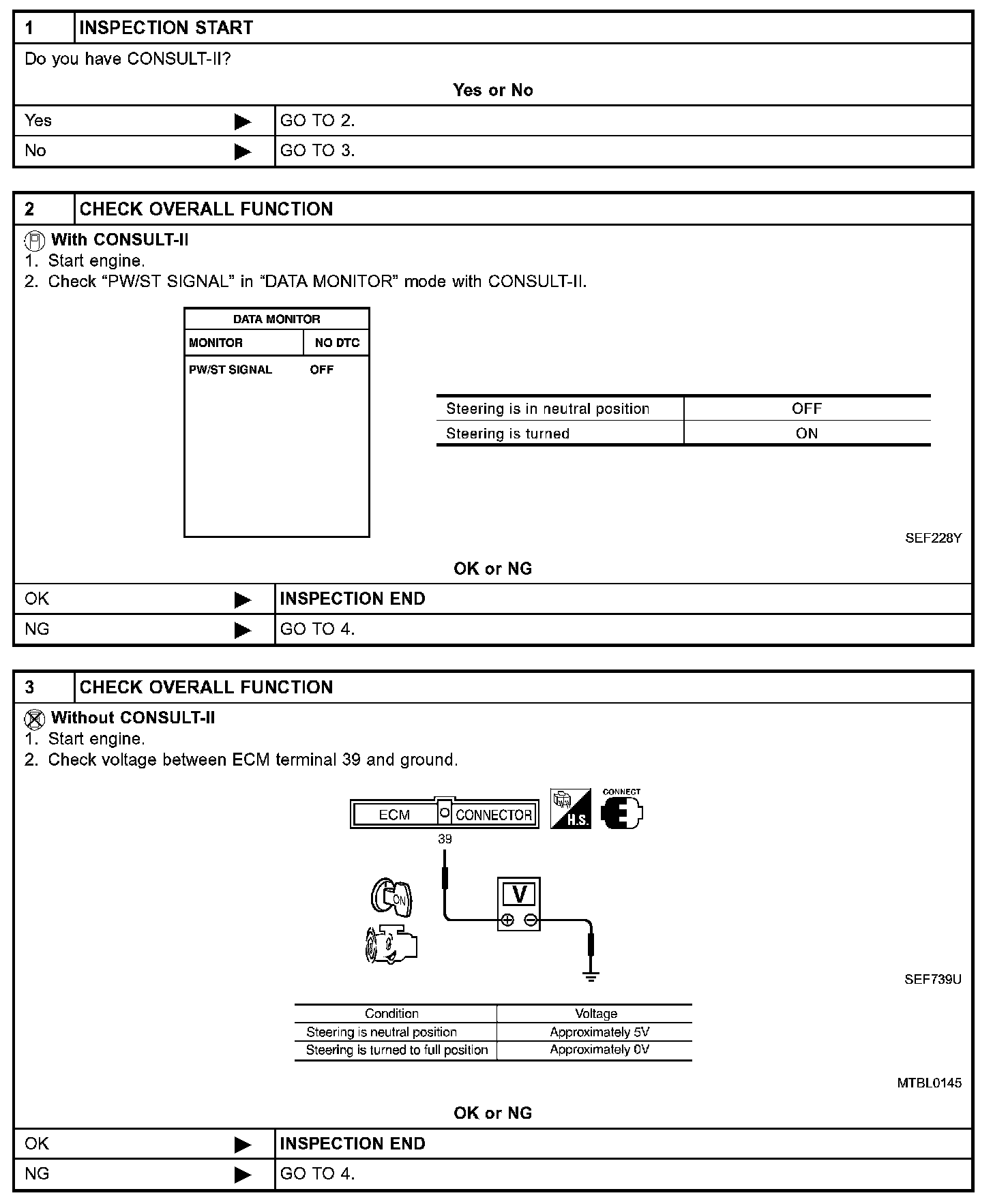

Step 1 - 3:

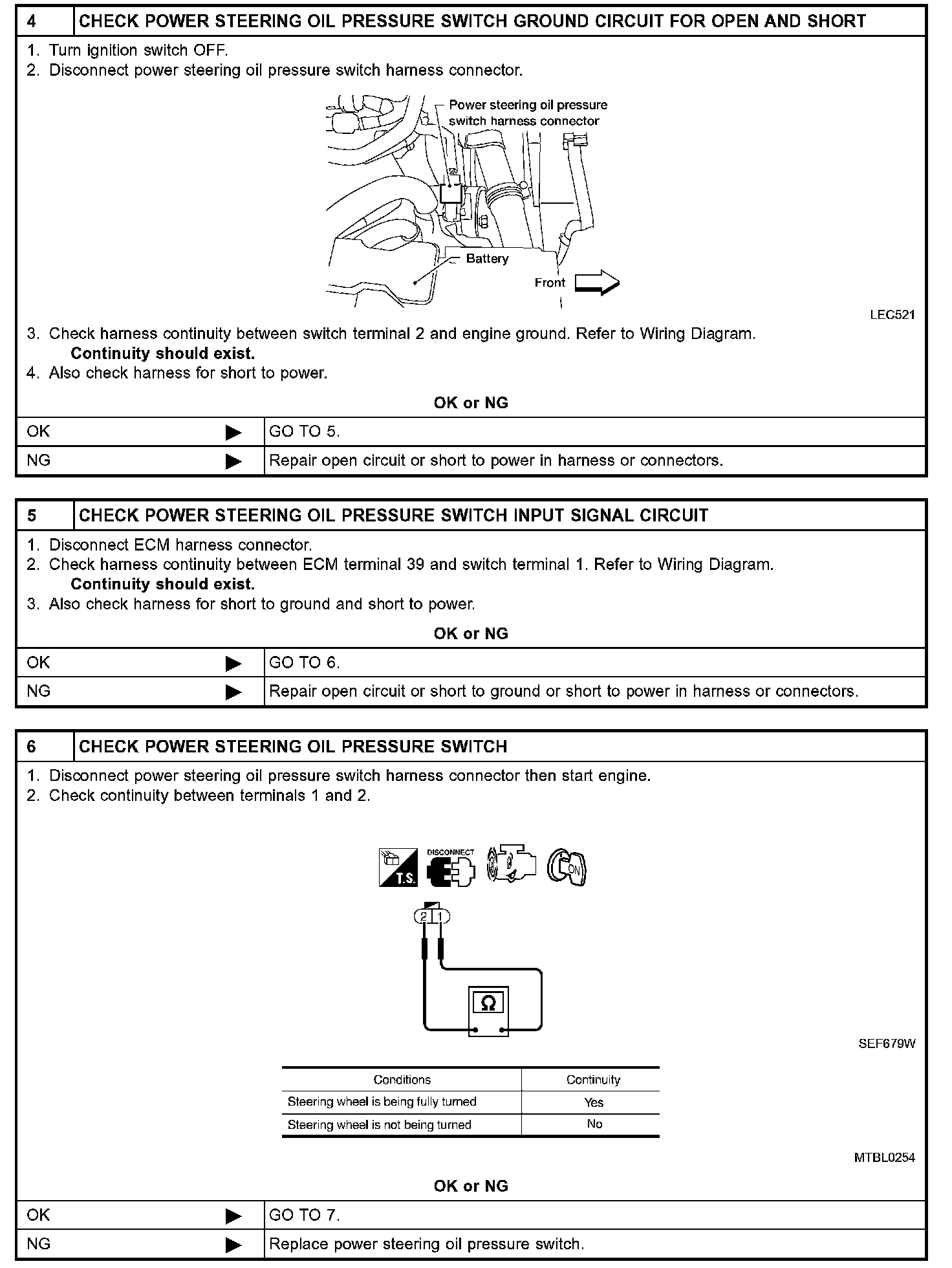

Step 4 - 6:

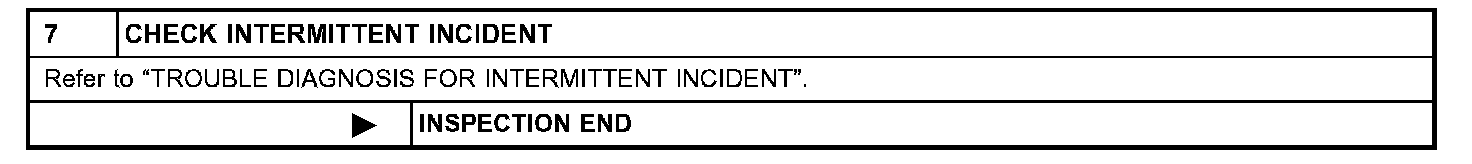

Step 7:
