Component Locations

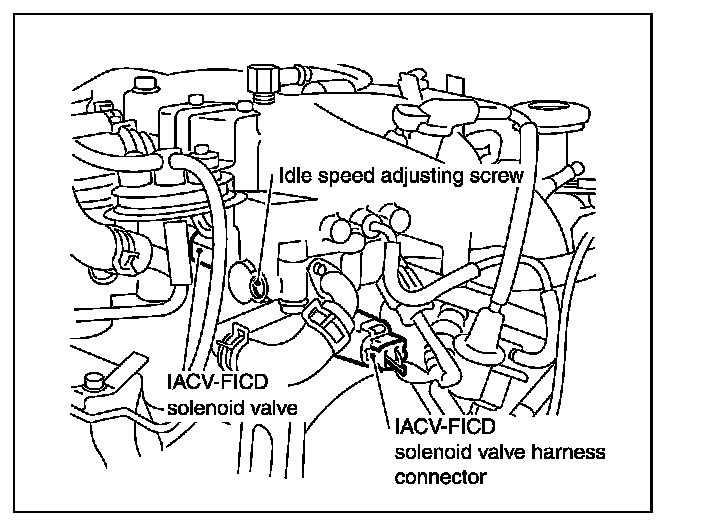

Idle Speed Adjustment Screw / IACV-FCID Solenoid Valve / IACV-FICD Solenoid Valve Harness Connector:
