Home >> Nissan-Datsun Truck >> 2002 >> Xterra XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Meters and Gauges >> Non-Trouble Code Procedures >> Fuel Level Sensor Unit Check

Fuel Level Sensor Unit Check

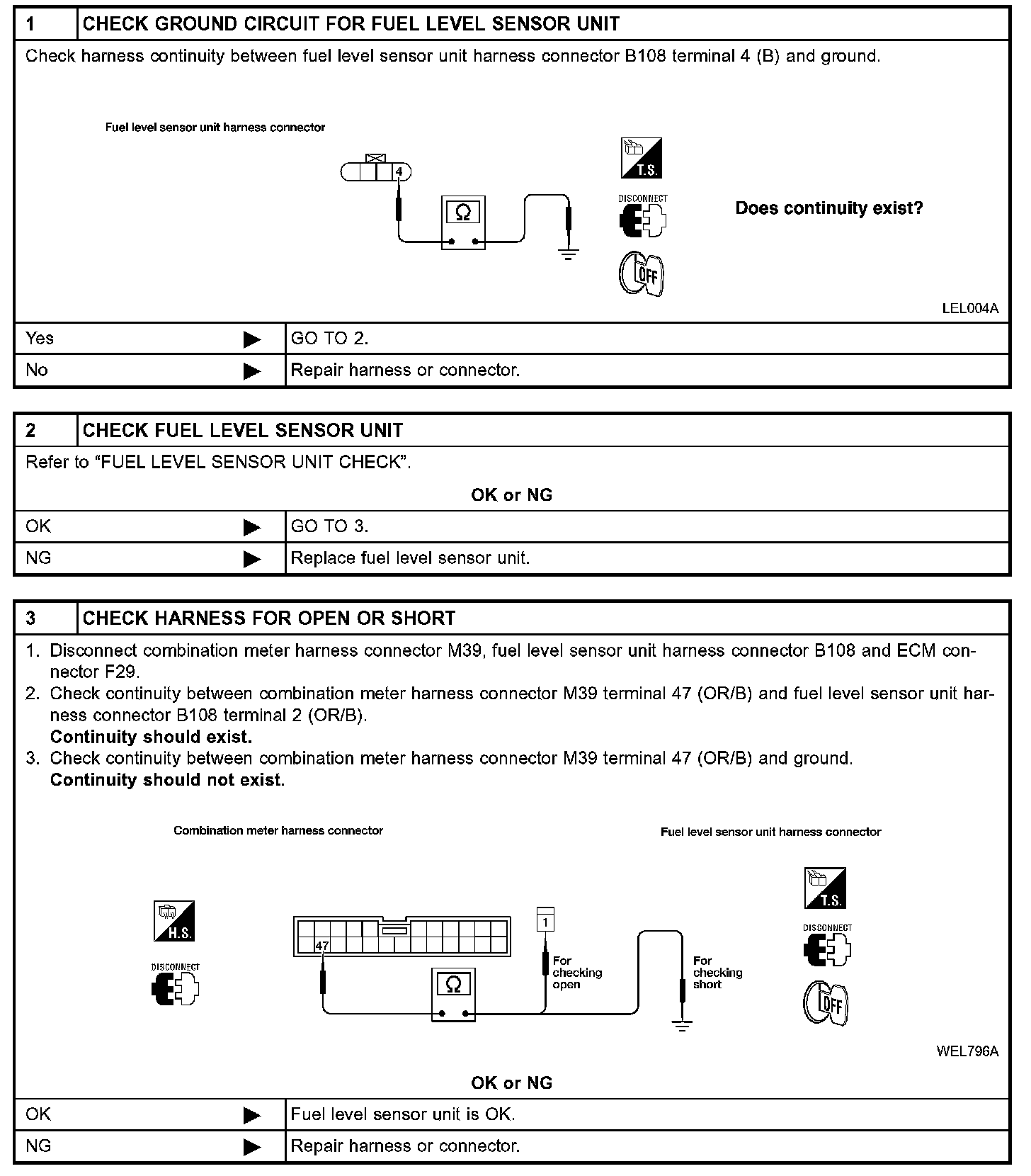

Step 1 - 3:
