Thermal Transmitter







THERMAL TRANSMITTER CHECK

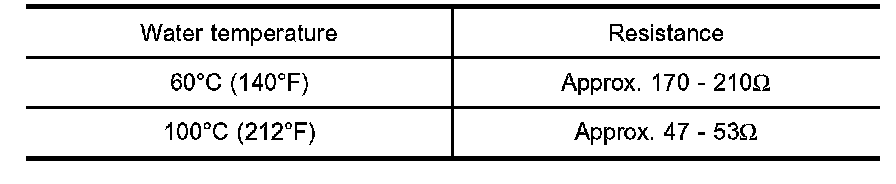

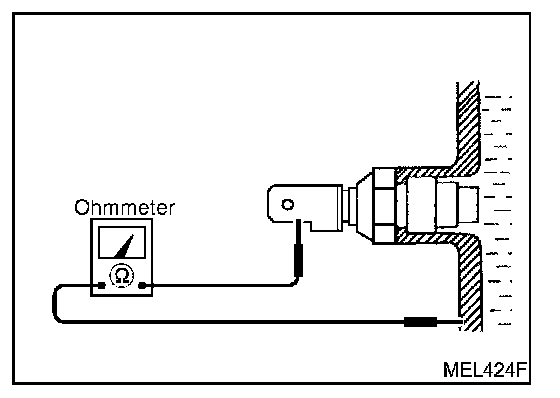

Check the resistance between thermal transmitter terminal 1 and body ground.
