Fuel Level Sensor Unit Check







FUEL LEVEL SENSOR UNIT CHECK
- For removal, refer to "Removal and Installation".

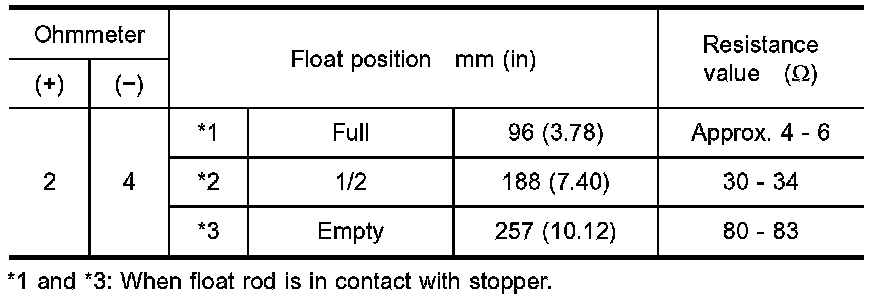

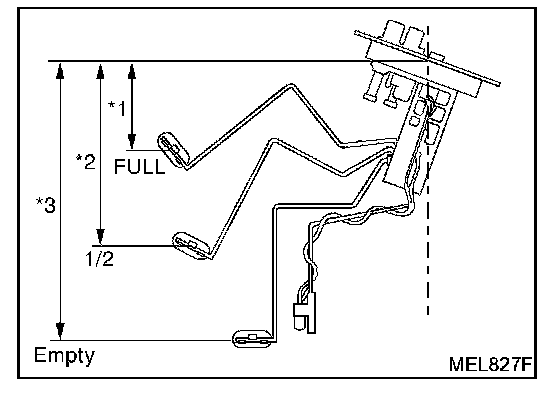

Check the resistance between fuel level sensor unit terminals 2 and 4.
