Home >> Nissan-Datsun Truck >> 2002 >> Xterra XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Non-Trouble Code Procedures >> Without Power Door Locks >> Diagnostic Procedure 4

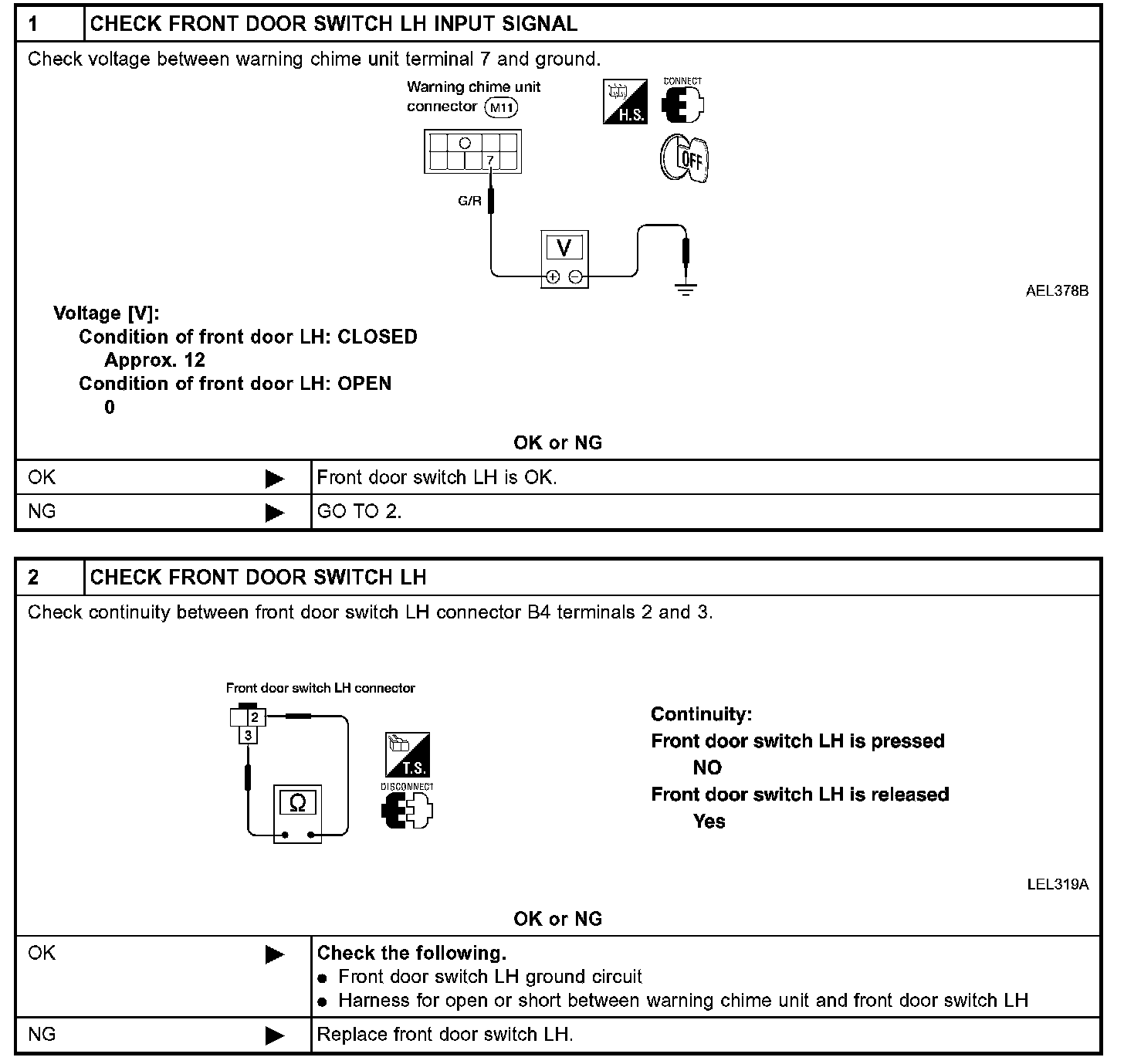

Diagnostic Procedure 4

Step 1 - 2 (Models Without Power Door Locks):
