Initial Inspection and Diagnostic Overview

POWER SUPPLY AND GROUND CIRCUIT CHECK
Main Power Supply Circuit Check

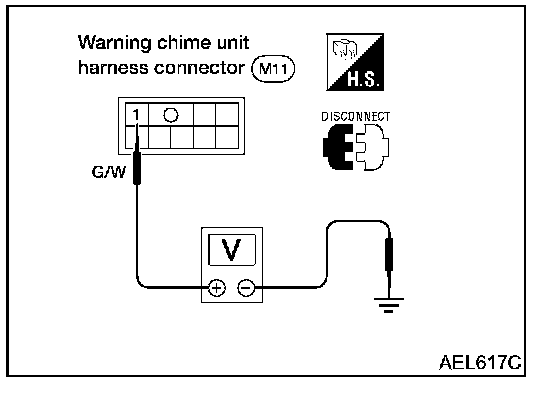

- Models without power door locks

If NG, check the following
- 15 A fuse (No. 39, located in fuse and fusible link box)
- Harness for open or short between warning chime unit and fuse.

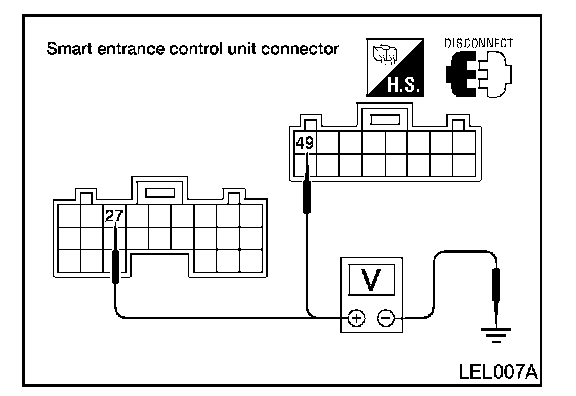

- Models with power door locks

If NG, check the following
- 7.5 A fuse [No. 28, located in fuse block (J/B)]
- 10 A fuse [No. 5, located in fuse block (J/B)]
- Harness for open or short between smart entrance control unit and fuse.

Ground Circuit Check







- Models without power door locks

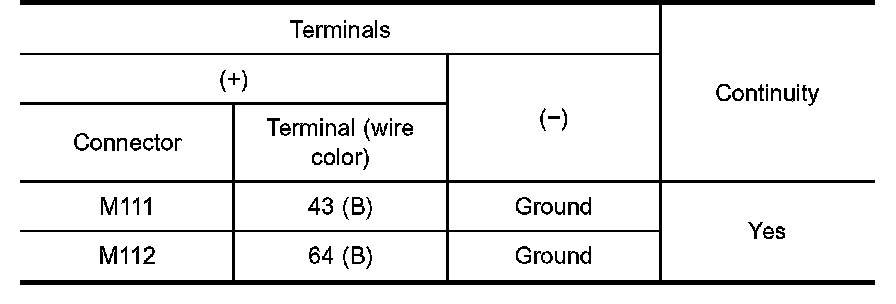

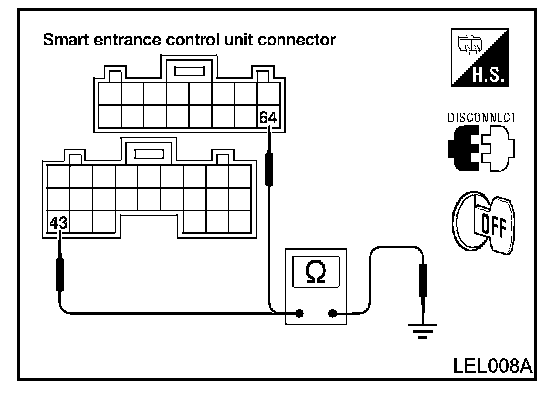

- Models with power door locks
