Oil Pump: Testing and Inspection

INSPECTION

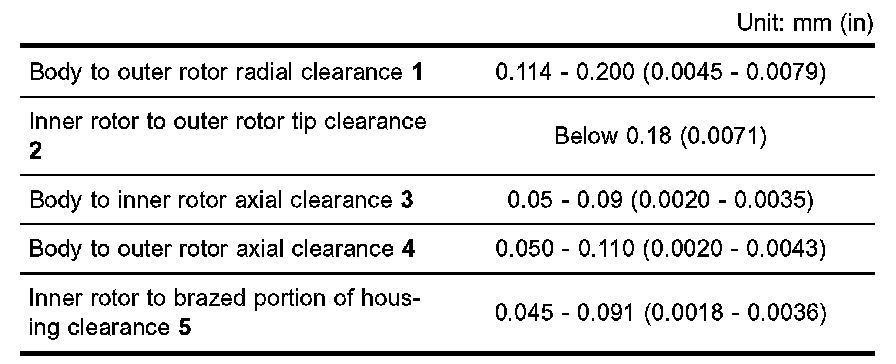

Using a feeler gauge, straightedge and micrometers, check clearances:

If the tip clearance (2) exceeds the limit, replace rotor set.

If body to rotor clearances (1, 3, 4, 5) exceed the limit, replace oil pump body assembly.
