Flywheel / Driveplate - Runout

FLYWHEEL/DRIVE PLATE RUNOUT

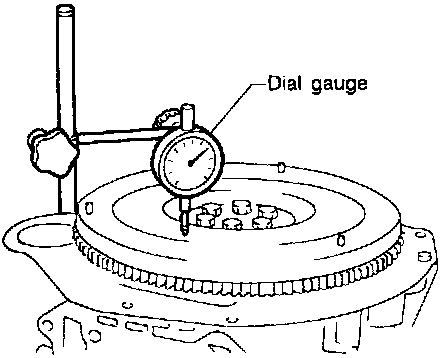

Runout (Total indicator reading):
Flywheel (M/T model) Less than 0.15 mm (0.0059 inch)
Drive plate (A/T model) Less than 0.15 mm (0.0059 inch)

CAUTION: Be careful not to damage the ring gear teeth.
Check the drive plate for deformation or cracks.
Do not allow any magnetic materials to contact the ring gear teeth.
Do not surface flywheel or drive plate. Replace as necessary.
