Cylinder Block - Distortion

CYLINDER BLOCK DISTORTION AND WEAR

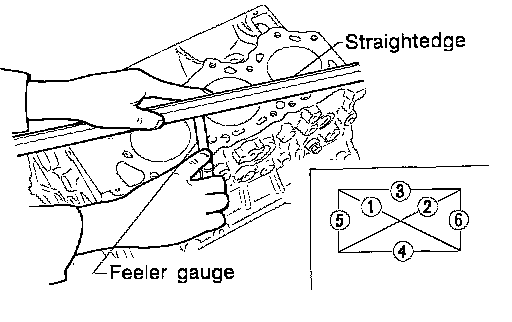

1. Clean upper face of cylinder block and measure the distortion.

Limit: 0.10 mm (0.0039 inch)

2. If out of specification, resurface it. The resurfacing limit is determined by cylinder head resurfacing in engine.

Amount of cylinder head resurfacing is "A".
Amount of cylinder block resurfacing is "B".
The maximum limit is as follows: A + B = 0.2 mm (0.008 inch)
Nominal cylinder block height from crankshaft center: 227.60 - 227.70 mm (8.9606 - 8.9645 inch)

3. If necessary, replace cylinder block.
