Connecting Rod - Bend & Torsion

CONNECTING ROD BEND AND TORSION

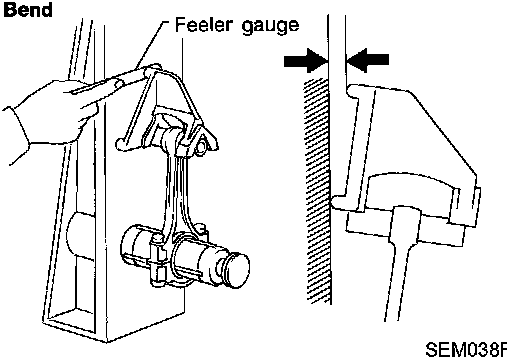

Bend: Limit 0.15 mm (0.0059 inch) per 100 mm (3.94 inch) length

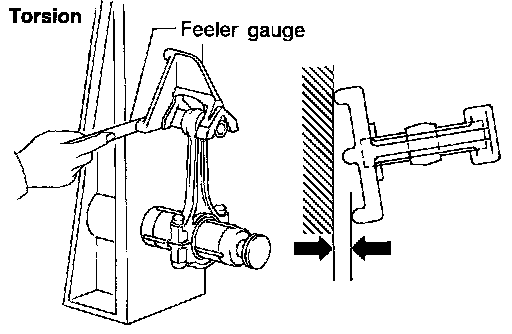

Torsion: Limit 0.30 mm (0.0118 inch) per 100 mm (3.94 inch) length

If it exceeds the limit, replace connecting rod assembly.
