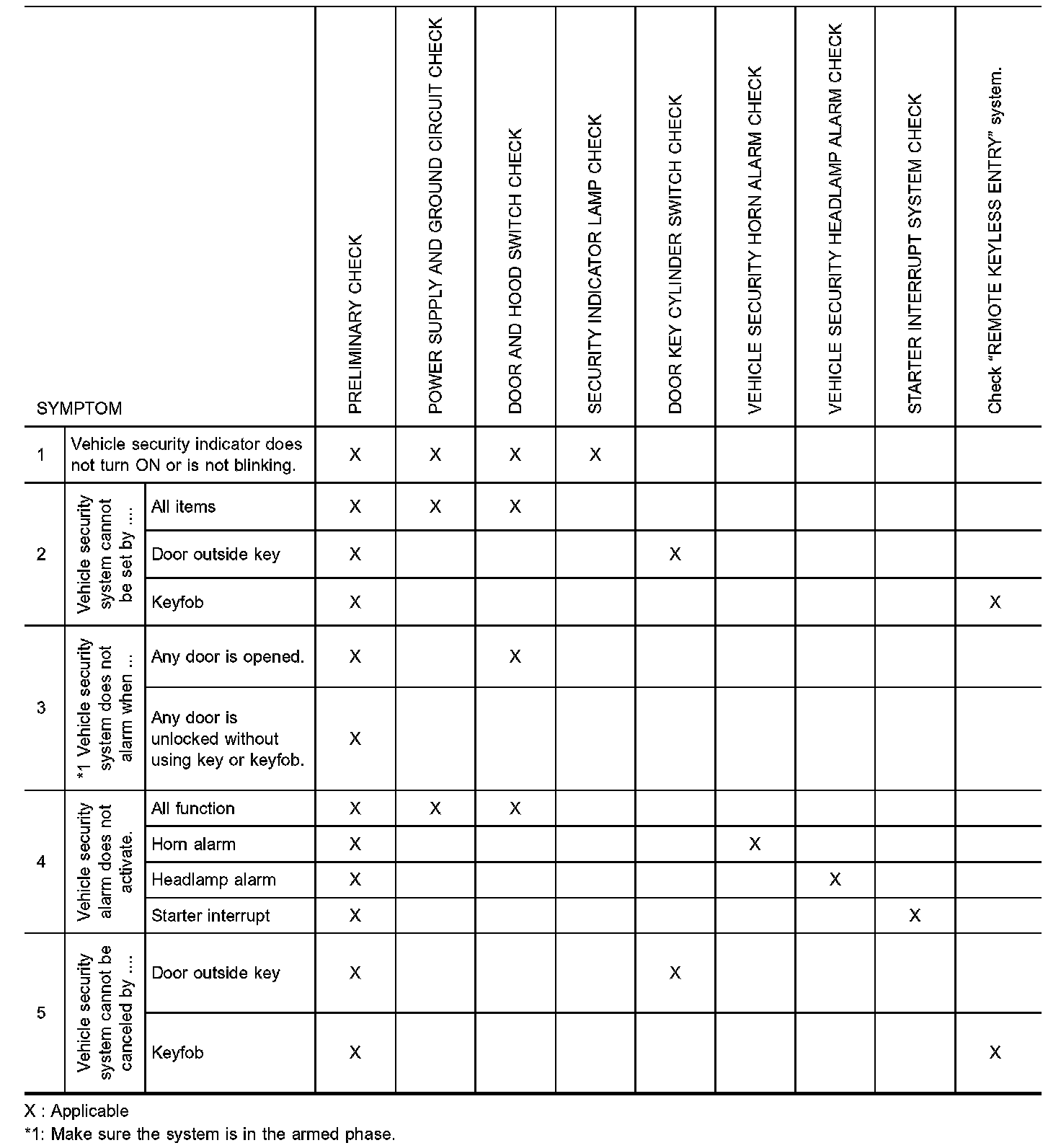

Diagnosis By Symptom
Before starting trouble diagnoses above, refer to "PRELIMINARY CHECK", EL-230. Symptom numbers in the symptom chart correspond with those of "PRELIMINARY CHECK".
