Home >> Nissan-Datsun Truck >> 2002 >> Xterra XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Related Tests, Information and Procedures >> Automatic Air Conditioner >> Insufficient Cooling (Performance Test) >> Performance Tests

Performance Tests

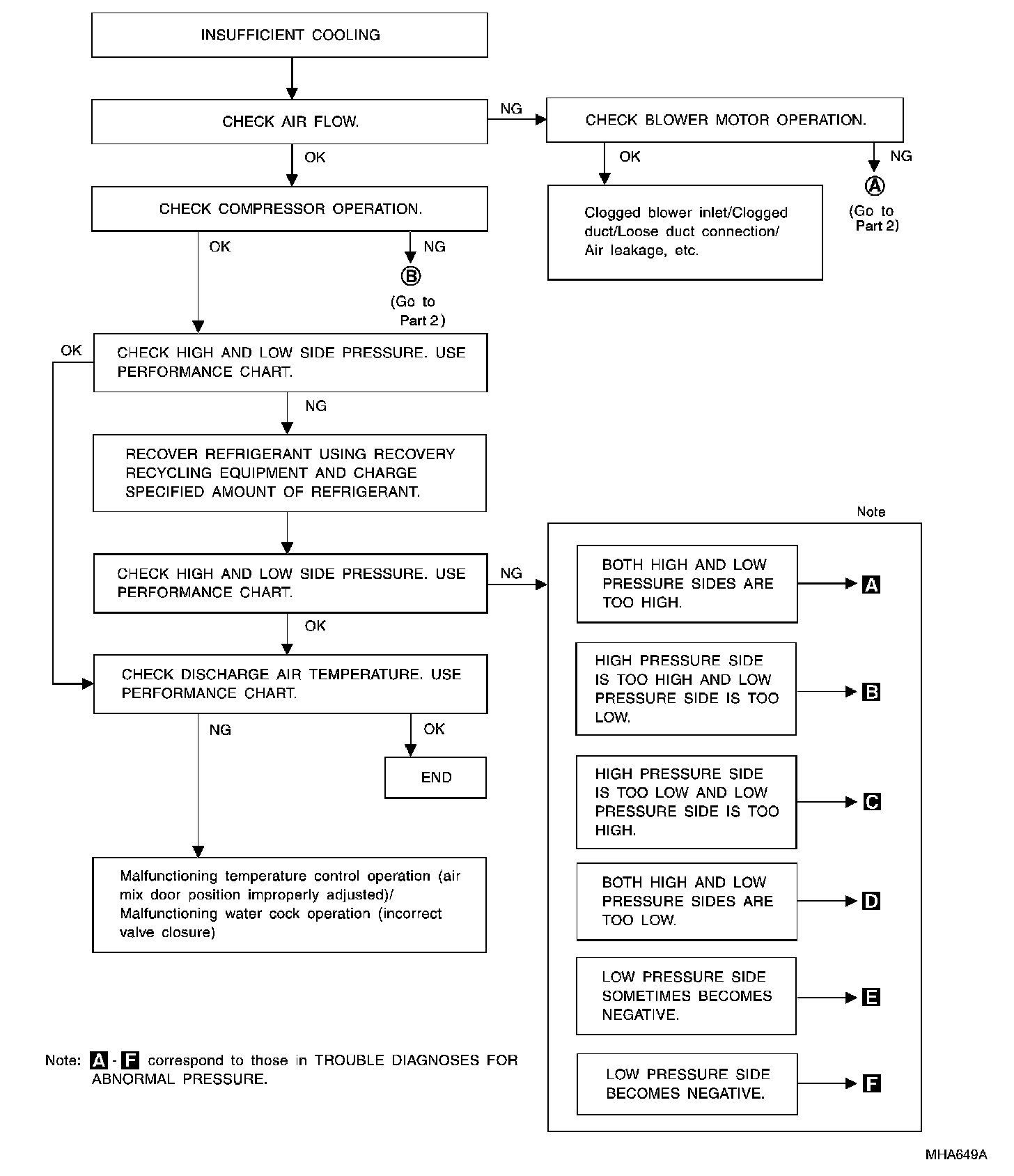

Performance Test Diagnosis Part 1:

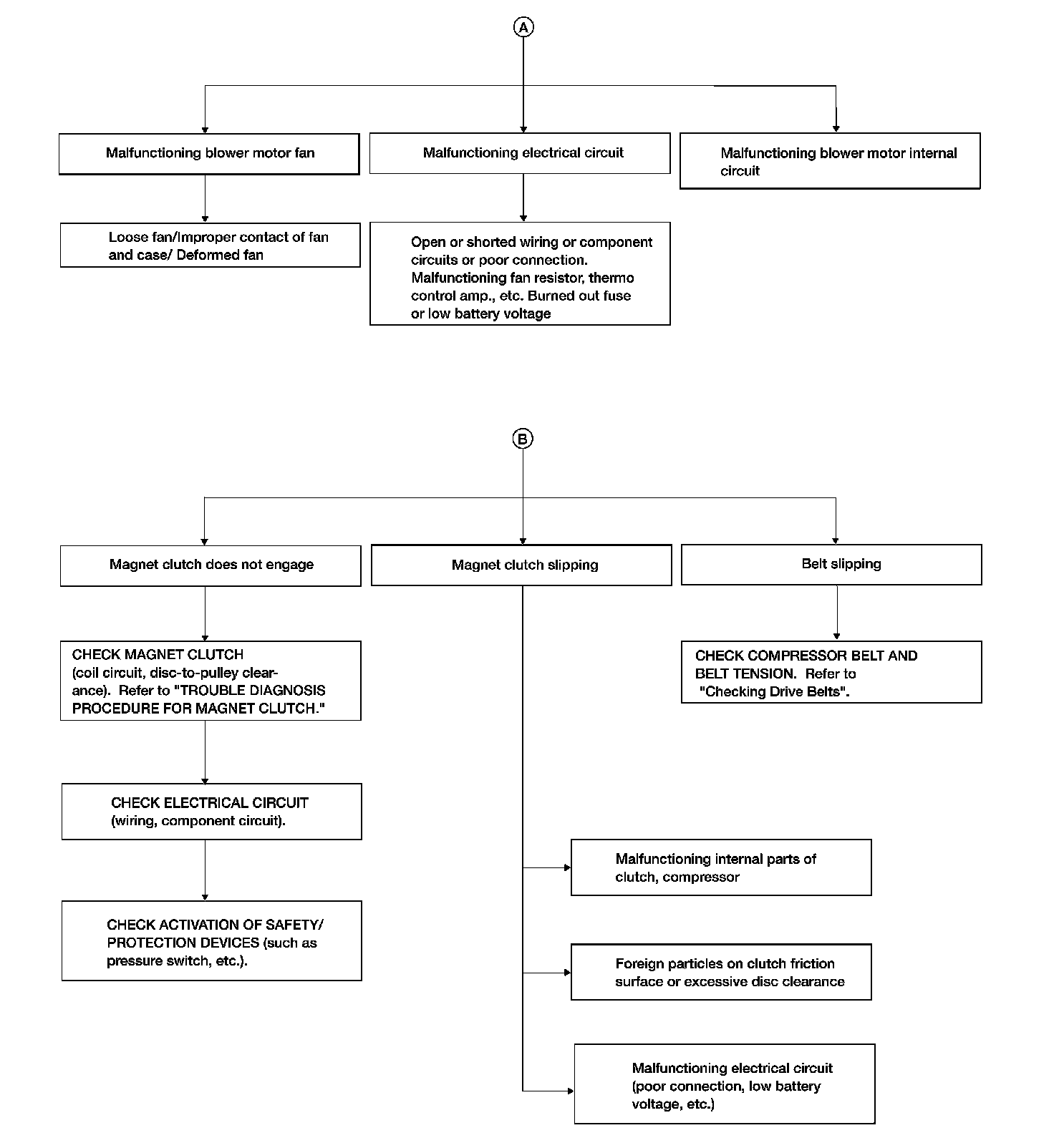

Performance Test Diagnosis Part 2:
