P1705
DTC P1705 THROTTLE POSITION SENSORDescription
- Throttle position sensor
The throttle position sensor detects the throttle valve position Q] and sends a signal to the TCM.
- Throttle position switch
Consists of a wide open throttle position switch and a closed throttle position switch. The wide open position switch sends a signal to the TCM when the throttle valve is open at least 1/2 of the full throttle position. The closed throttle position switch sends a signal to the TCM when the throttle valve is fully closed.

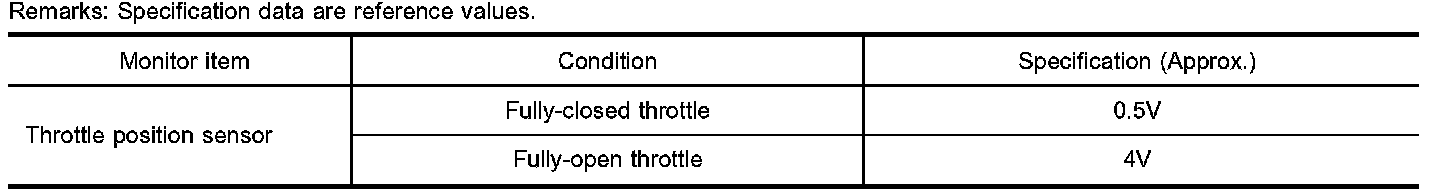

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE

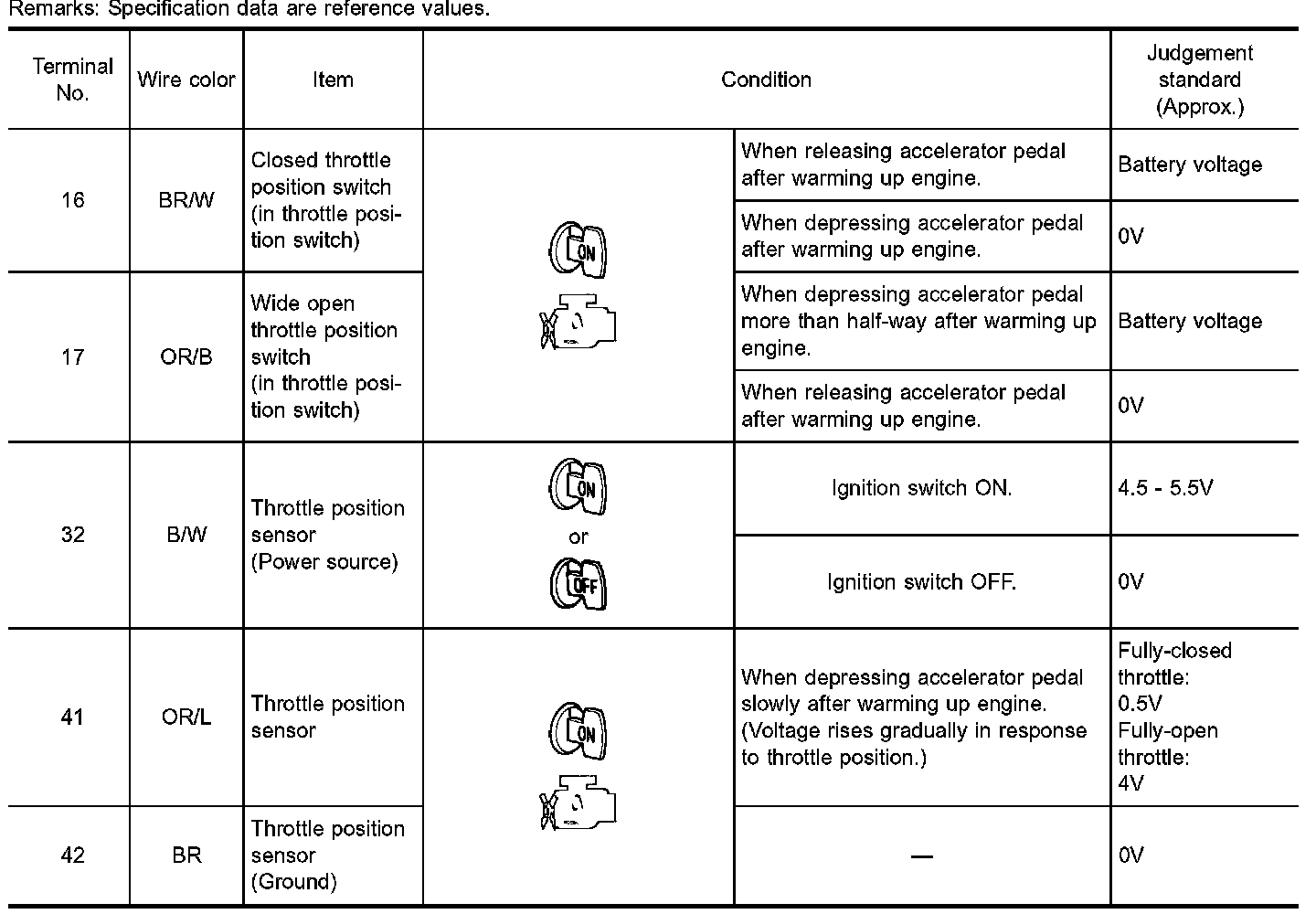

TCM TERMINALS AND REFERENCE VALUE

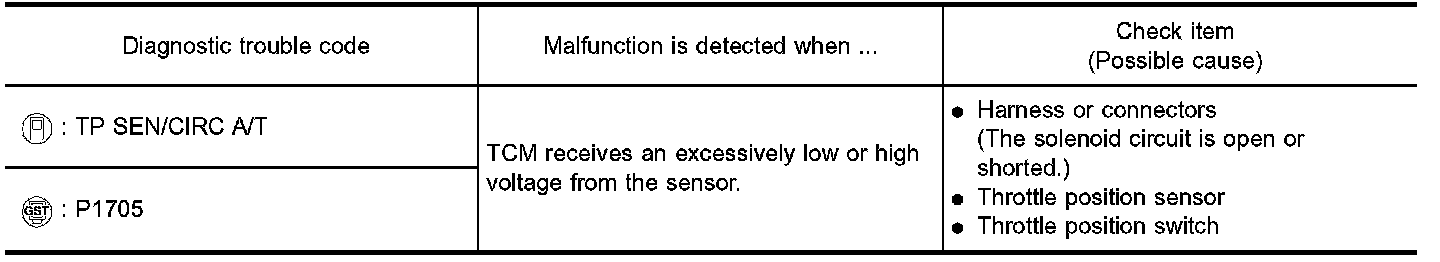

ON BOARD DIAGNOSIS LOGIC
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
CAUTION: Always drive vehicle at a safe speed.
NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II

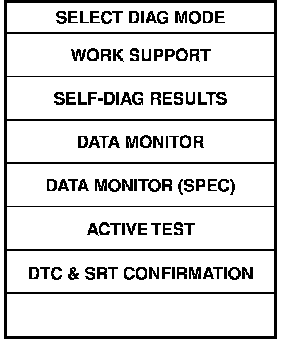

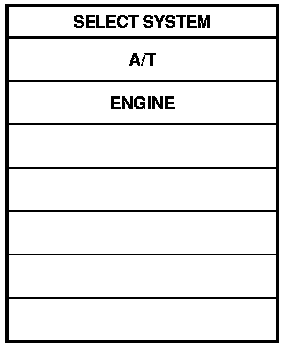

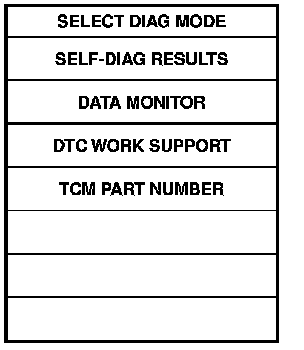

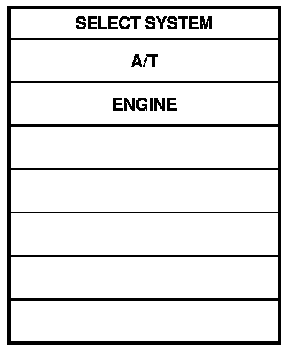

1) Turn ignition switch ON and select "DATA MONITOR" mode for "A/T" with CONSULT-II.

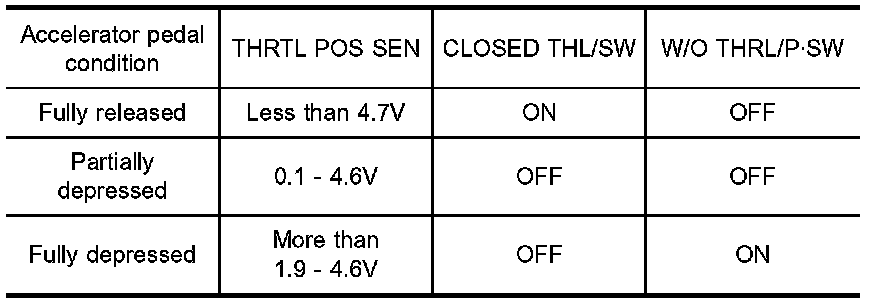

2) Apply vacuum to the throttle opener, then check the following. Refer to step 1 and step 2 of "Preparation", "TCM SELF-DIAGNOSIS PROCEDURE (NO TOOLS)".
If the check result is NG, go to "DIAGNOSTIC PROCEDURE", AT-183.
If the check result is OK, go to following step.
3) Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
4) Start engine and maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: Approximately 3 Volts or less
Selector lever: D position (O/D ON)
If the check result is NO, go to "DIAGNOSTIC PROCEDURE AT-1 83.
If the check result is OK, go to following step.
5) Maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more
Accelerator pedal: Wide open throttle
Selector lever: D position (O/D ON)
With GST
Follow the procedure "With CONSULT-II".

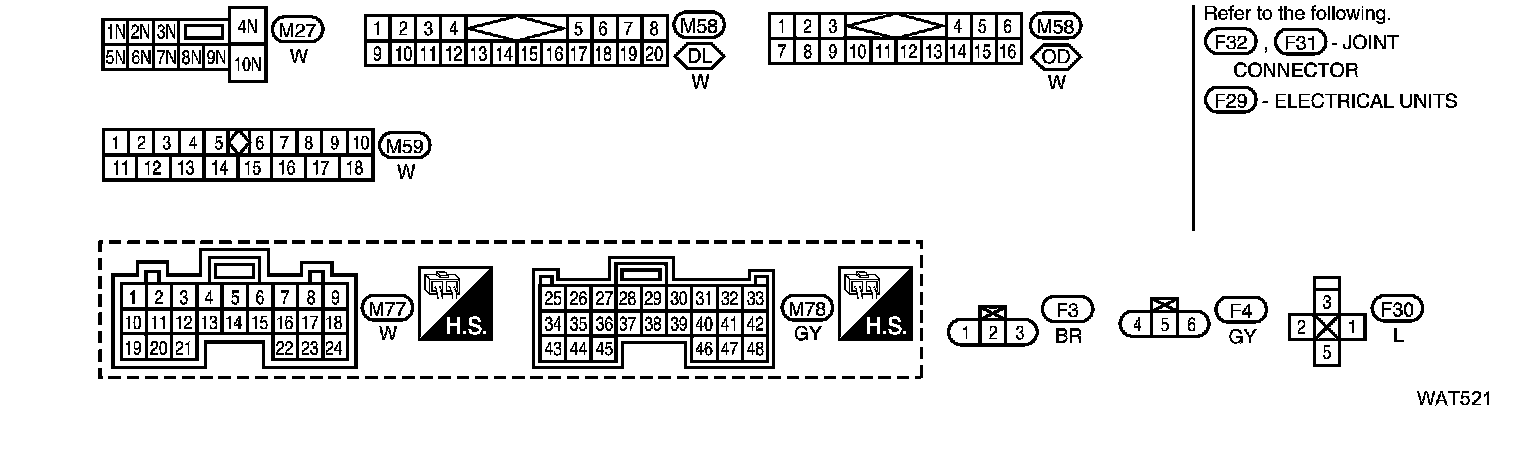

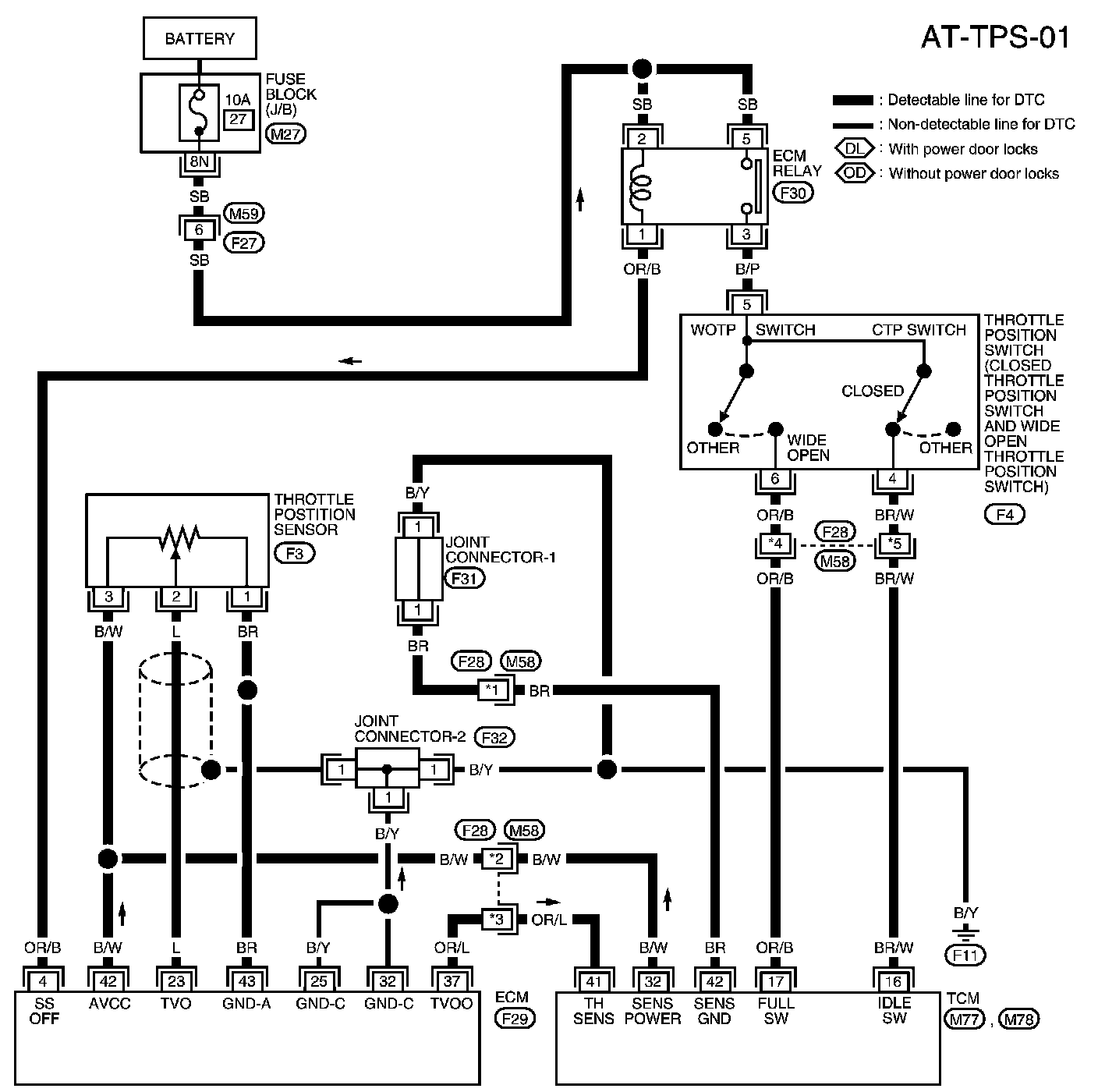

Wiring Diagram-AT-TPS
Diagnostic Procedure

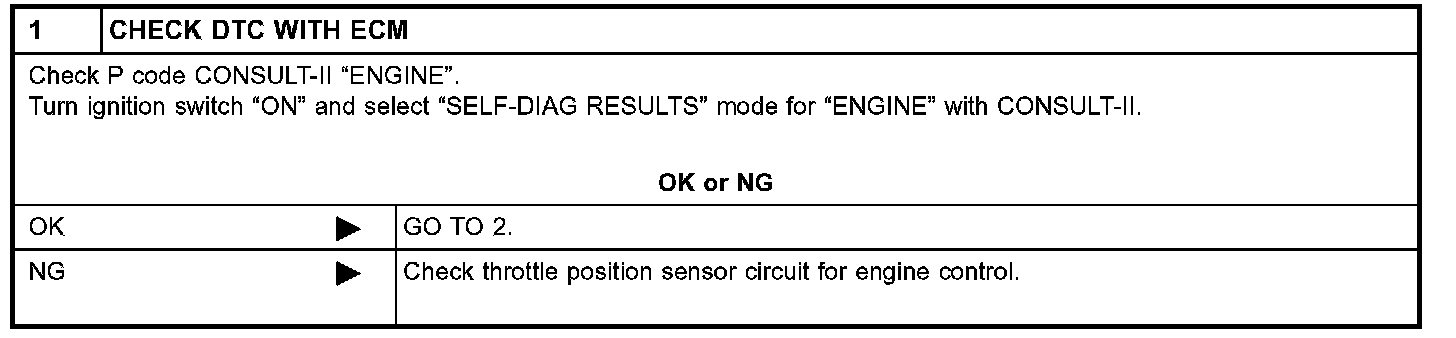

1. Check DTC With ECM
2. Check Input Signal

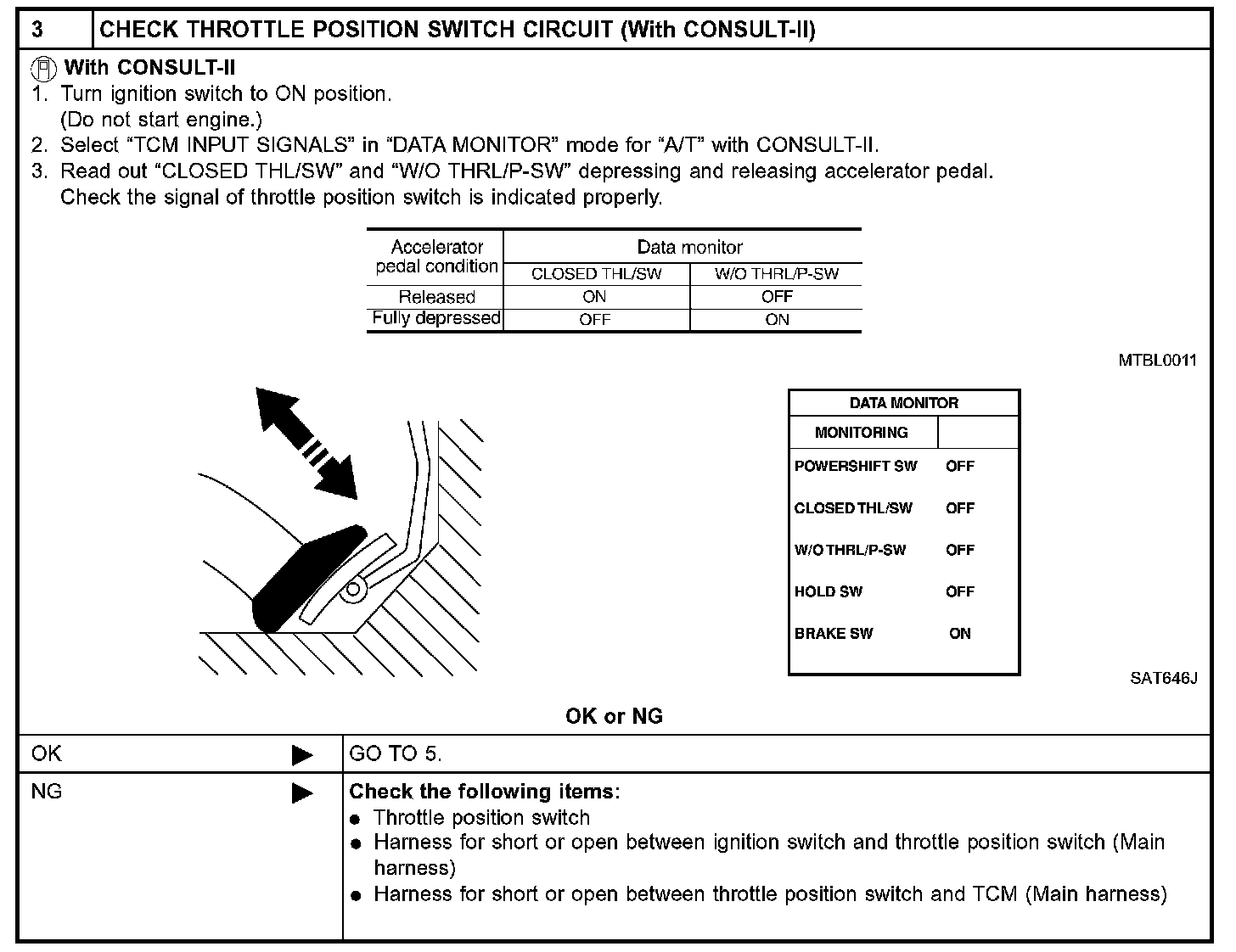

3. Check Throttle Position Switch Circuit (With CONSULT-II)

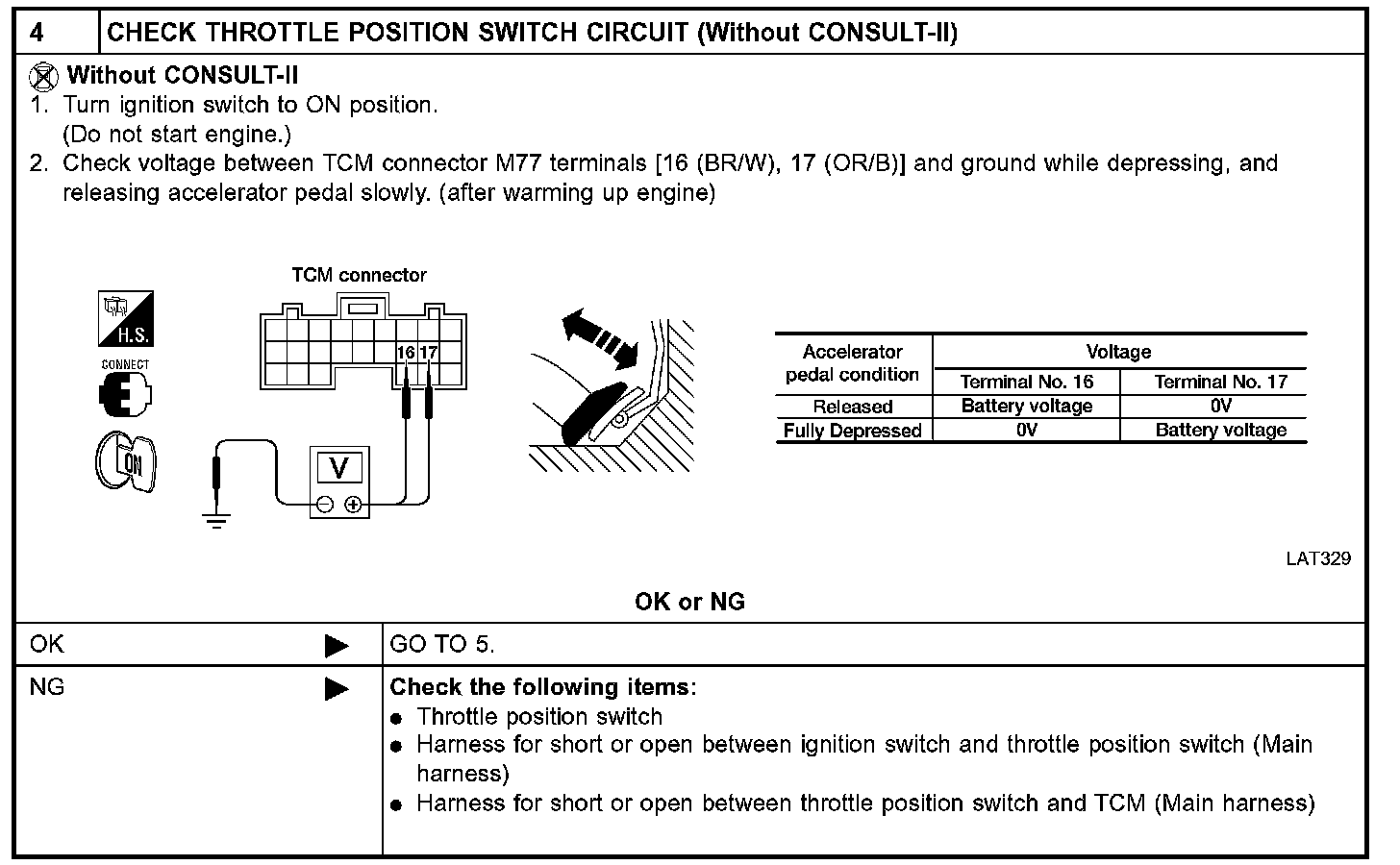

4. Check Throttle Position Switch Circuit (Without CONSULT-II)

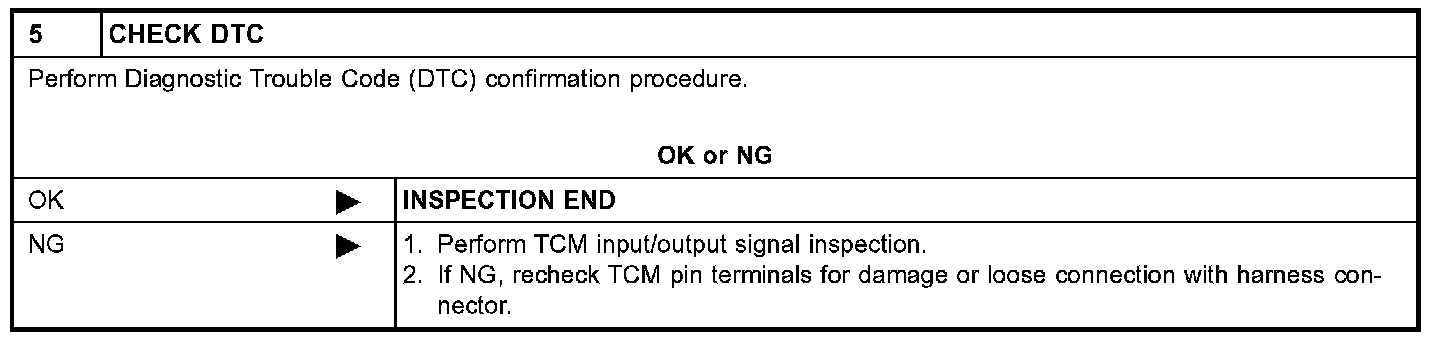

5. Check DTC
Component Inspection

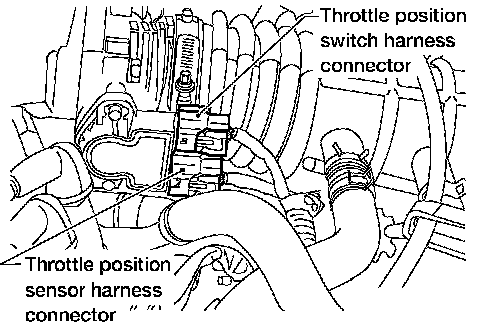

THROTTLE POSITION SWITCH

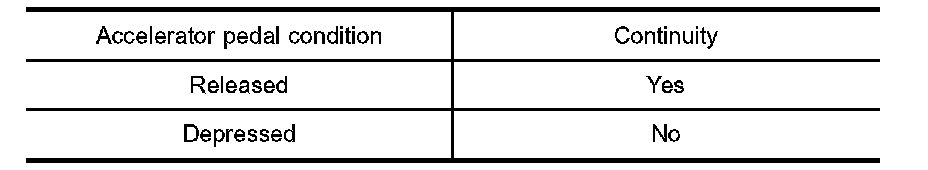

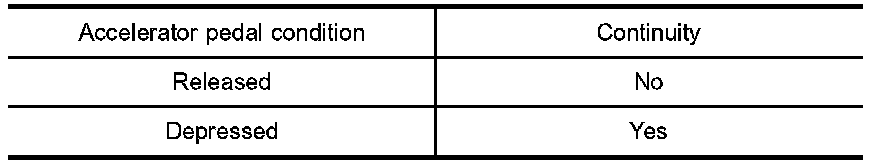

Closed Throttle Position Switch (Idle position)

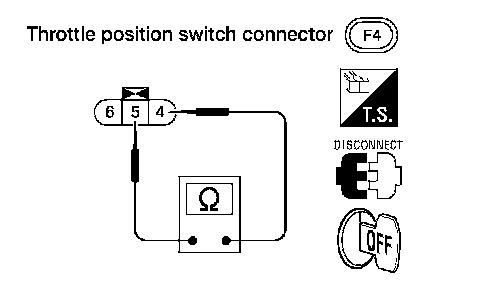

- Check continuity between terminals 4 and 5.NGAT020550101
- To adjust closed throttle position switch, refer to Powertrain Management; Computers and Control Systems.

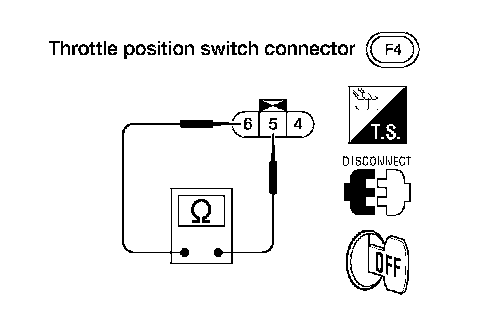

Wide Open Throttle Position Switch
- Check continuity between terminals 5 and 6.
