P0750

DTC P0750: SHIFT SOLENOID VALVE A
Description

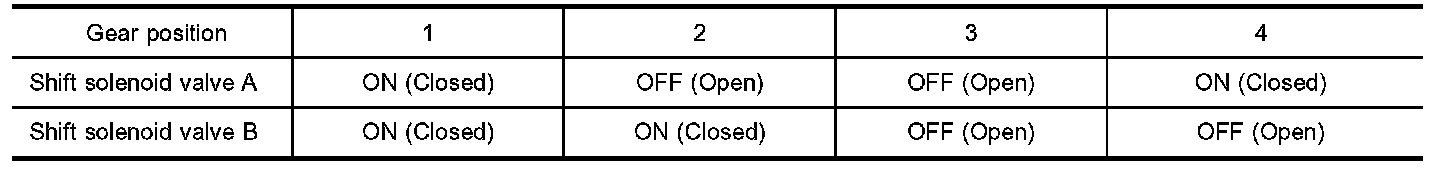

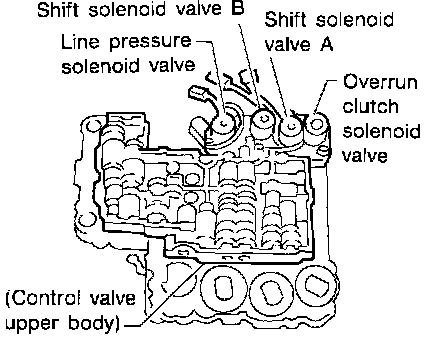

Shift solenoid valves A and B are turned ON or OFF by the TCM in response to signals sent from the PNP switch, vehicle speed and throttle position sensors. Gears will then be shifted to the optimum position.

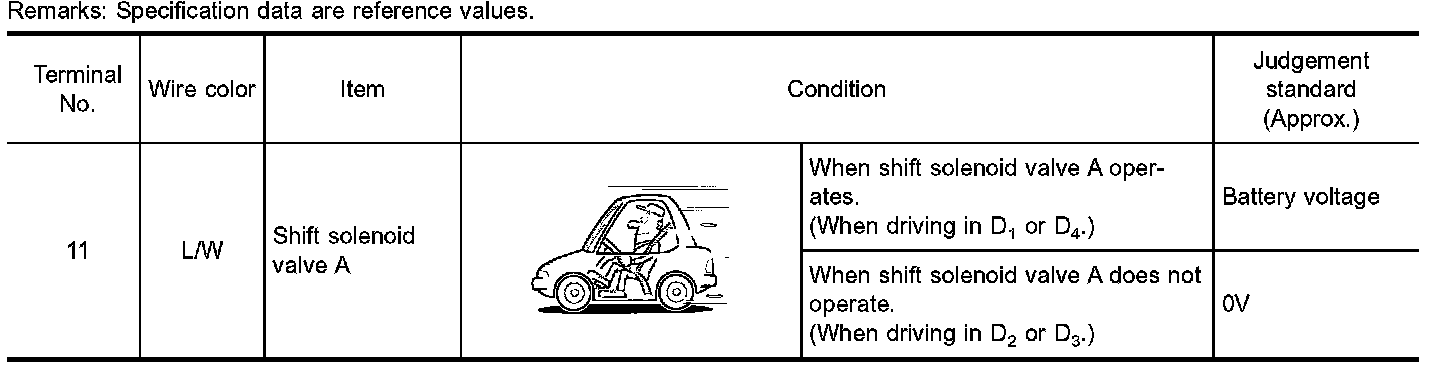

TCM TERMINALS AND REFERENCE VALUE

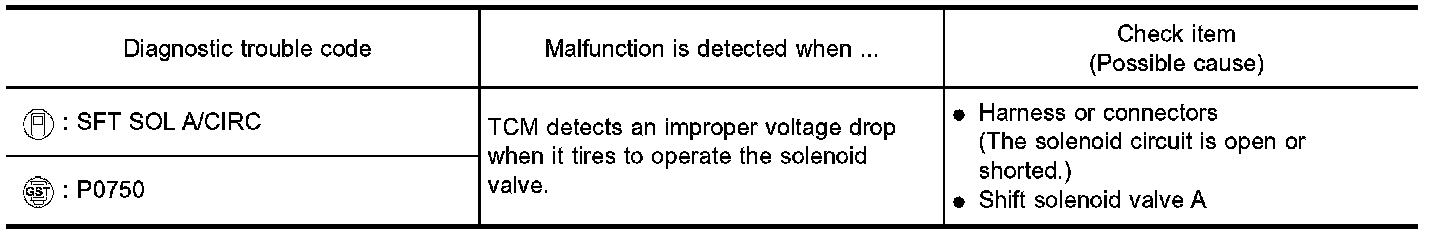

ON BOARD DIAGNOSIS LOGIC

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

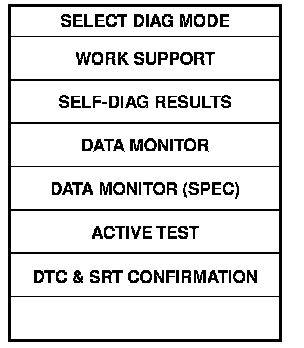

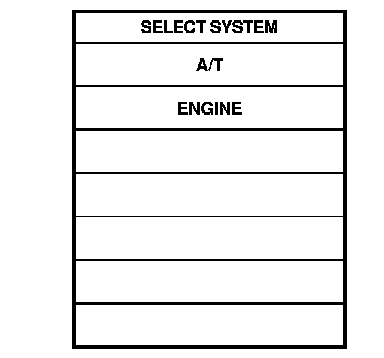

1) Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
2) Start engine.





3) Drive vehicle in D position and allow the transmission to shift 1 - 2 ("GEAR").

With GST
Follow the procedure "With CONSULT-II".

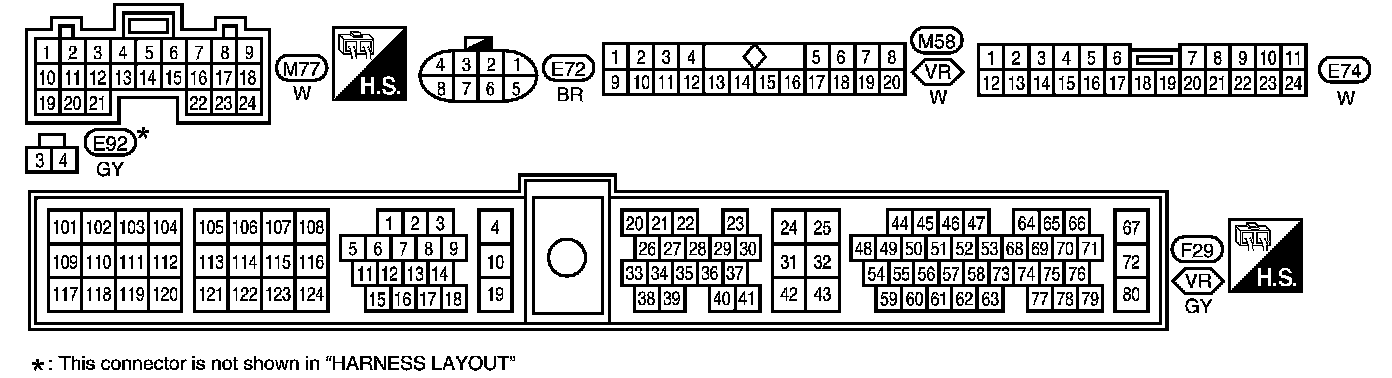

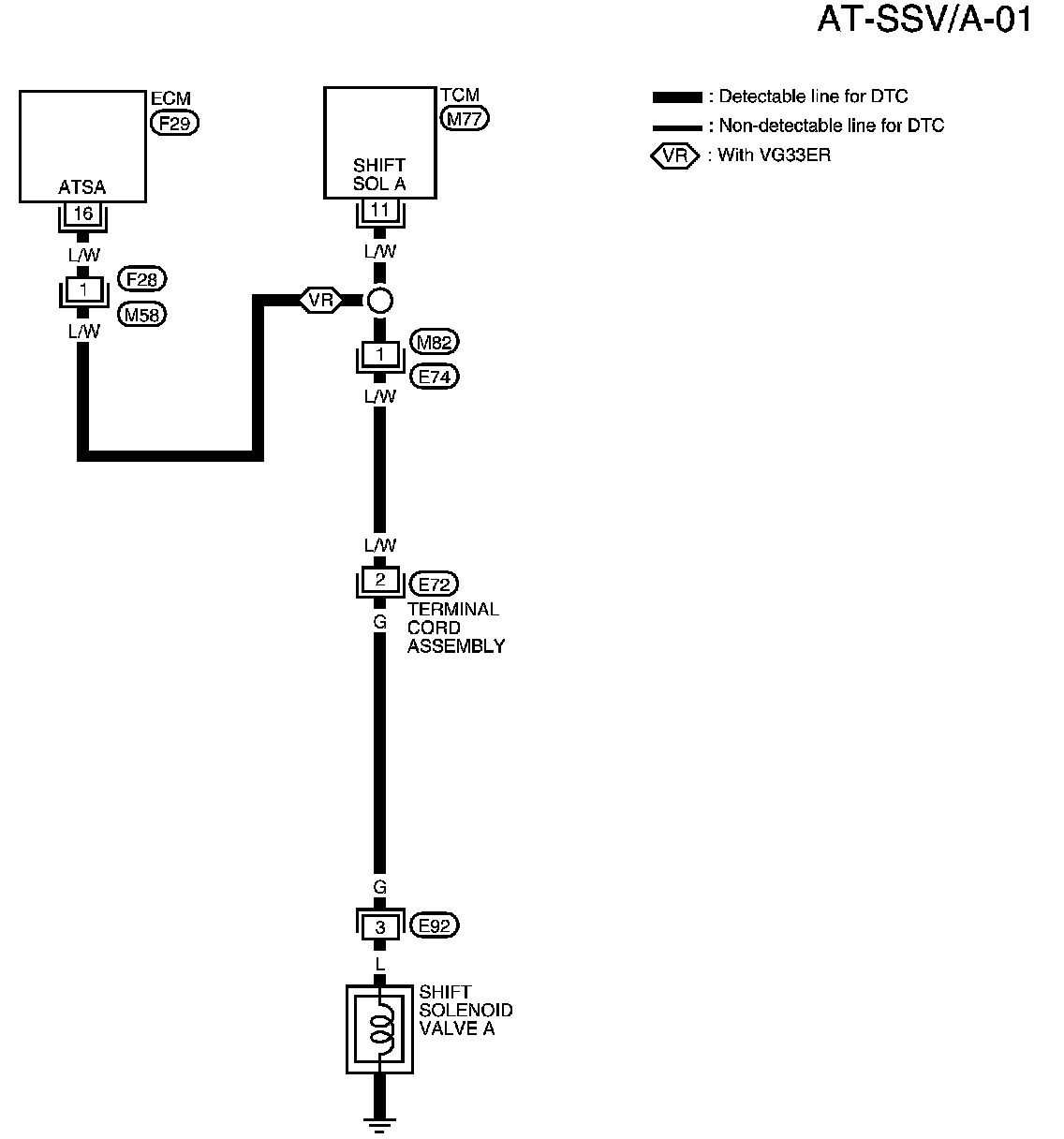

Wiring Diagram-AT-SSV/A

Diagnostic Procedure

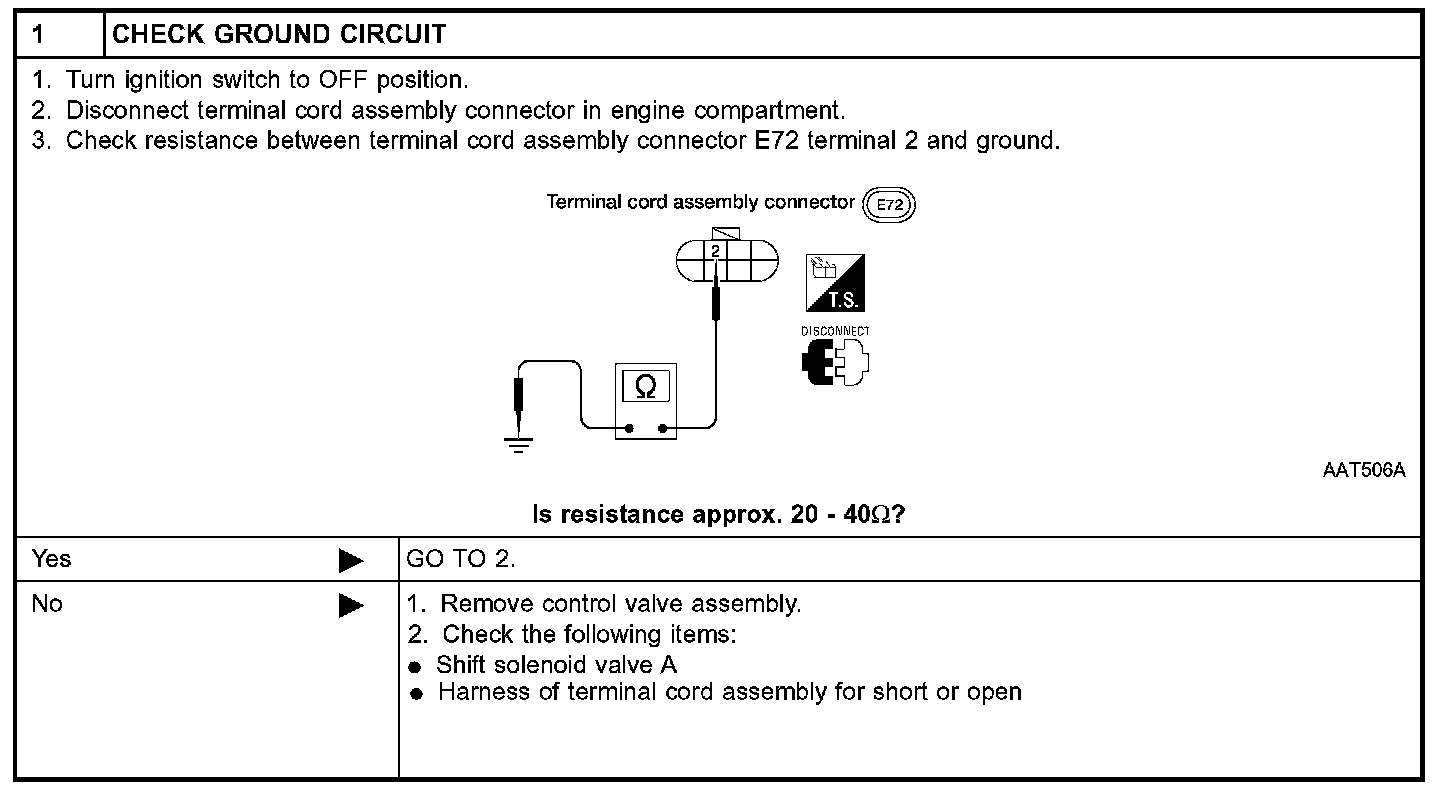

1. Check Ground Circuit

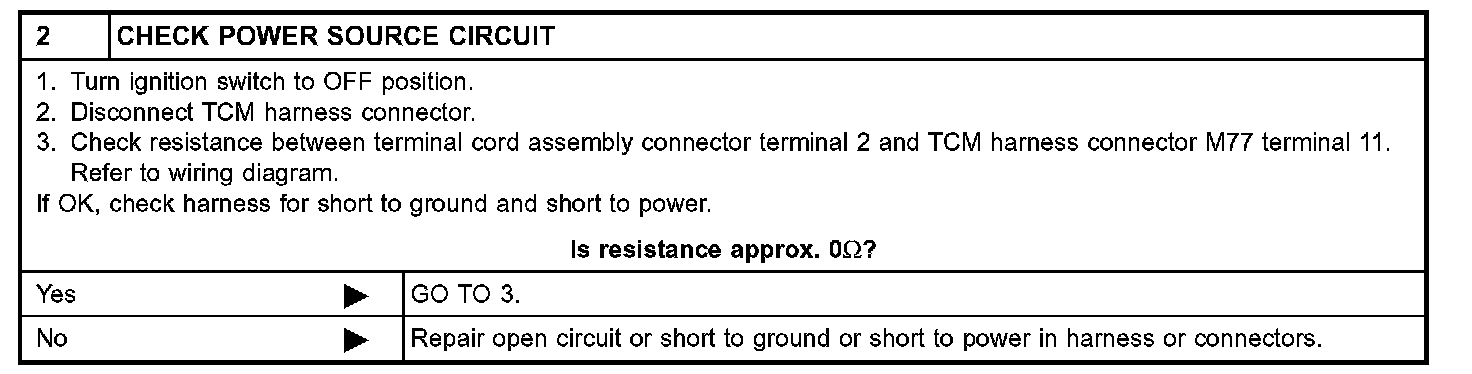

2. Check Power Source Circuit

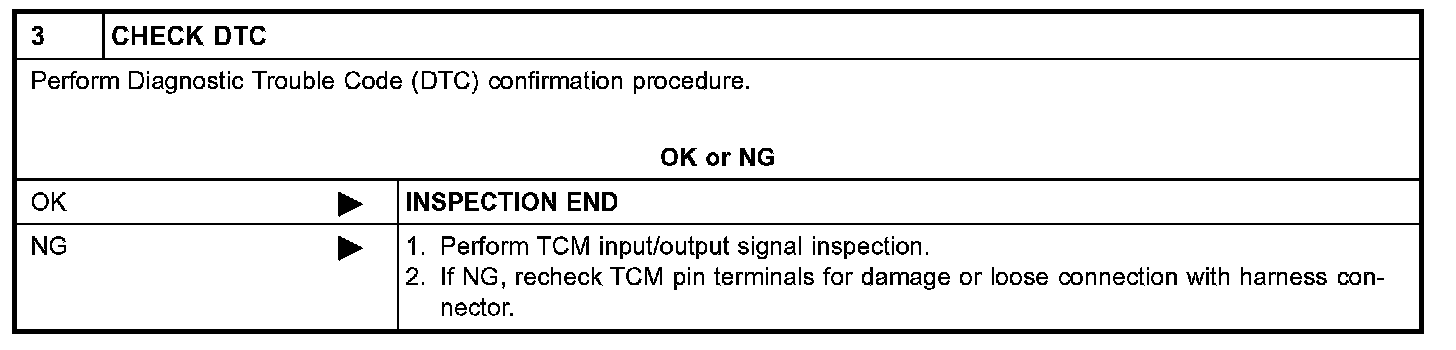

3. Check DTC

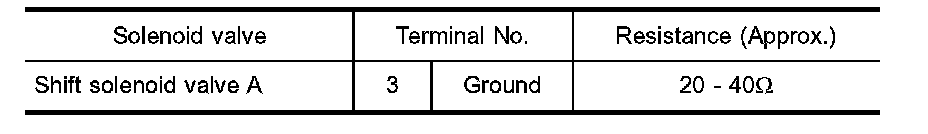

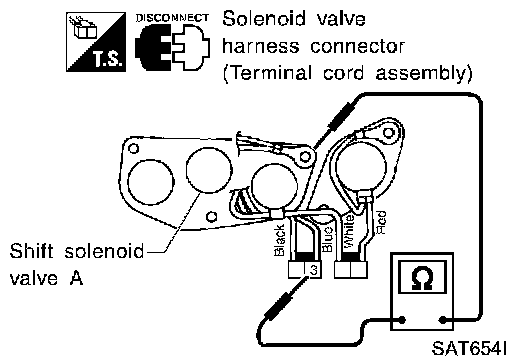

Resistance Check








- Check resistance between terminal 3 and ground.

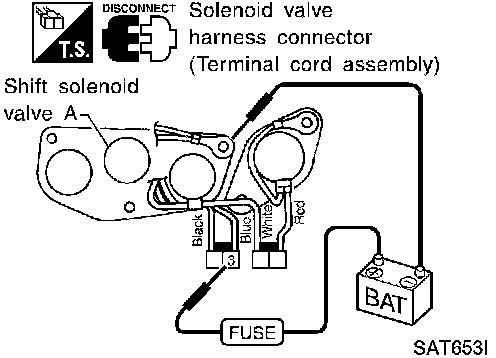

Operation Check





- Check solenoid valve by listening for its operating sound while applying battery voltage to the terminal 3 and ground.
