P0745

DTC P0745 LINE PRESSURE SOLENOID VALVE
Description





The line pressure solenoid valve regulates the oil pump discharge pressure to suit the driving condition in response to a signal sent from the TCM.
The line pressure duty cycle value is not consistent when the closed throttle position switch is ON. To confirm the line pressure duty cycle at low pressure, the accelerator (throttle) should be open until the closed throttle position switch is OFF.

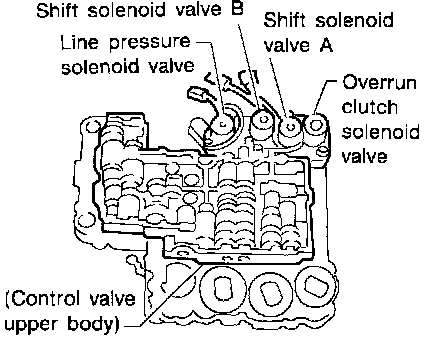

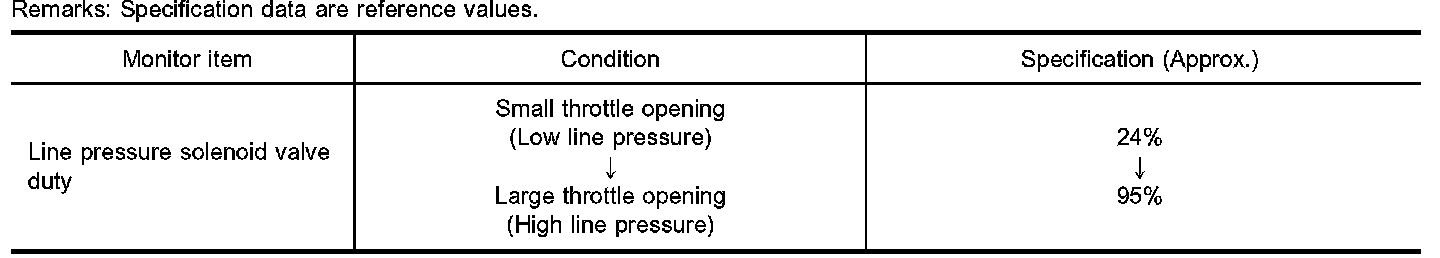

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE





NOTE: The line pressure duty cycle value is not consistent when the closed throttle position switch is ON. To confirm the line pressure duty cycle at low pressure, the accelerator (throttle) should be open until the closed throttle position switch is OFF.

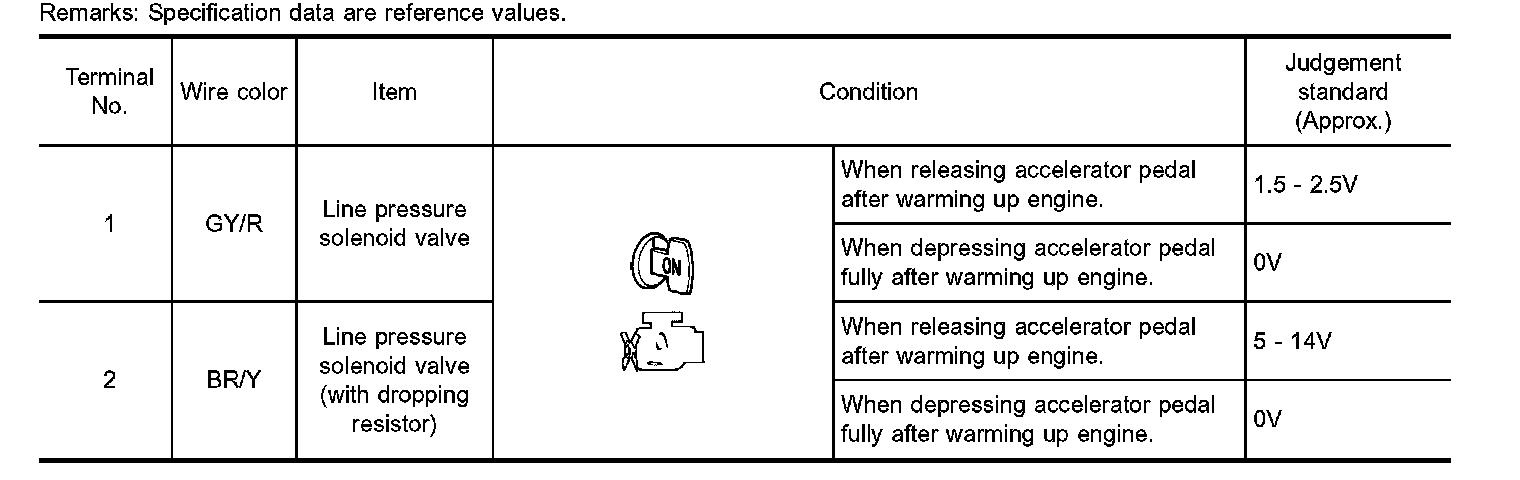

TCM TERMINALS AND REFERENCE VALUE

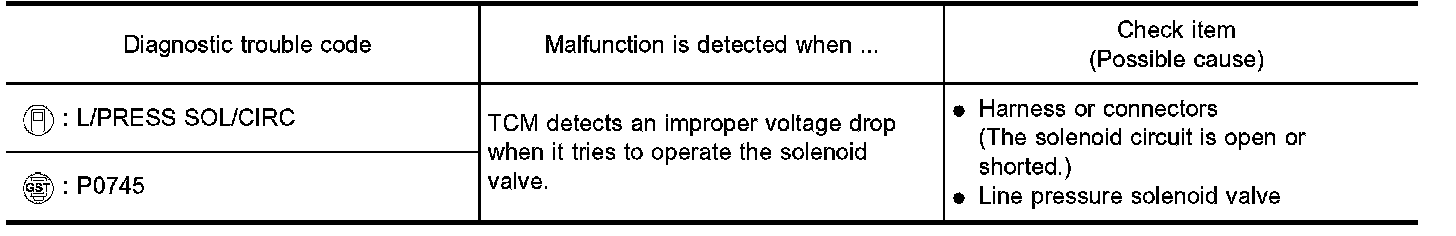

ON BOARD DIAGNOSTIC LOGIC

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

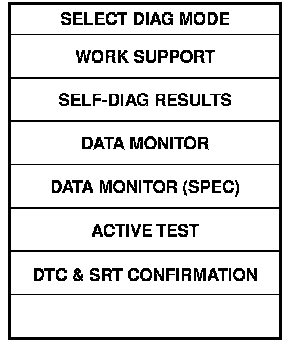

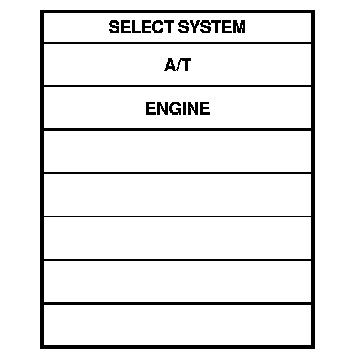

1) Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.





2) Depress accelerator pedal completely and wait at least 1 second.

With GST
Follow the procedure "With CONSULT-II".

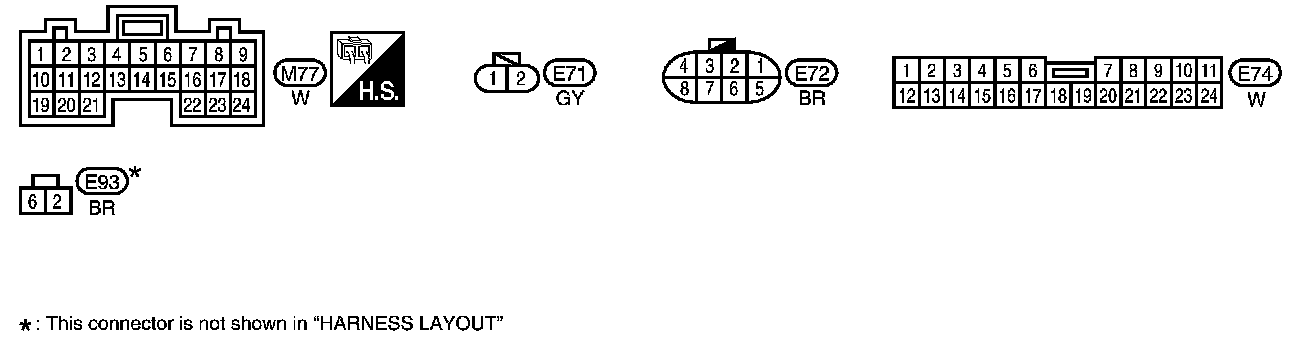

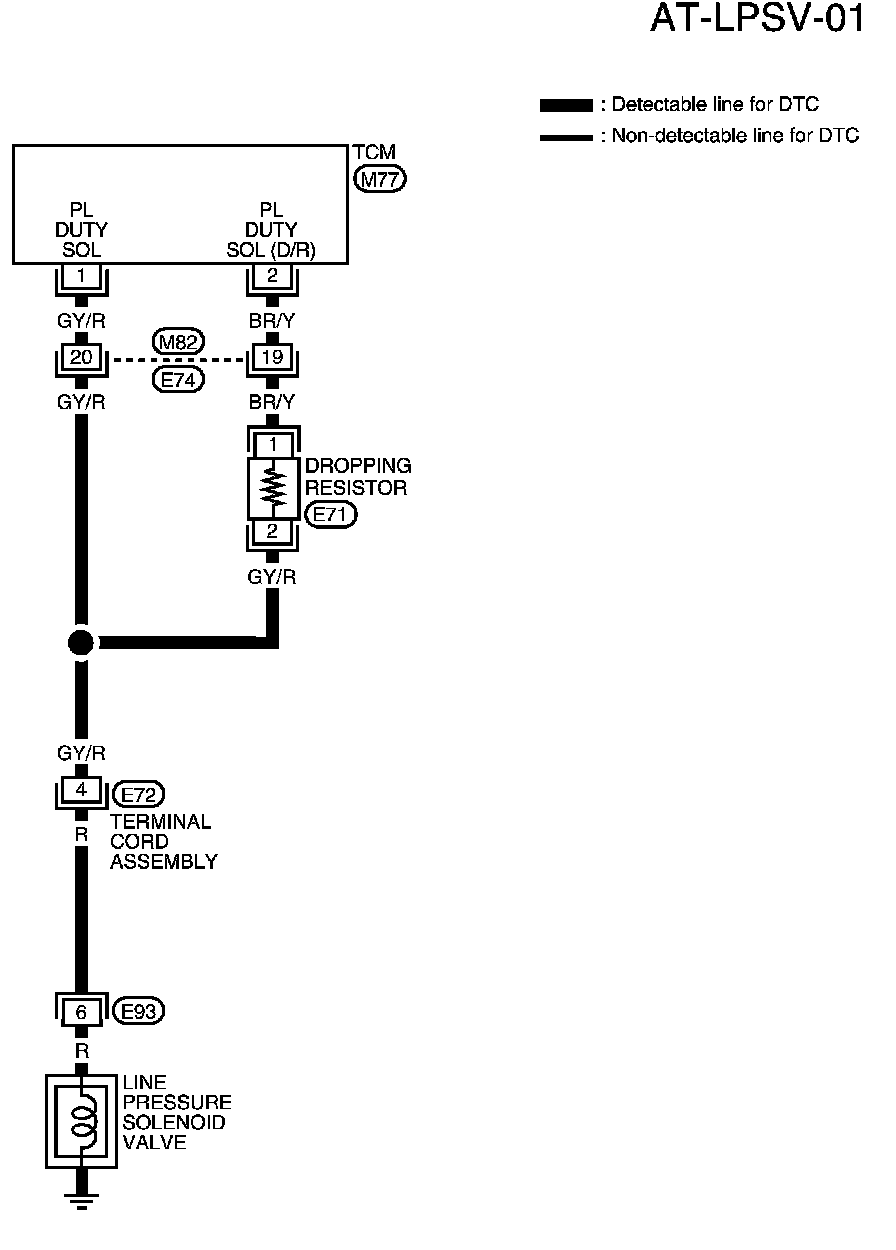

Wiring Diagram-AT-LPSV

Diagnostic Procedure

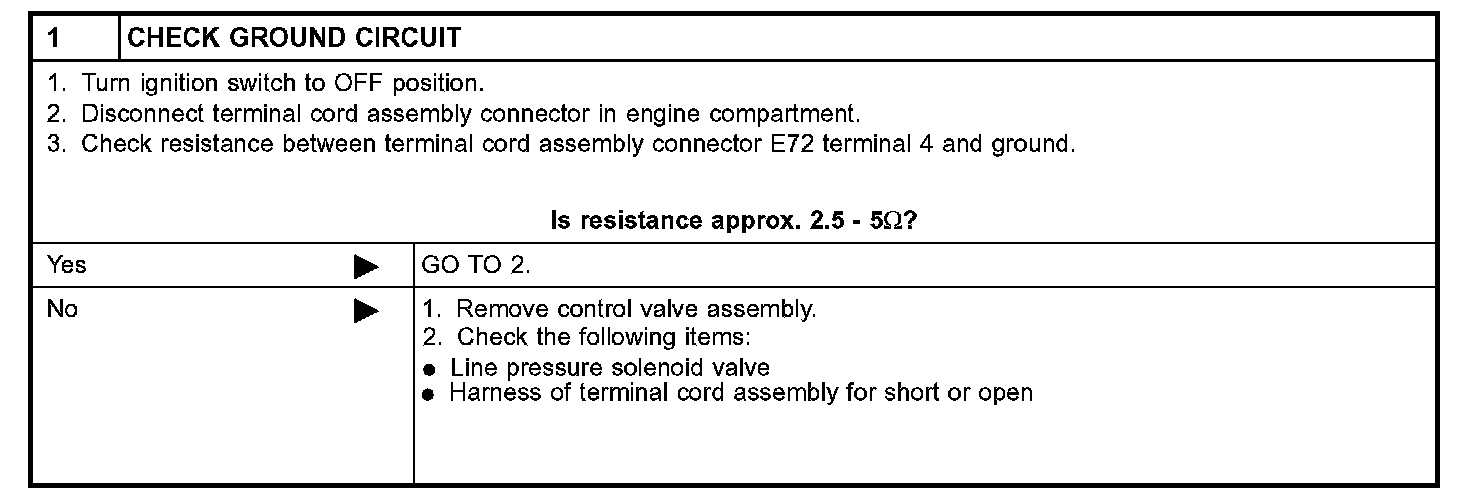

1. Check Ground Circuit

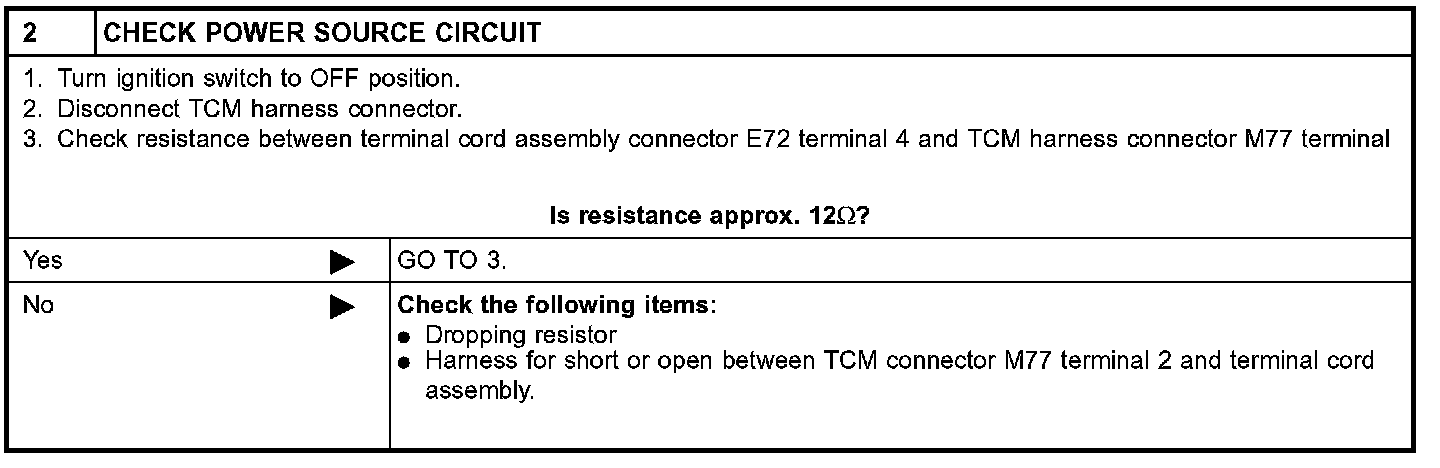

2. Check Power Source Circuit

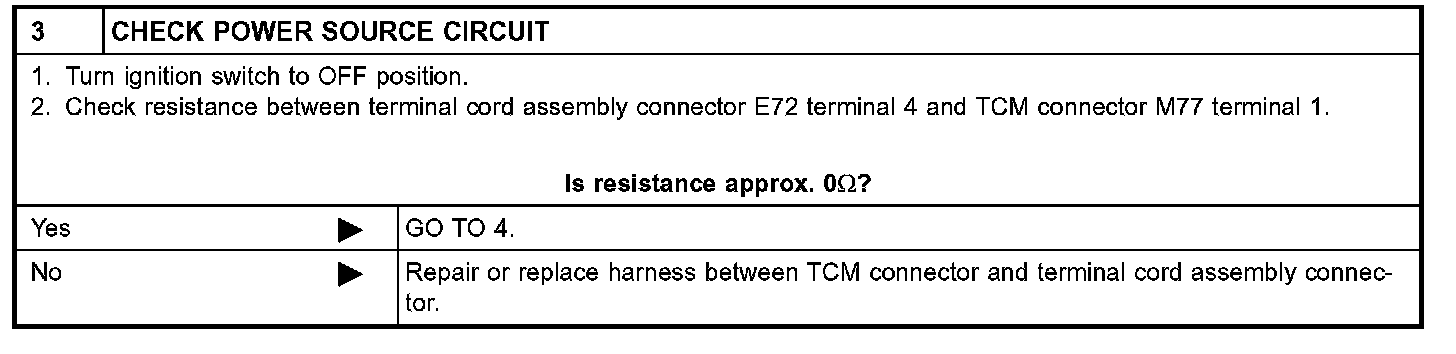

3. Check Power Source Circuit

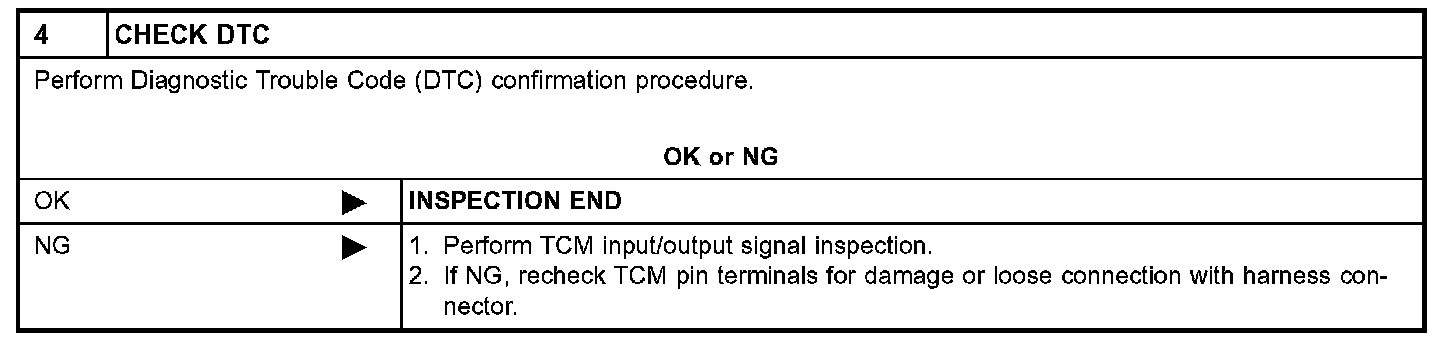

4. Check DTC

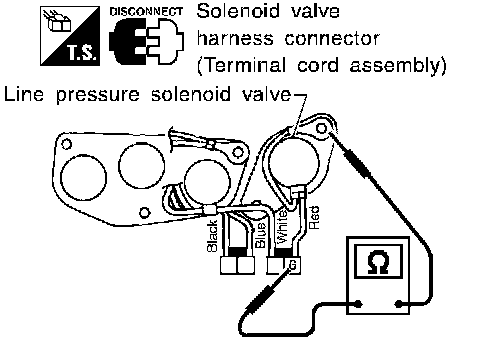

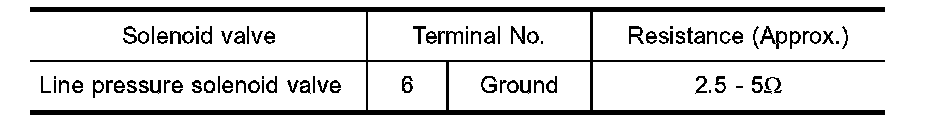

Resistance Check








- Check resistance between terminal 6 and ground.

Operation Check

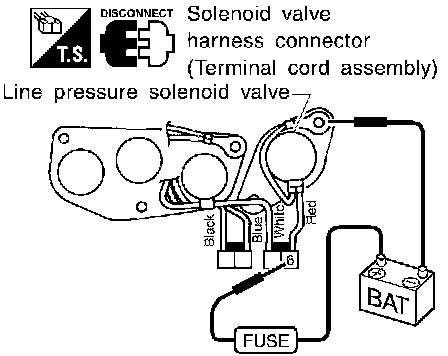

- Check solenoid valve by listening for its operating sound while applying battery voltage to the terminal 6 and ground.

DROPPING RESISTOR

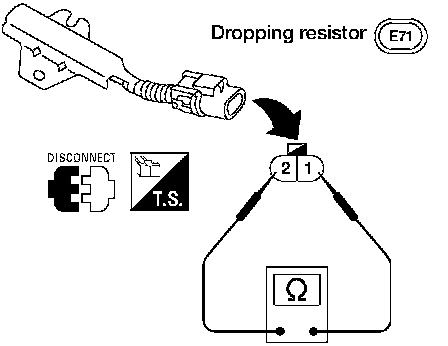

- Check resistance between terminals 1 and 2.
Resistance: Approximately 12 Ohms
