P0725

DTC P0725 ENGINE SPEED SIGNAL
Description
The engine speed signal is sent from the ECM to the TCM.





TCM TERMINALS AND REFERENCE VALUE

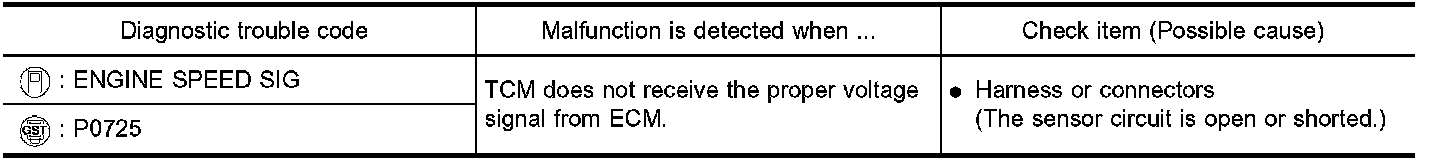

ON BOARD DIAGNOSIS LOGIC

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.





After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

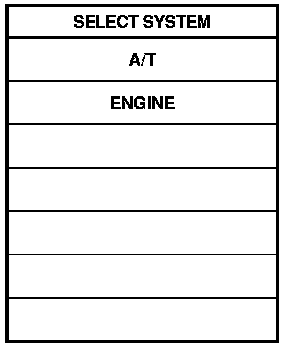

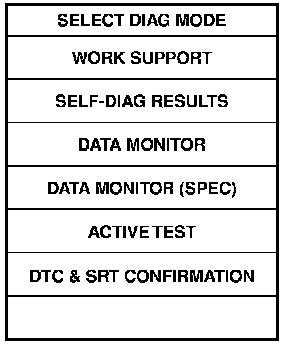

1) Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
2) Start engine and maintain the following conditions for at least 10 consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.2 Volts
Selector lever: D position (O/D ON)

With GST
Follow the procedure "With CONSULT-II ".

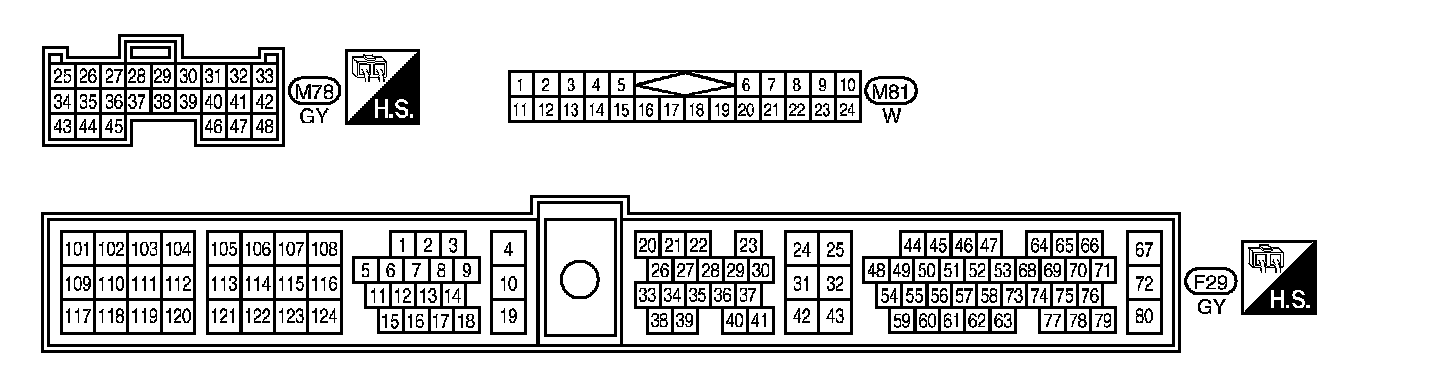

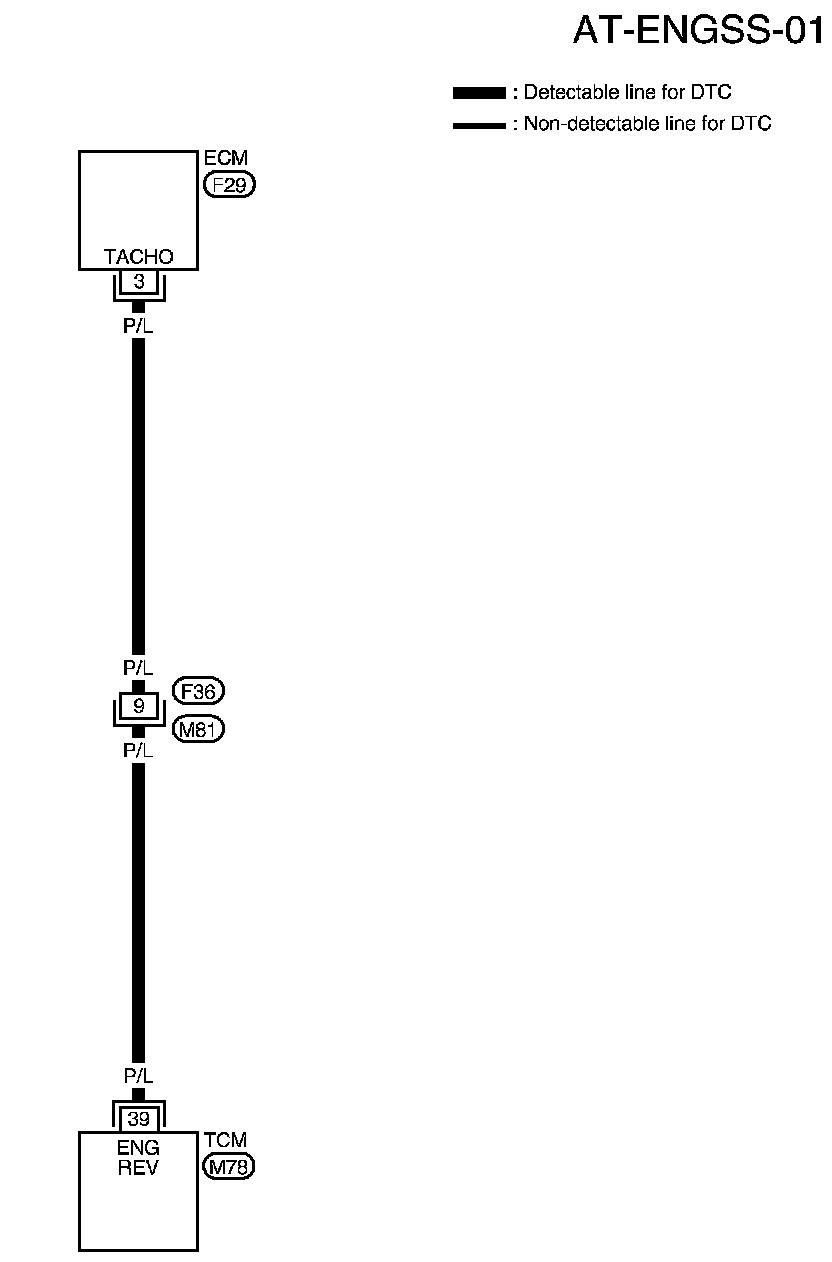

Wiring Diagram-AT-ENGSS

Diagnostic Procedure

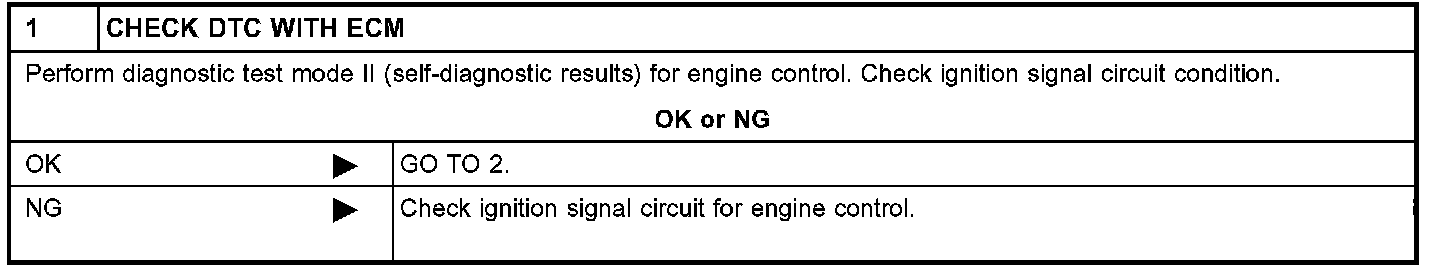

1. Check DTC With ECM





2. Check Input Signal

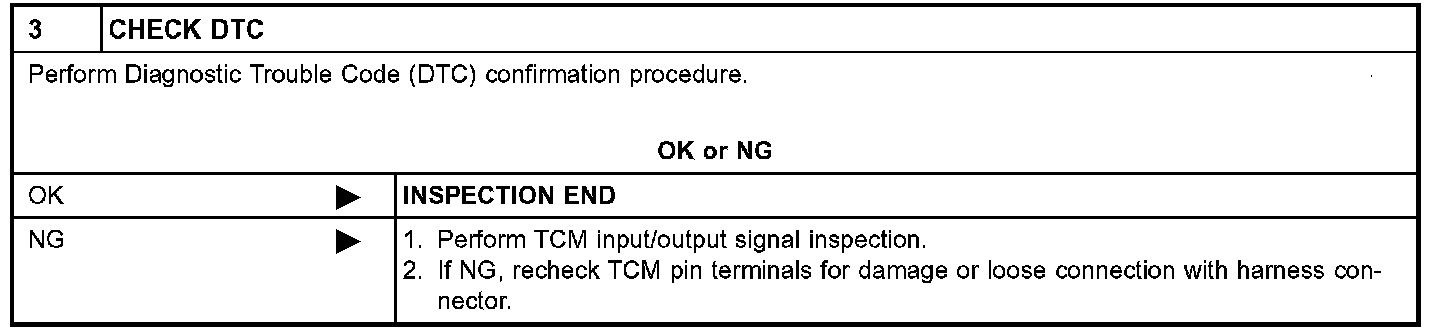

3. Check DTC
