P0605

P0605 ECM




Component Description
The ECM consists of a microcomputer and connectors for signal input and output and for power supply. The unit controls the engine.

On Board Diagnosis Logic
Malfunction is detected when ECM calculation function is malfunctioning.

POSSIBLE CAUSE
- ECM

DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.

With CONSULT-II
1. Turn ignition switch ON.
2. Select "DATA MONITOR" mode with CONSULT-II.

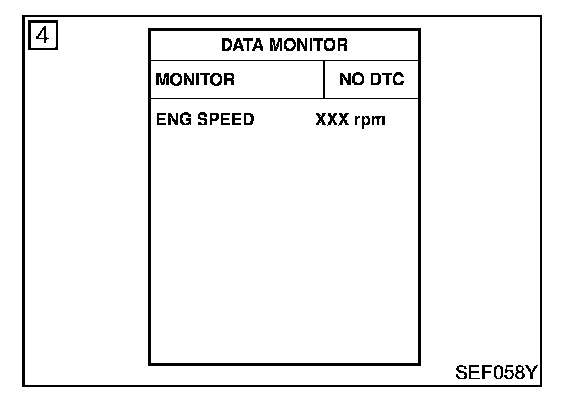

3. Start engine.




4. Run engine for at least 2 seconds at idle speed.
5. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

With GST
Follow the procedure "With CONSULT-II".

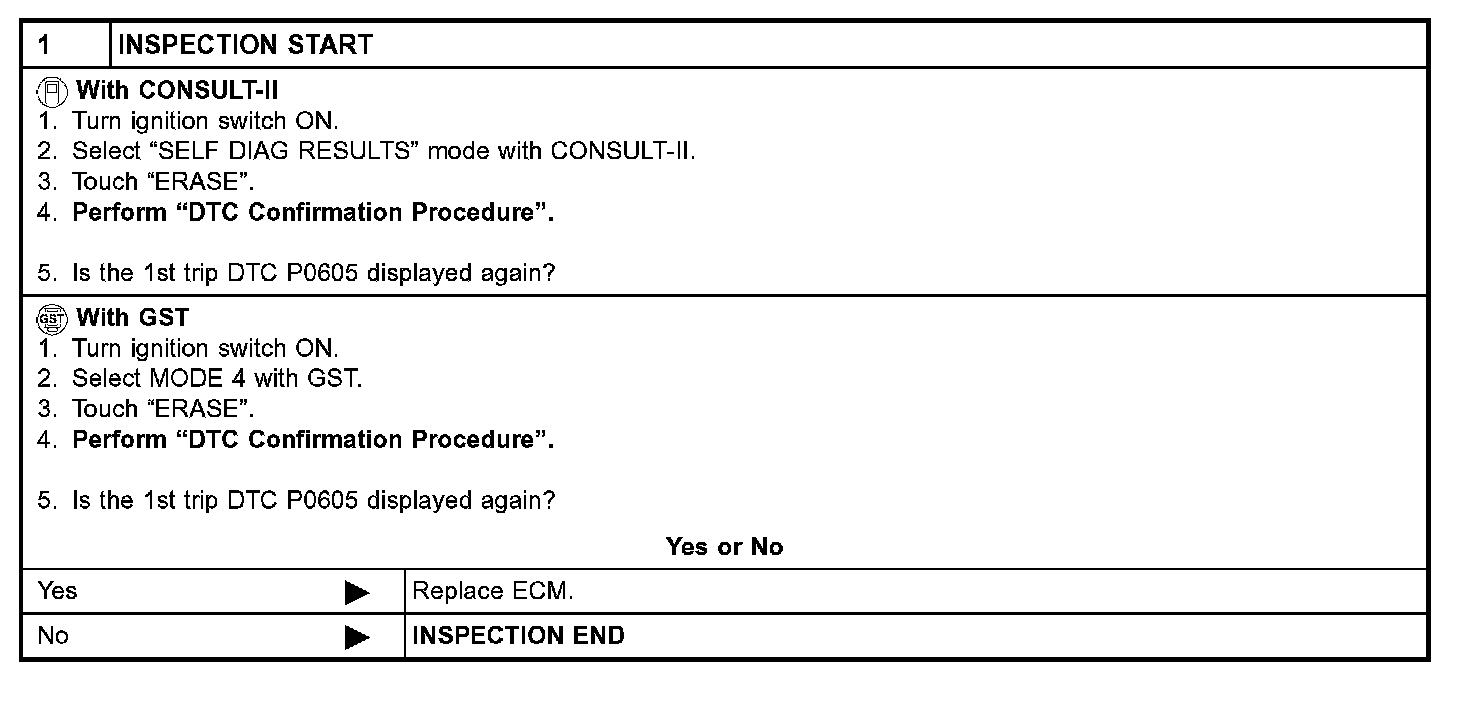

Diagnostic Procedure

Step 1:
