P0460

P0460 FUEL LEVEL SENSOR




Component Description
The fuel level sensor is mounted in the fuel level sensor unit. The sensor detects a fuel level in the fuel tank and transmits a signal to the ECM.

It consists of two parts, one is mechanical float and the other side is variable resistor. Fuel level sensor output voltage changes depending on the movement of the fuel mechanical float.

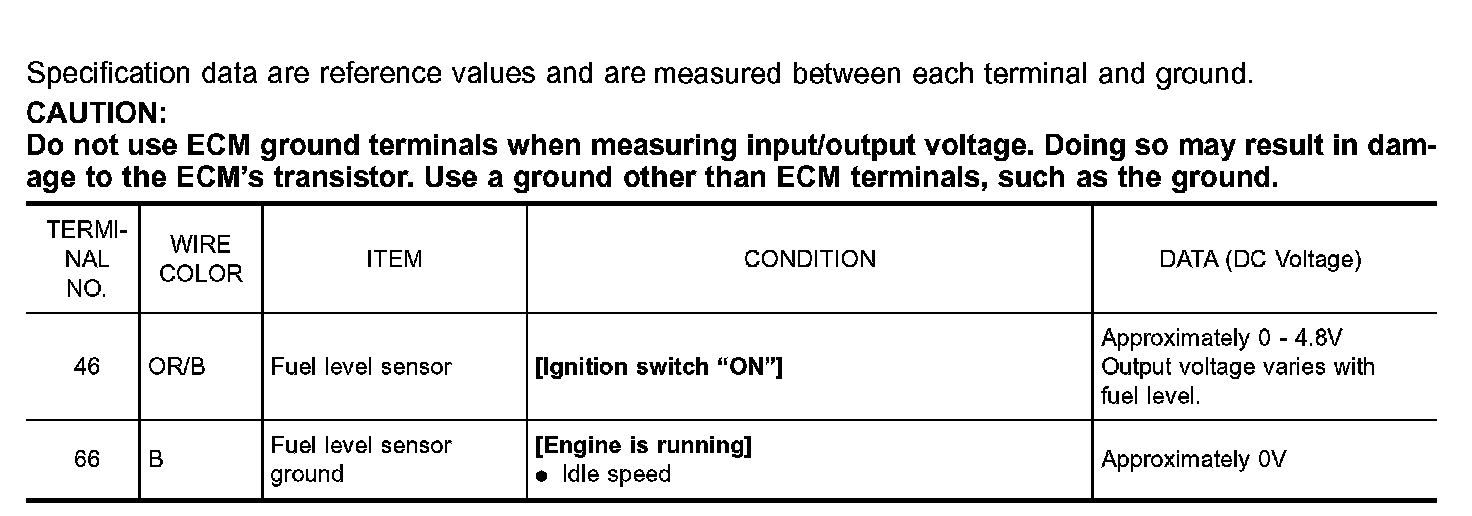

ECM Terminals And Reference Value:

On Board Diagnosis Logic
When the vehicle is parked, naturally the fuel level in the fuel tank is stable. It means that output signal of the fuel level sensor does not change. If ECM senses sloshing signal from the sensor, fuel level sensor malfunction is detected.

Malfunction is detected when even though the vehicle is parked, a signal being varied is sent from the fuel level sensor to ECM.

POSSIBLE CAUSE
- Fuel level sensor circuit
(The fuel level sensor circuit is open or shorted.)

- Fuel level sensor


DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

WITH CONSULT-II
1. Turn ignition switch "ON".

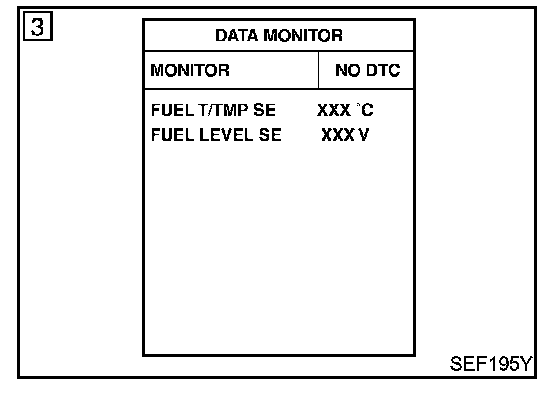

2. Select "DATA MONITOR" mode with CONSULT-II.




3. Start engine and wait maximum of 2 consecutive minutes.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

WITH GST
Follow the procedure "WITH CONSULT-II" above.

Wiring Diagram

EC-FLS1-01:

Diagnostic Procedure

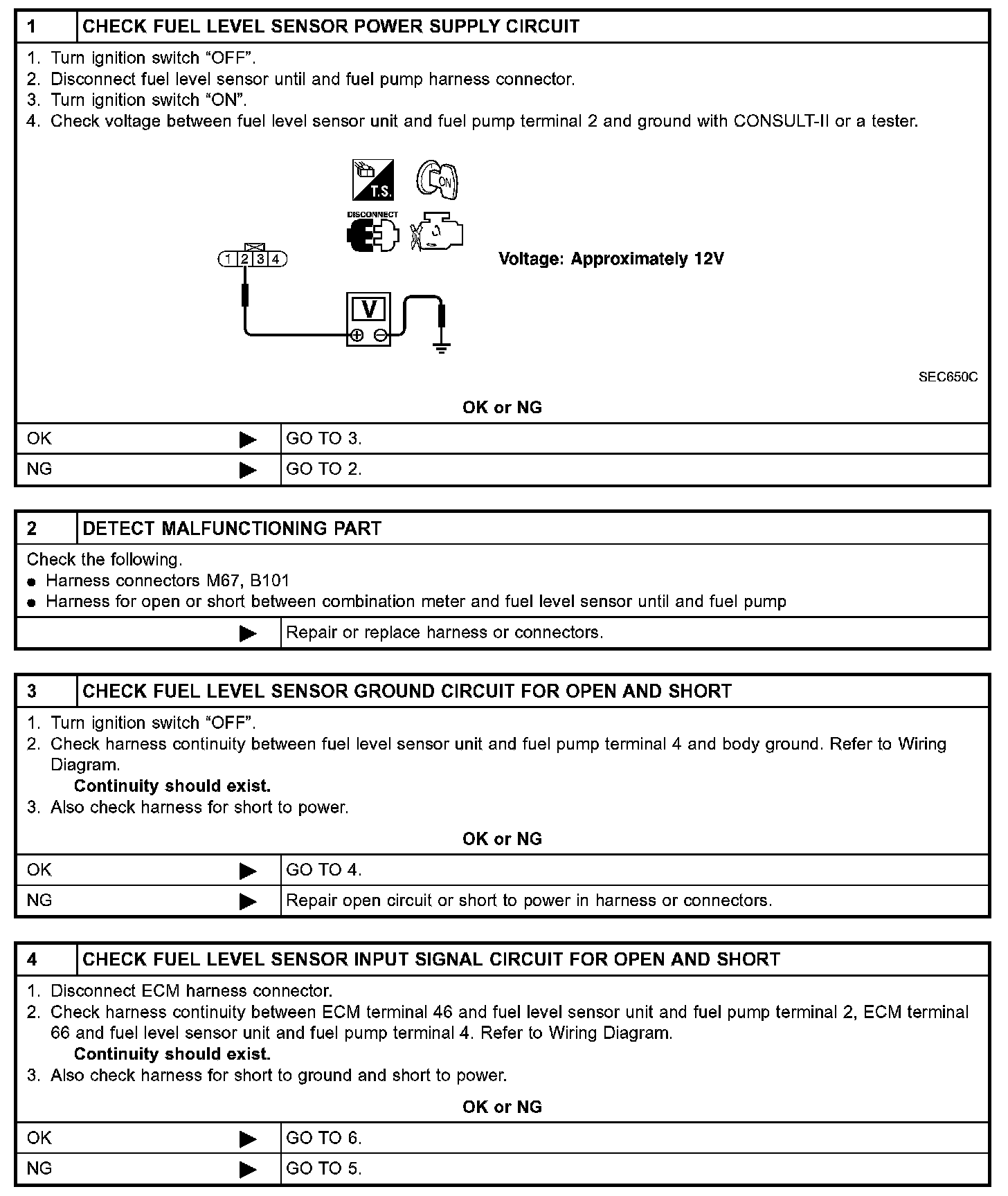

Step 1 - 4:

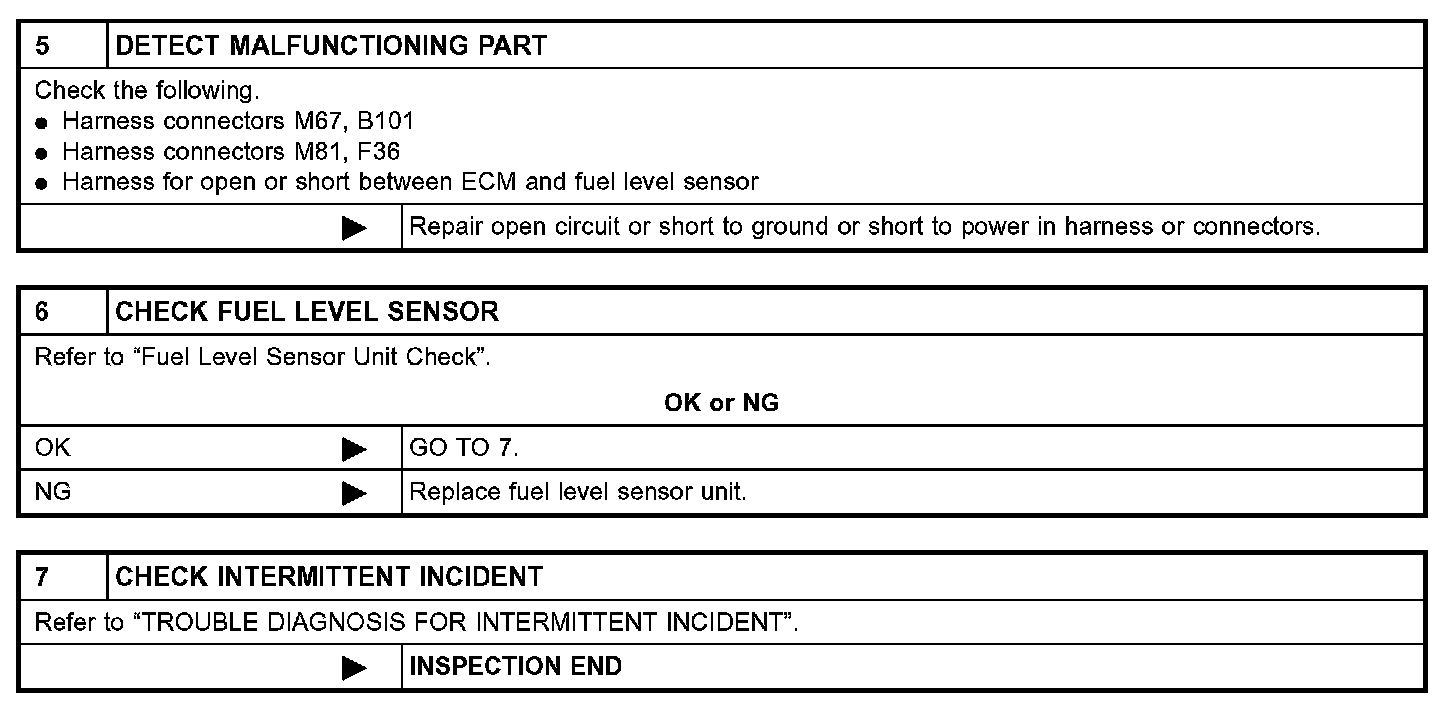

Step 5 - 7:
