FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun Truck
>>
2002
>>
Xterra XE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 17
DTC 17
G SENSOR AND CIRCUIT
Malfunction code No. 17

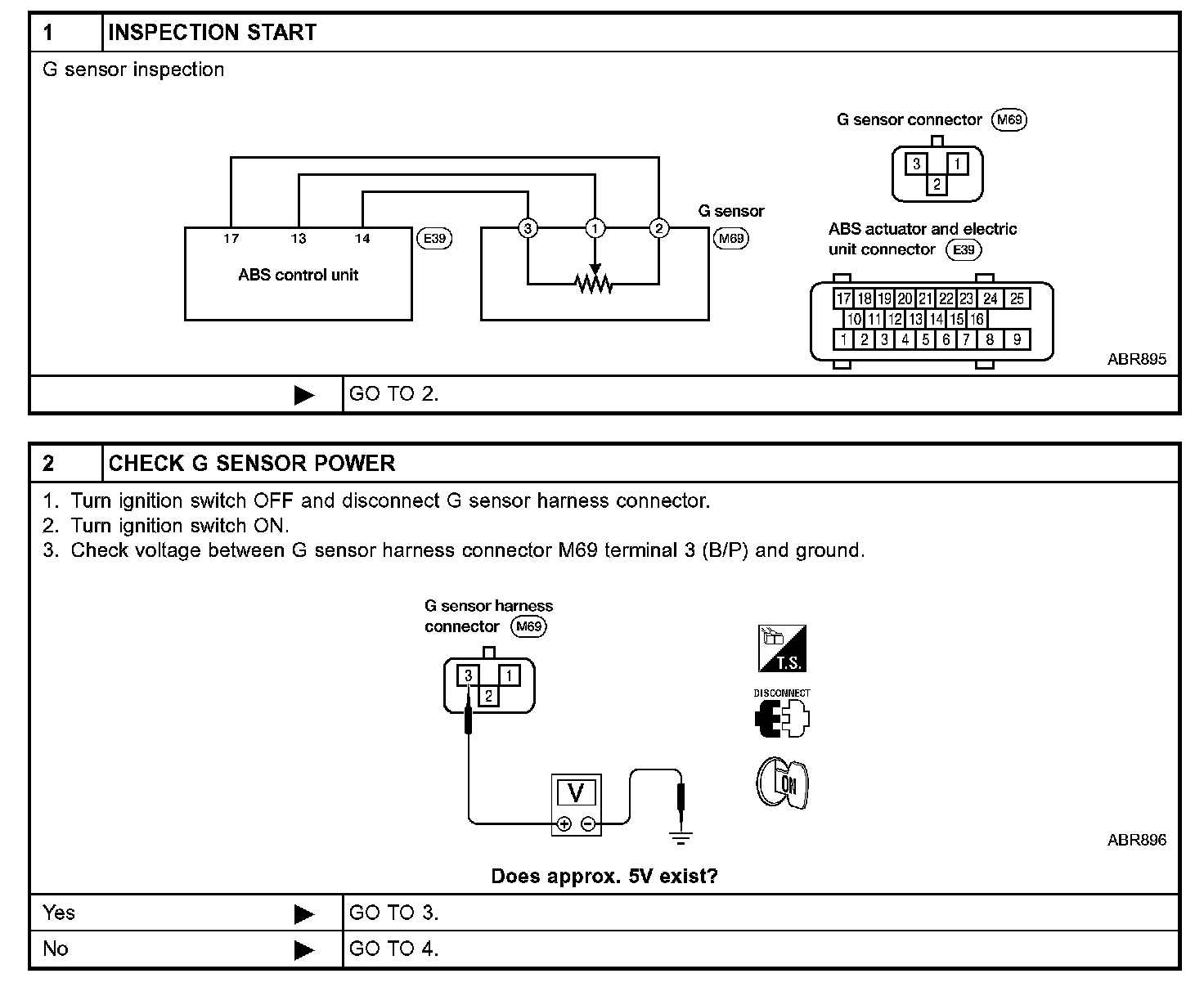

DIAGNOSTIC PROCEDURE
Procedure 1 - 2

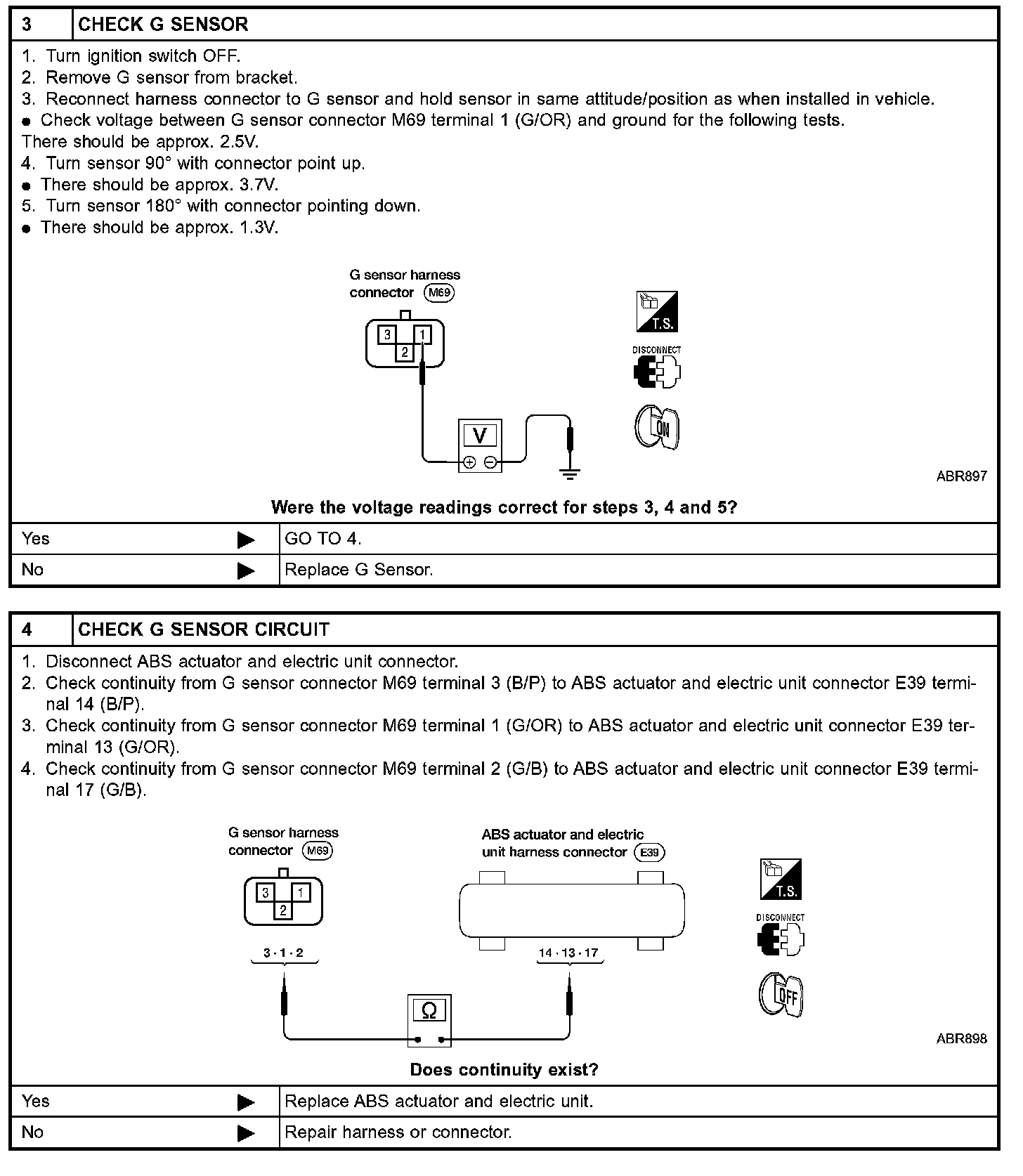

Procedure 3 - 4
