Alphabetical Index

Alphabetical & P No. Index For DTC Part 1:

Alphabetical & P No. Index For DTC Part 2:

Alphabetical & P No. Index For DTC Part 3:

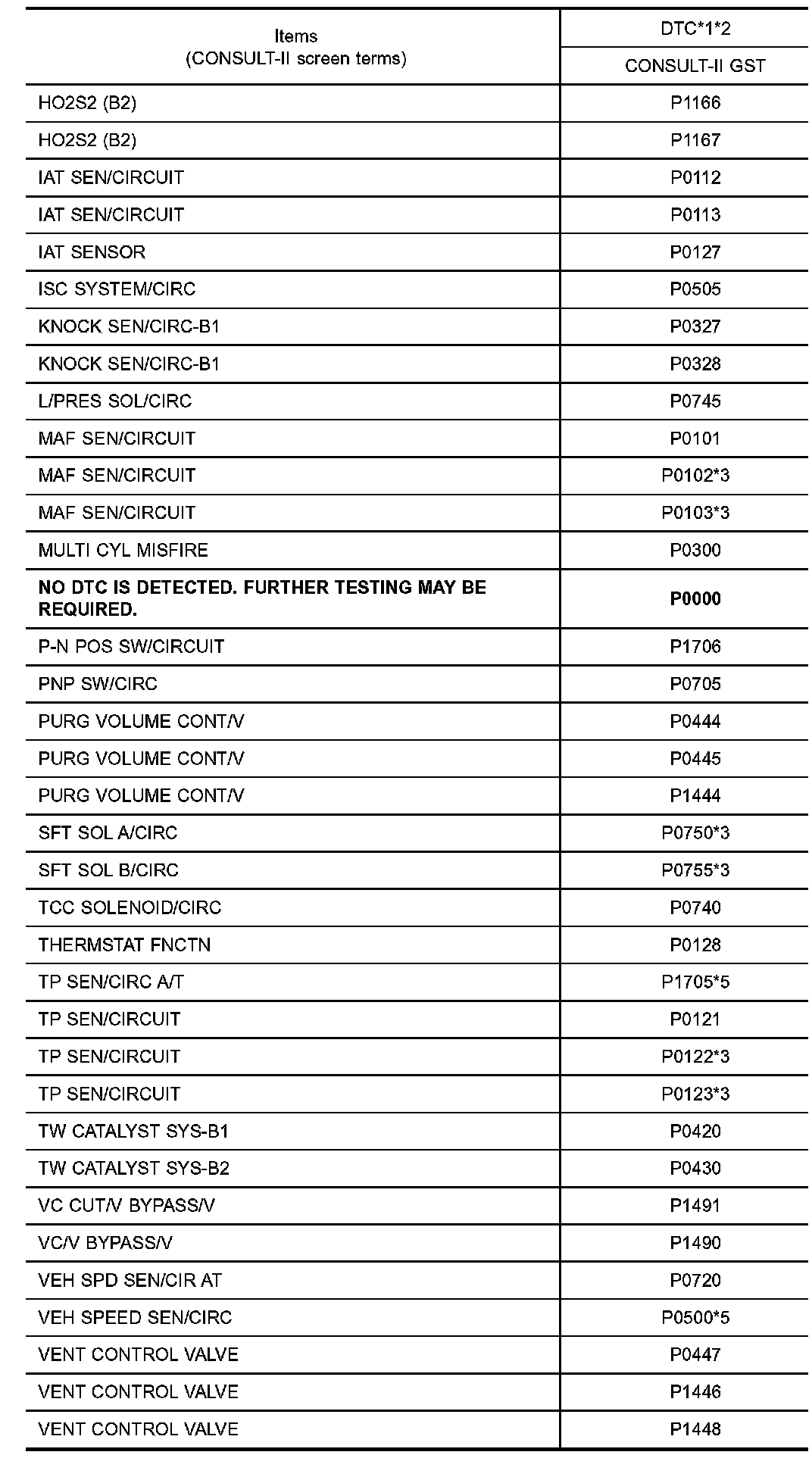

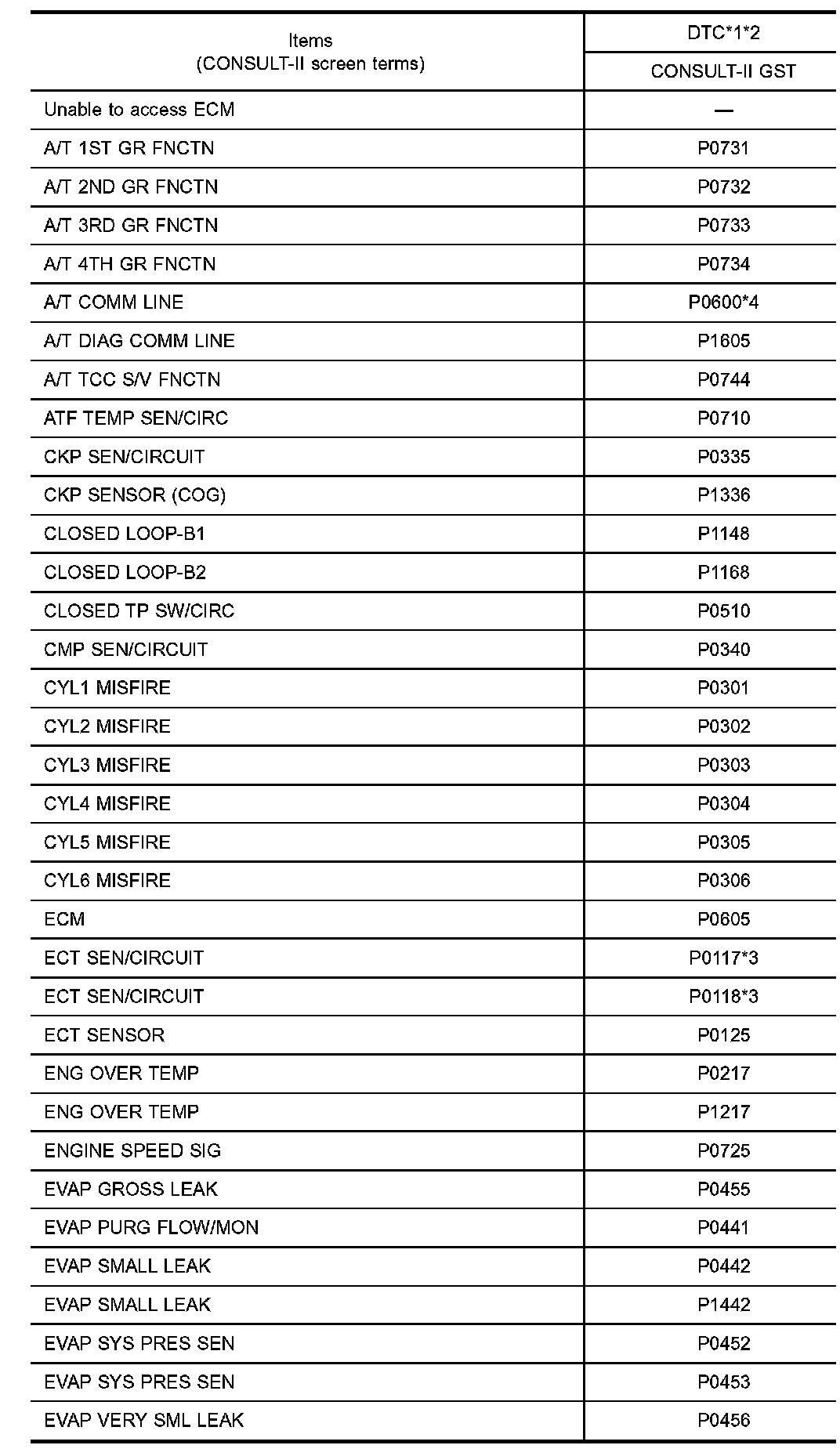

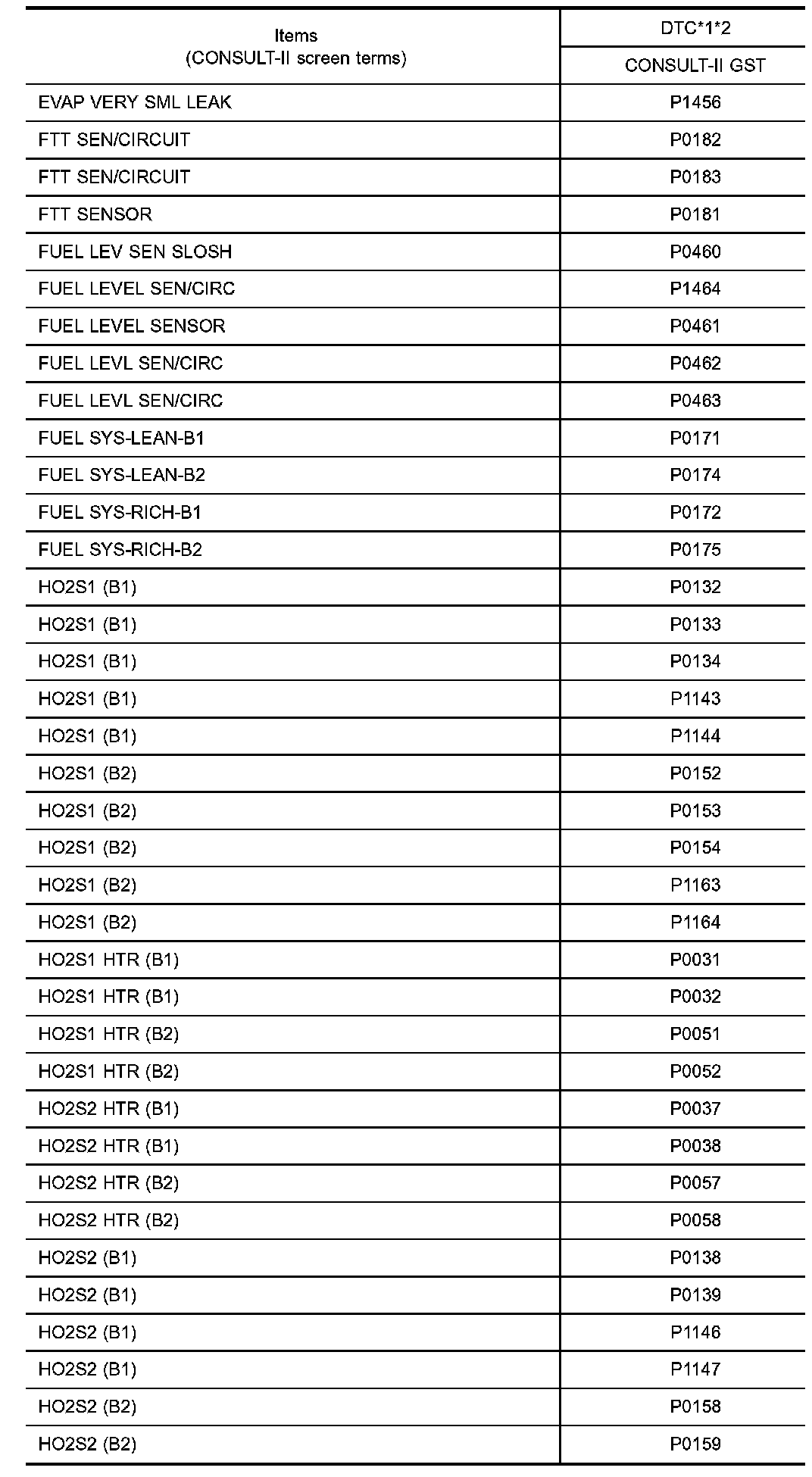

ALPHABETICAL INDEX FOR DTC
*1: 1st trip DTC No.1 is the same as DTC No.
*2: These numbers are prescribed by SAE J2012.
*3: When the fail-safe operation occurs, the MIL illuminates.
*4: This DTC is displayed with CONSULT-II only.
*5: The MIL illuminates when both the "Revolution sensor signal" and the "Vehicle speed sensor signal" meet the fail-safe condition at the same time.

NOTE: Regarding D22 models, "B1" indicates bank 1, "B2" indicates bank 2.
