Home >> Nissan-Datsun Truck >> 2002 >> Xterra XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C1114

C1114



ABS Actuator Solenoid Valve or Solenoid Valve Relay

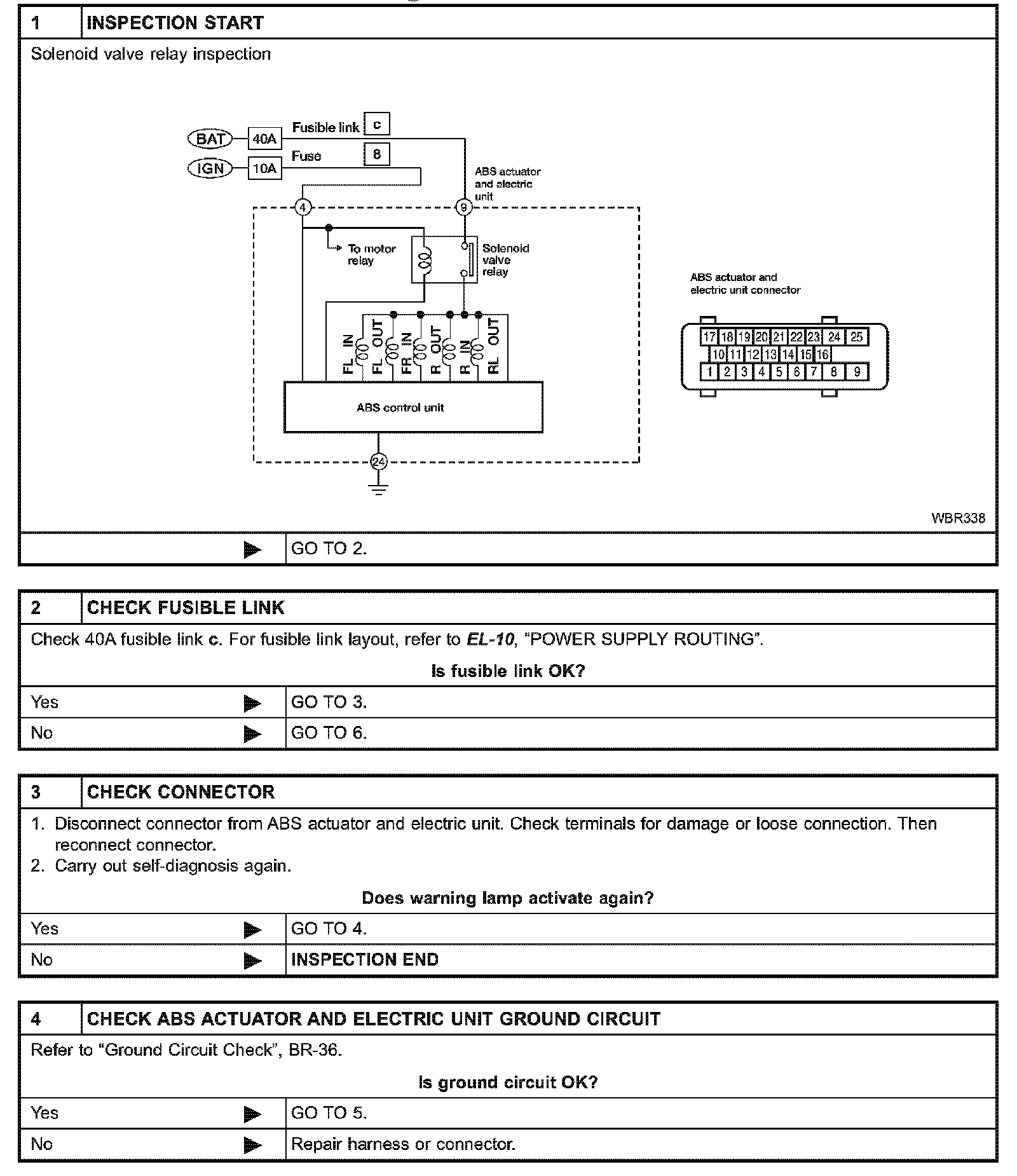

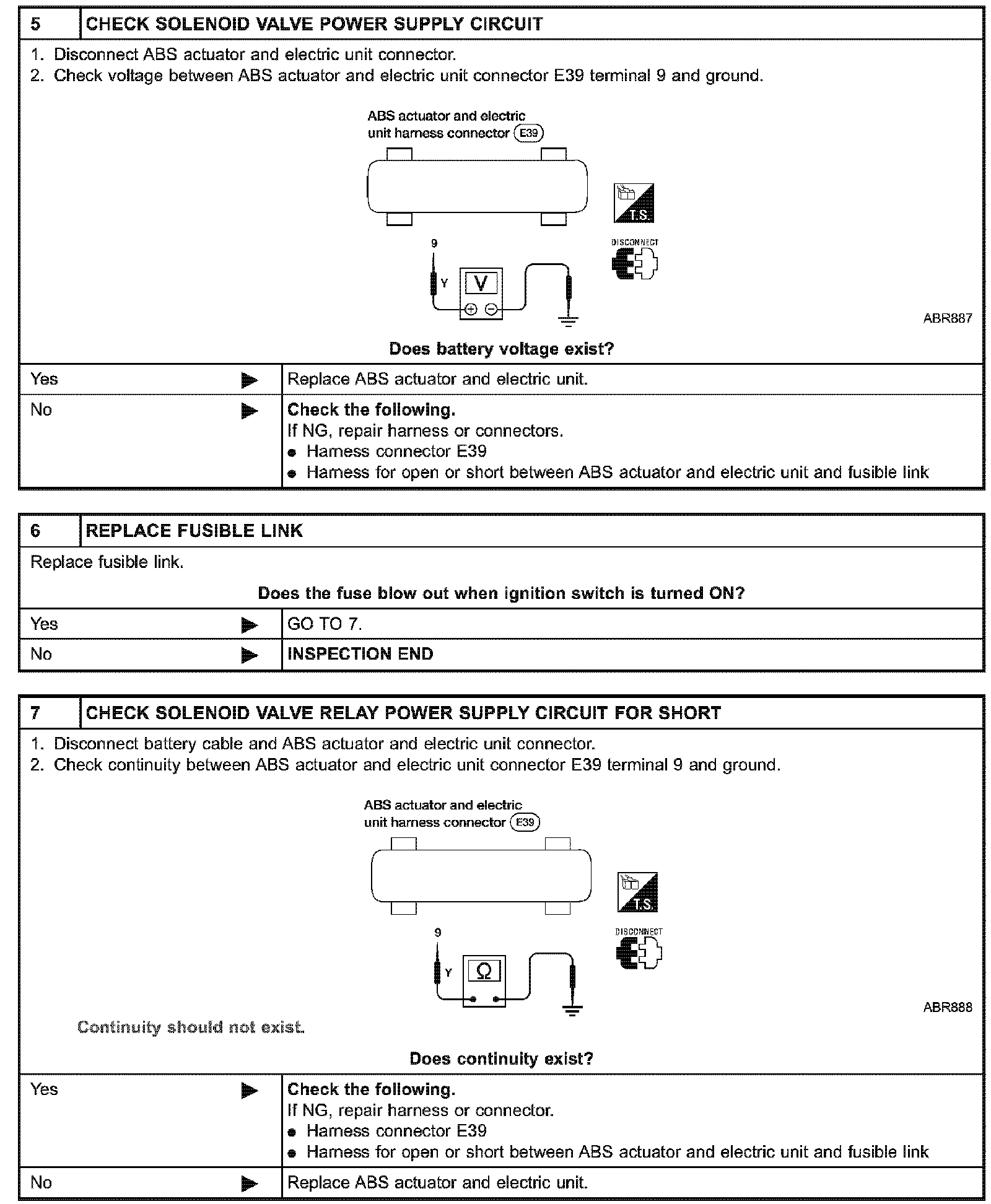

DIAGNOSTIC PROCEDURE

With CONSULT-II: Malfunction code No. C1110 or C1114

Without CONSULT-II: Malfunction code No.63 or 71
