Home >> Nissan-Datsun Truck >> 2002 >> Xterra XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C1113

C1113



G Sensor and Circuit

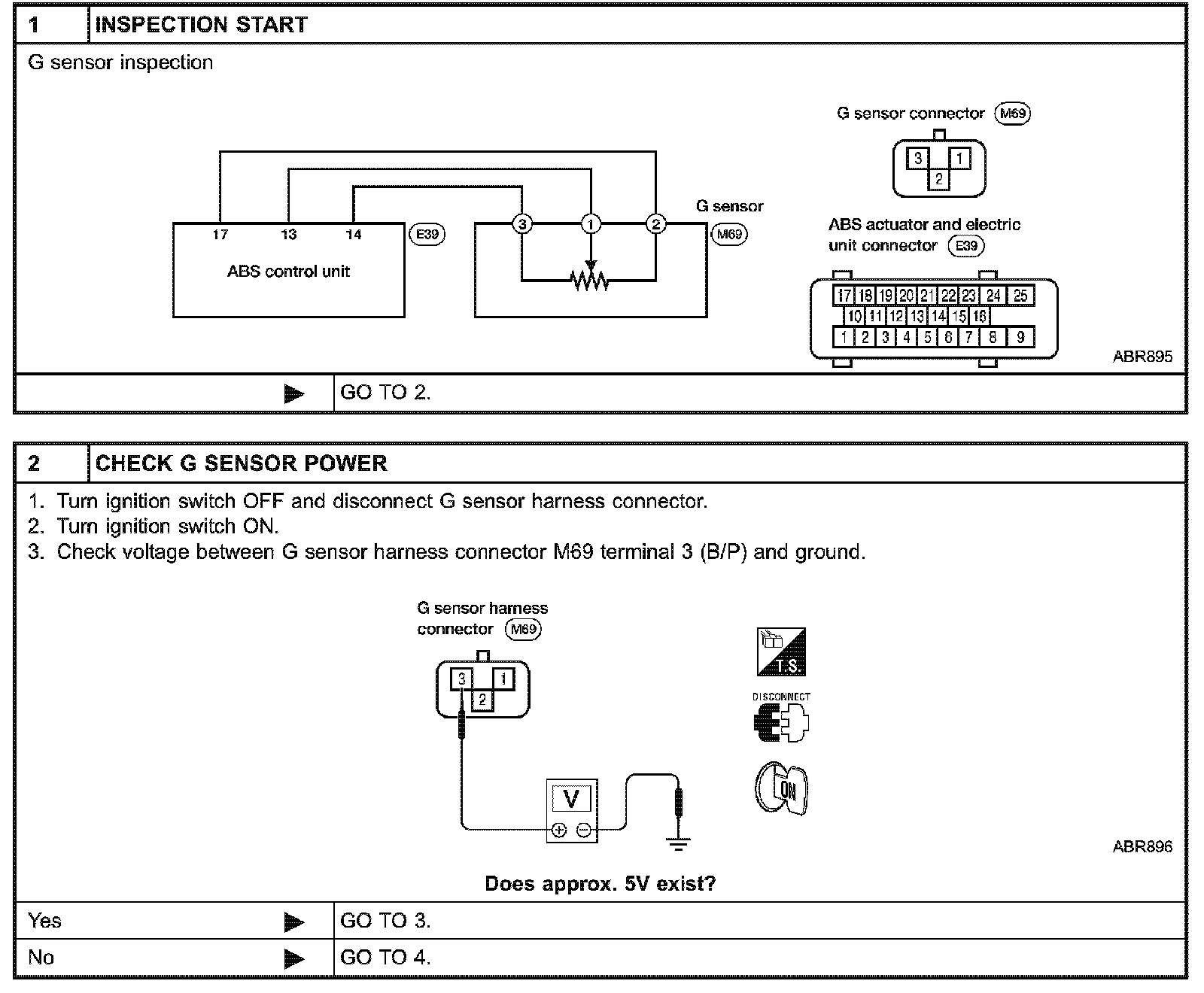

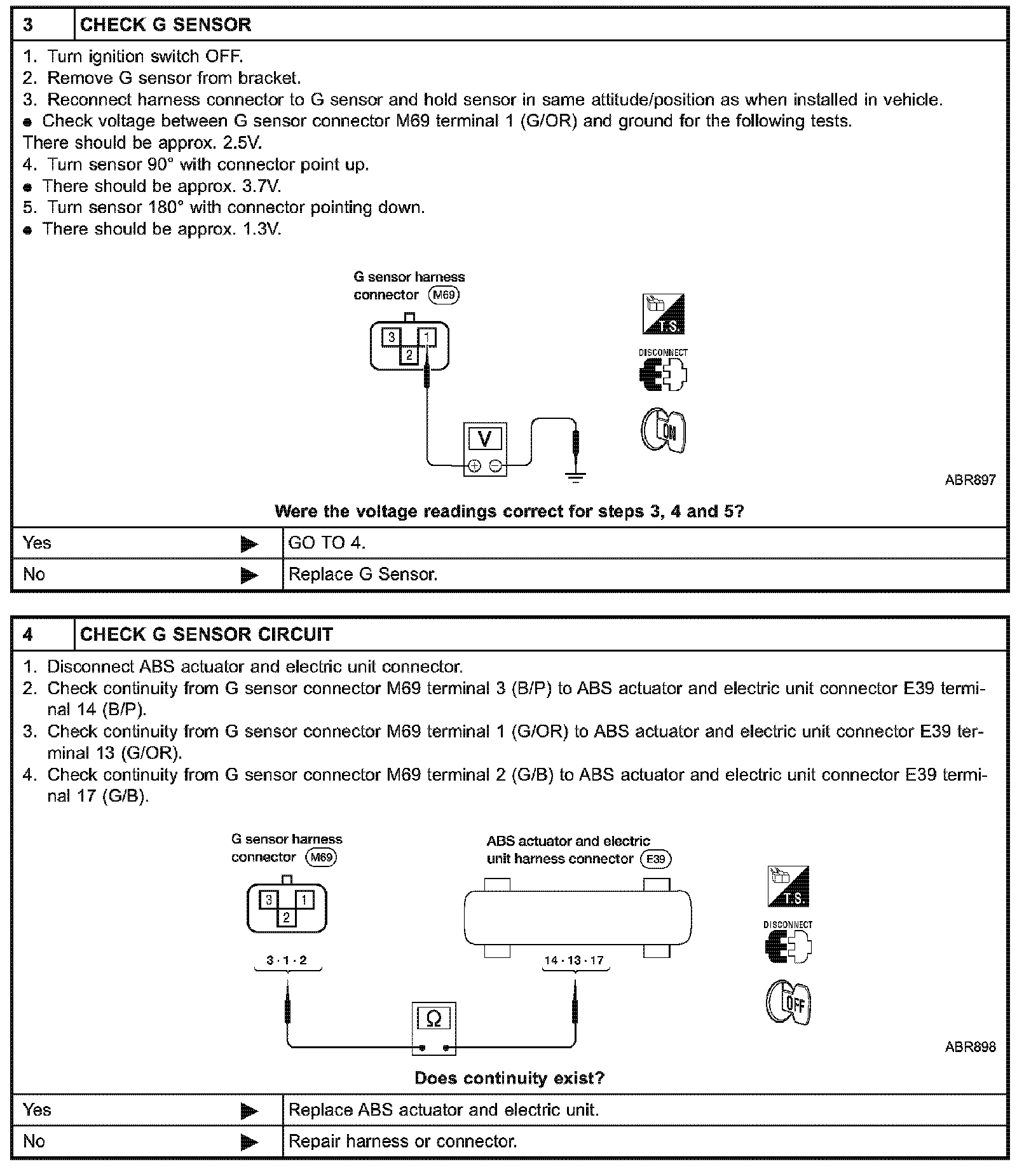

DIAGNOSTIC PROCEDURE

With CONSULT-II: Malfunction code No. C1113

Without CONSULT-II: Malfunction code No.17
