C1109
C1109
Low Voltage

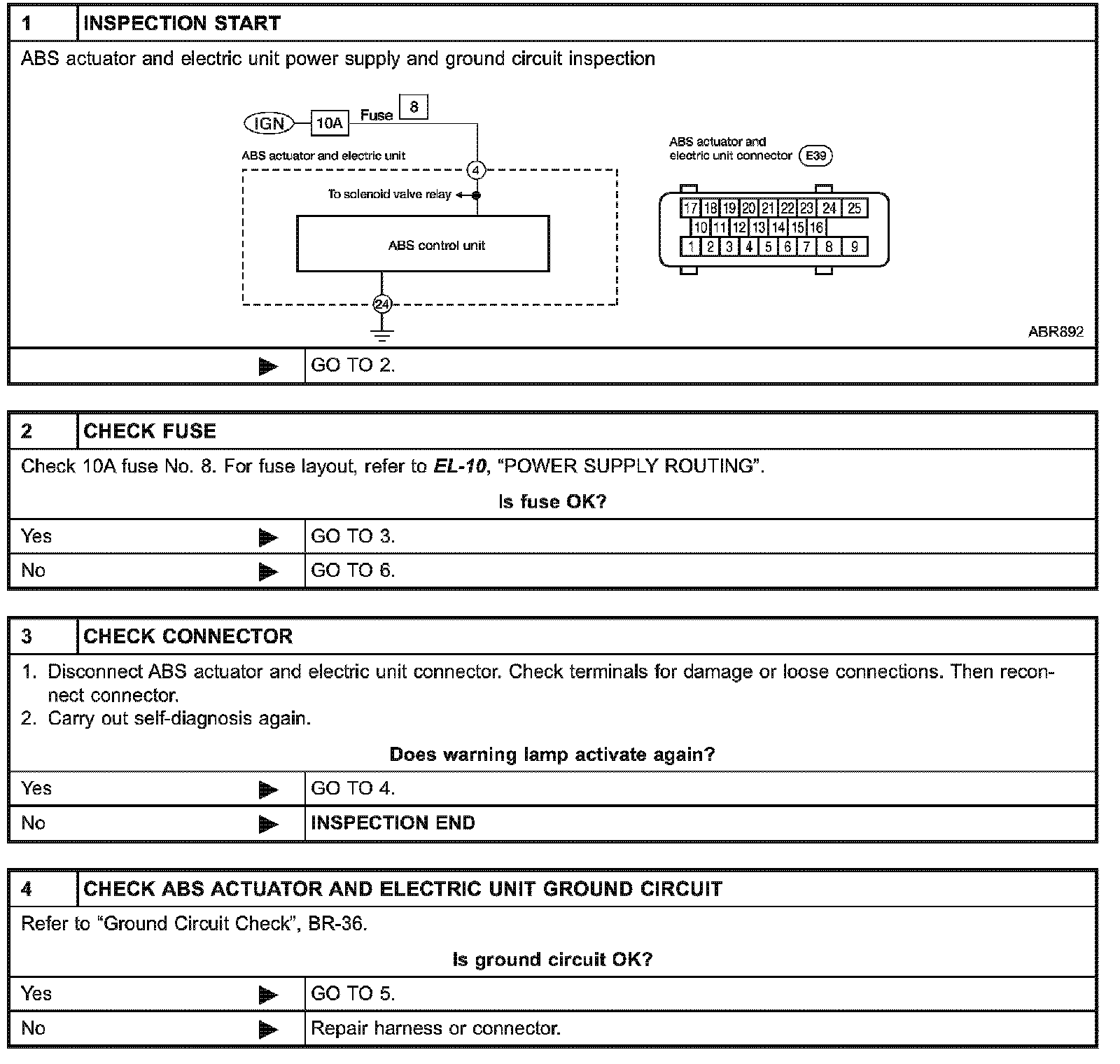

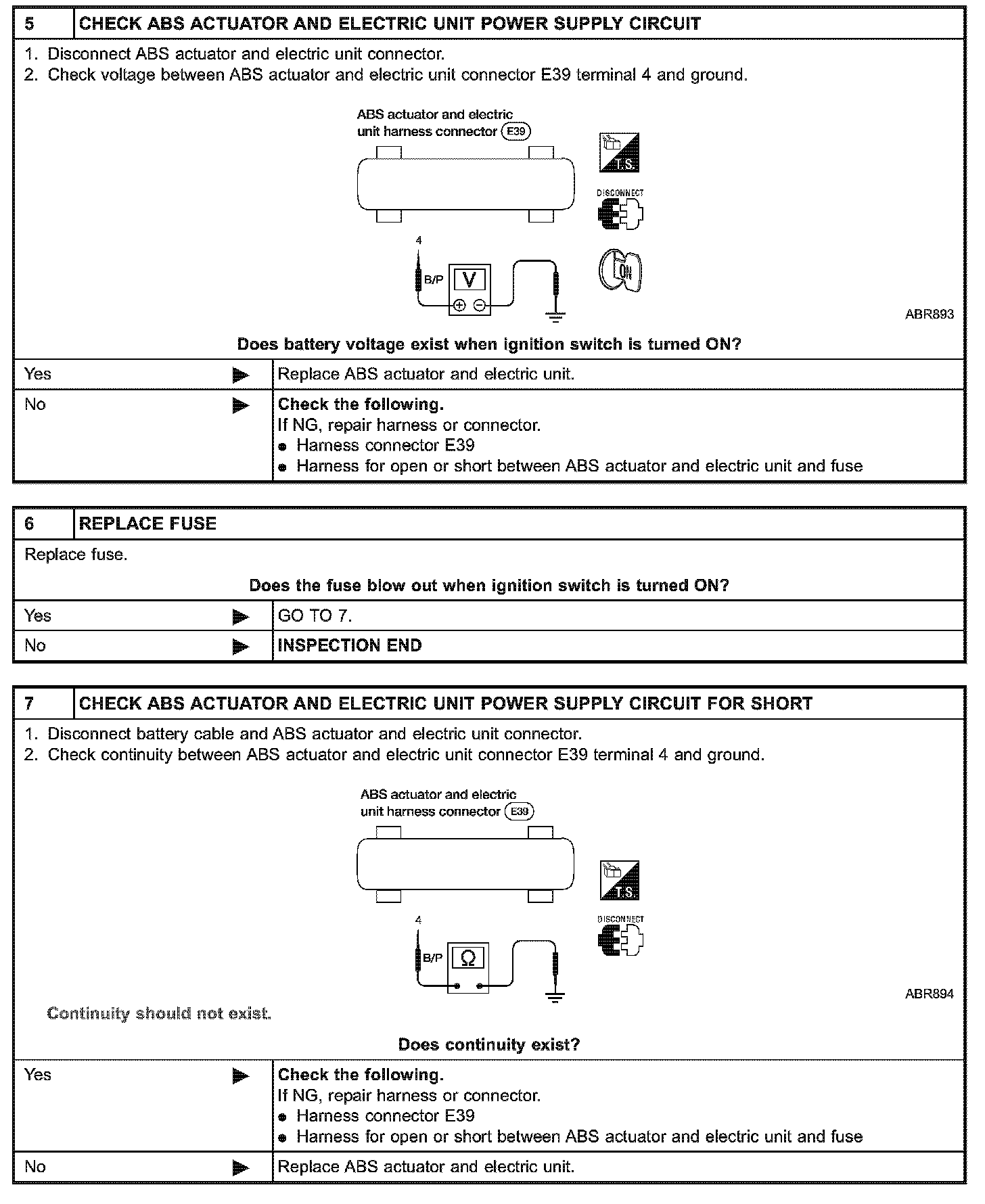

DIAGNOSTIC PROCEDURE
With CONSULT-II: Malfunction code No. C1109
Without CONSULT-II: Malfunction code No.57
