Parking Components Inspection

Parking Components Inspection
4WD MODEL
1. Remove propeller shaft.
2. Remove transfer case from vehicle.

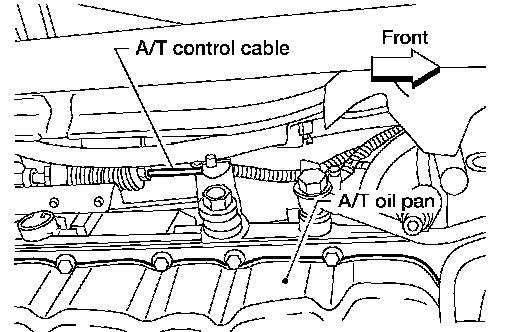

3. Remove A/T control cable bracket from transmission case.





4. Support A/T assembly with a jack.
5. Remove adapter case from transmission case.
6. Replace parking components if necessary.
7. Reinstall any part removed.
Always use new sealing parts.
