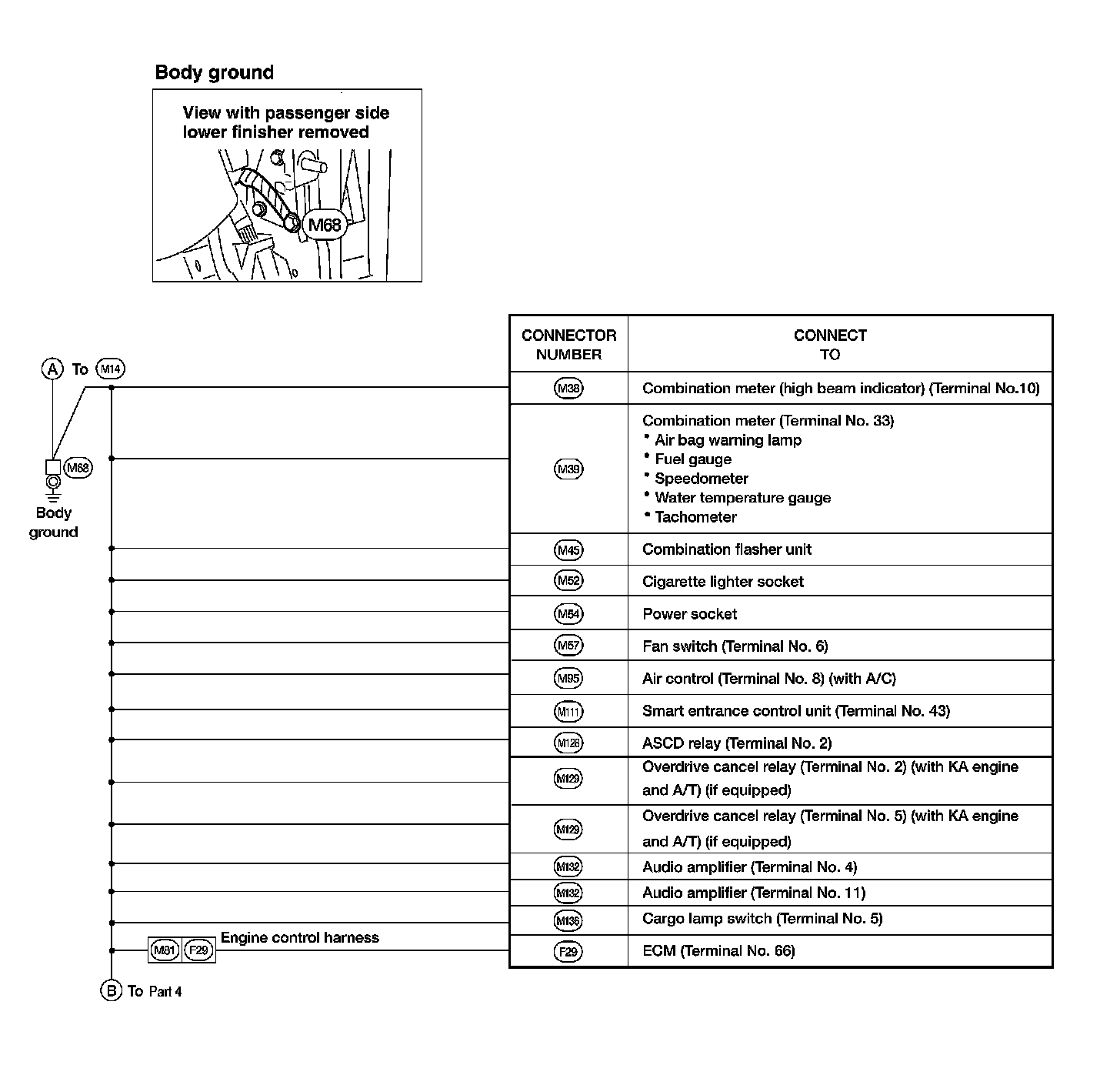

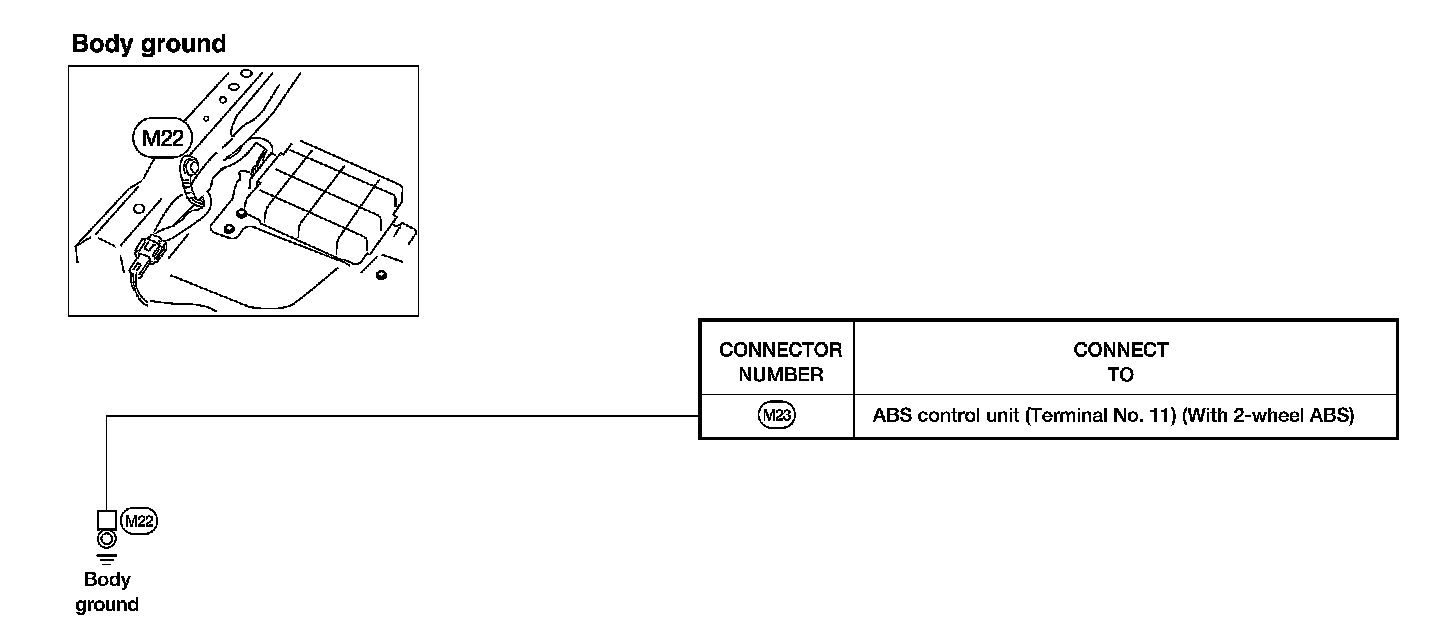

Grounding Point: Locations

Main Harness Part 1:

Main Harness Part 2:

Main Harness Part 3:

Main Harness Part 4:

Engine Room Harness Part 1:

Engine Room Harness Part 2:

Engine Room Harness Part 3:

Engine Control Harness Part 1:

Engine Control Harness Part 2:

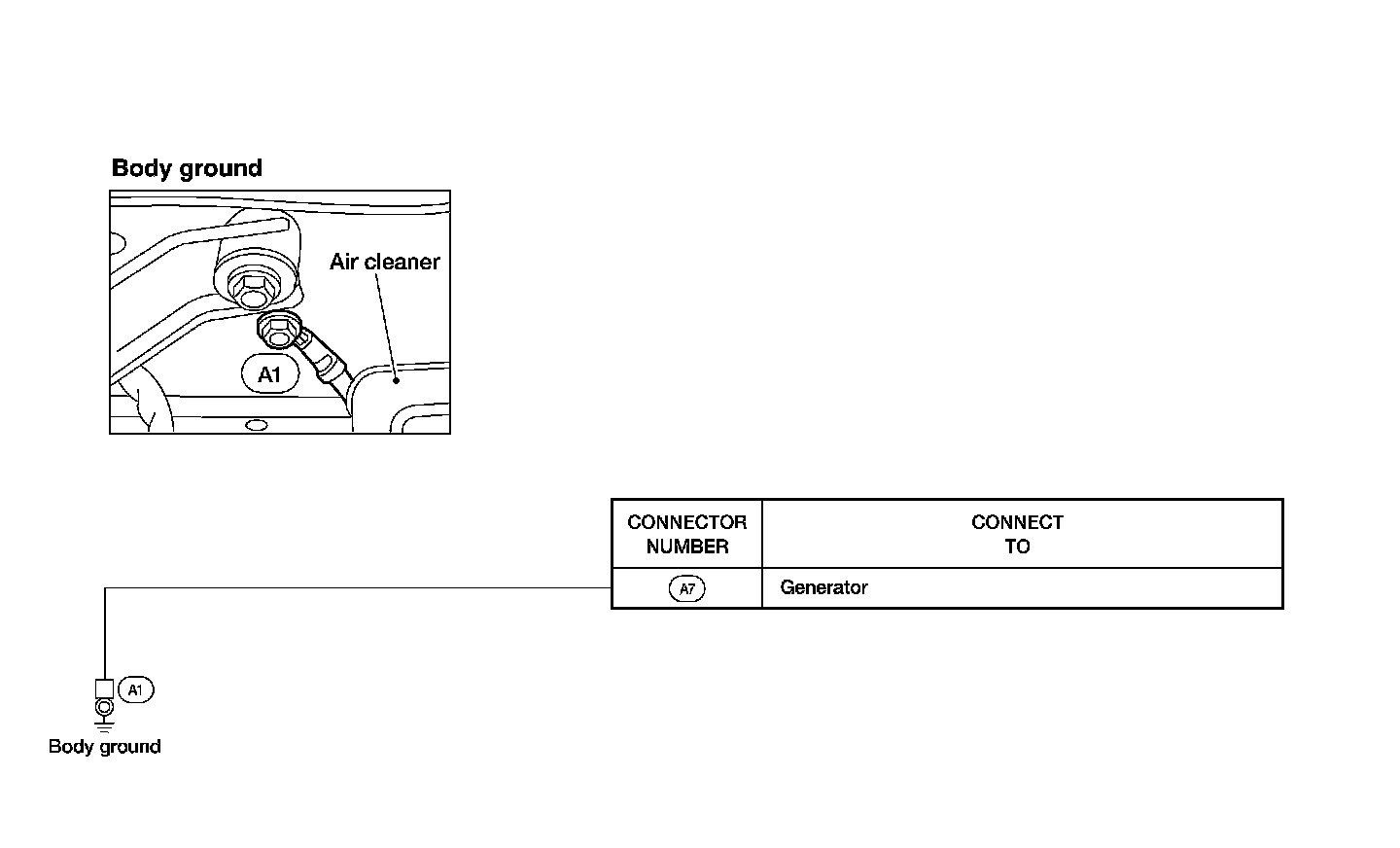

Generator Harness:
