Home >> Nissan-Datsun Truck >> 2002 >> Frontier XE King Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> For CANADA

For CANADA

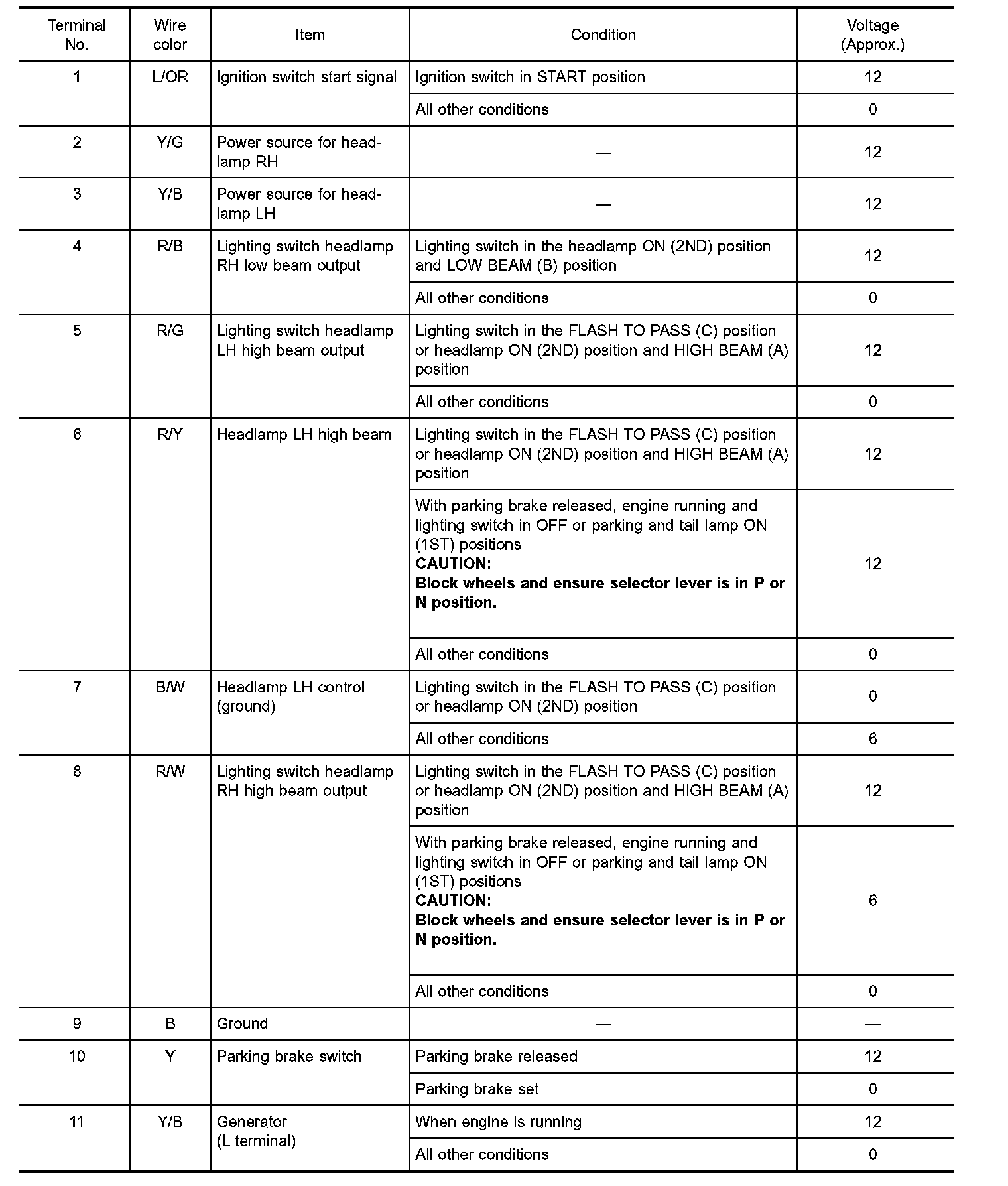

Daytime Light Control Unit Inspection Table (1 - 11) (CANADA Only):

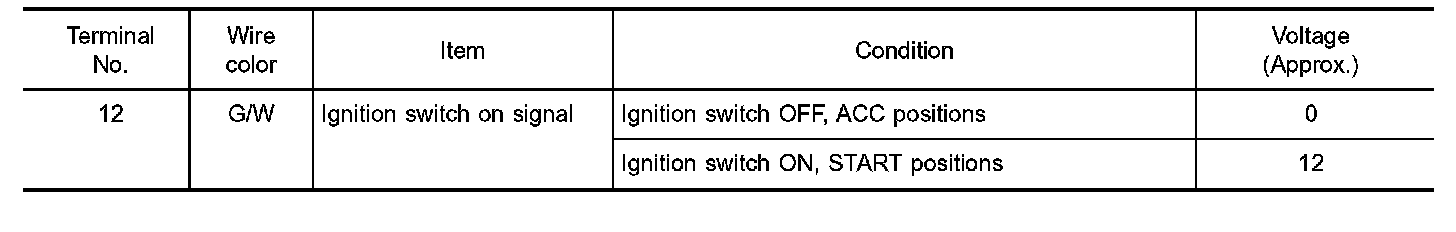

Daytime Light Control Unit Inspection Table (No: 12) (CANADA Only):
