DIODE CHECK
Check continuity using an ohmmeter.

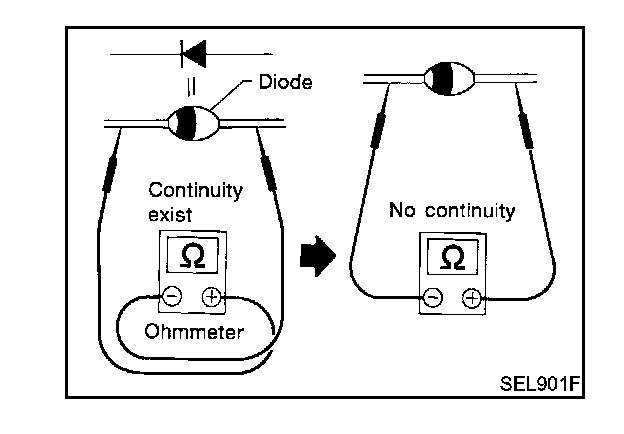

Diode is functioning properly if test results are as shown in the figure.

NOTE: Specification may vary depending on the type of tester. Before performing this inspection be sure to refer to the instruction manual of the tester to be used.

Check diodes at the combination meter harness connector instead of the combination meter assembly. Refer to Diagrams/Electrical/EL-WARN.
