Fuel Level Sensor Unit Check

Electrical Components Inspection






FUEL LEVEL SENSOR UNIT CHECK
Refer to "Removal".





With VG33E and VG33ER

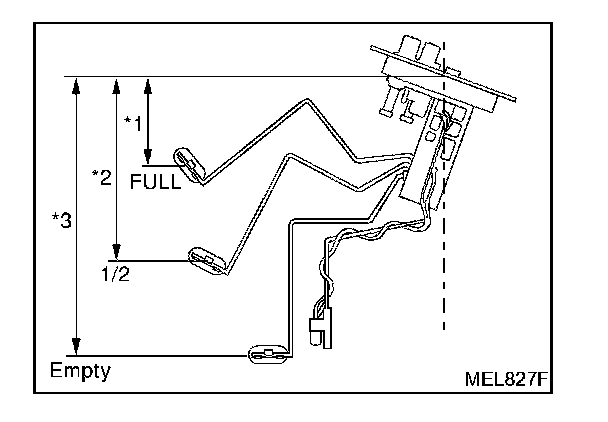

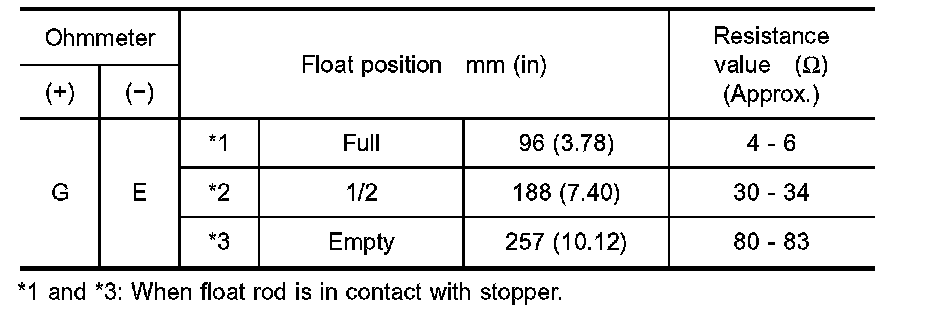

Check the resistance between fuel level sensor unit terminals G and E.
