Engine Room Harness

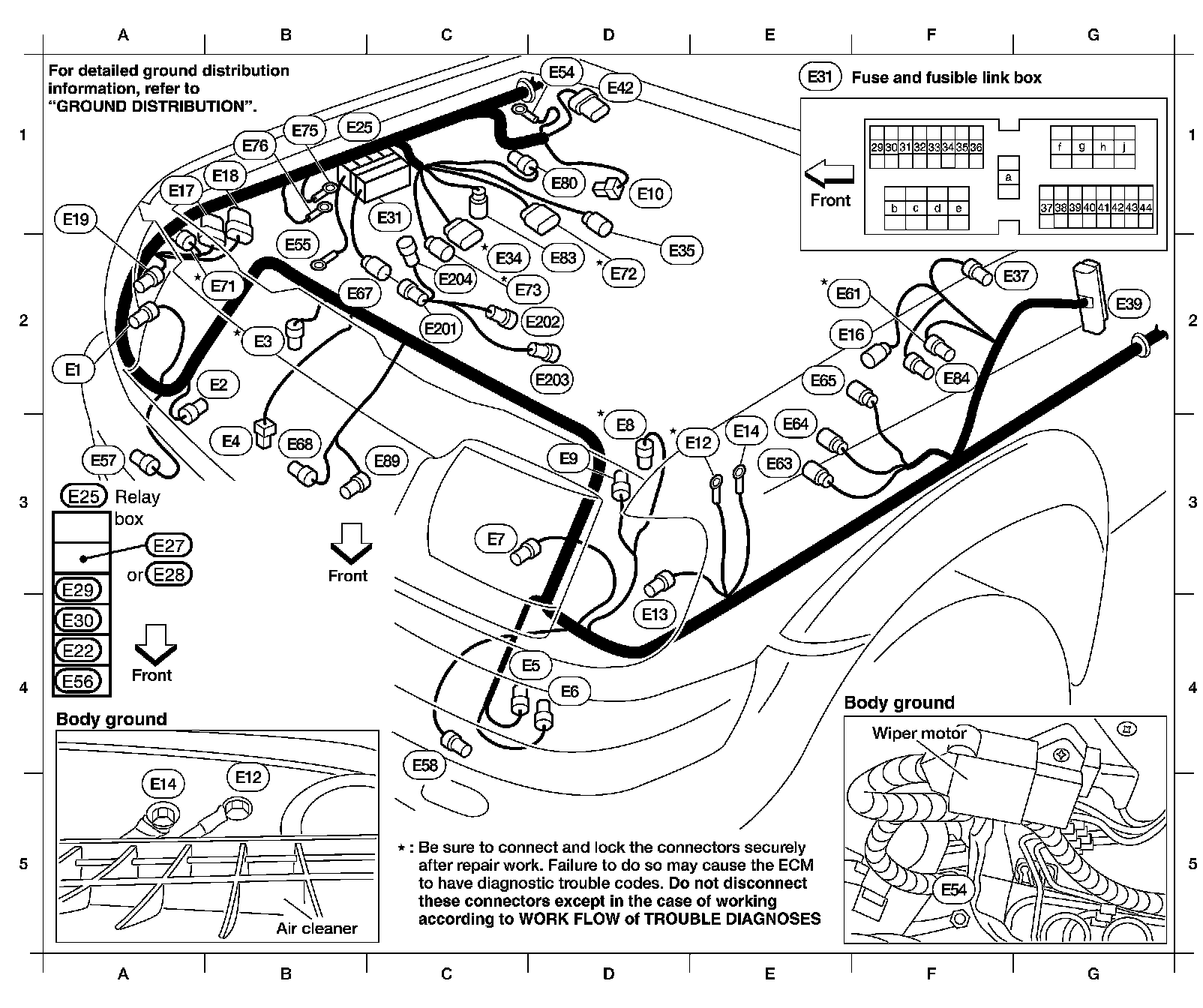

Engine Room Harness - Engine Compartment Part 1:

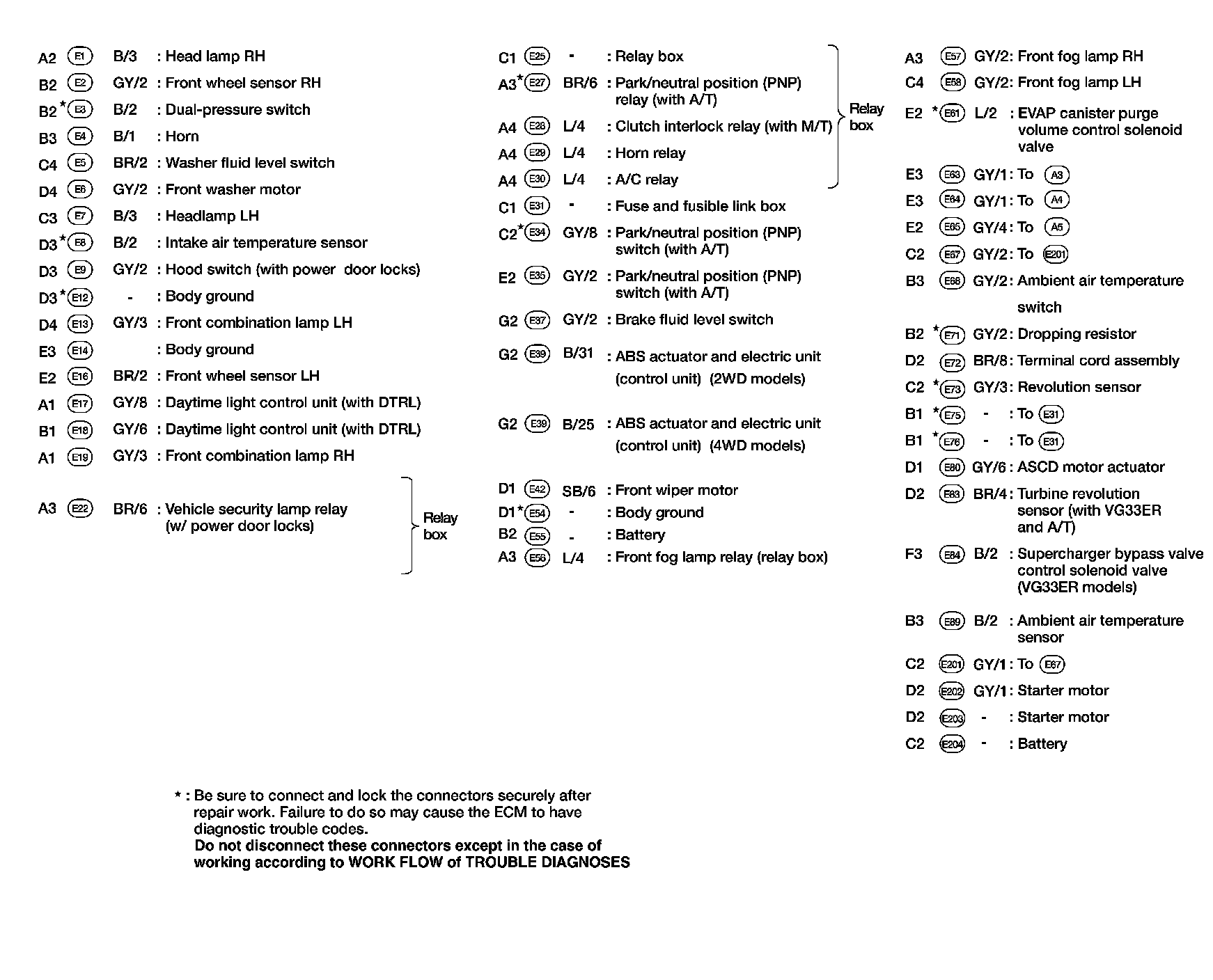

Engine Room Harness - Engine Compartment Part 2:

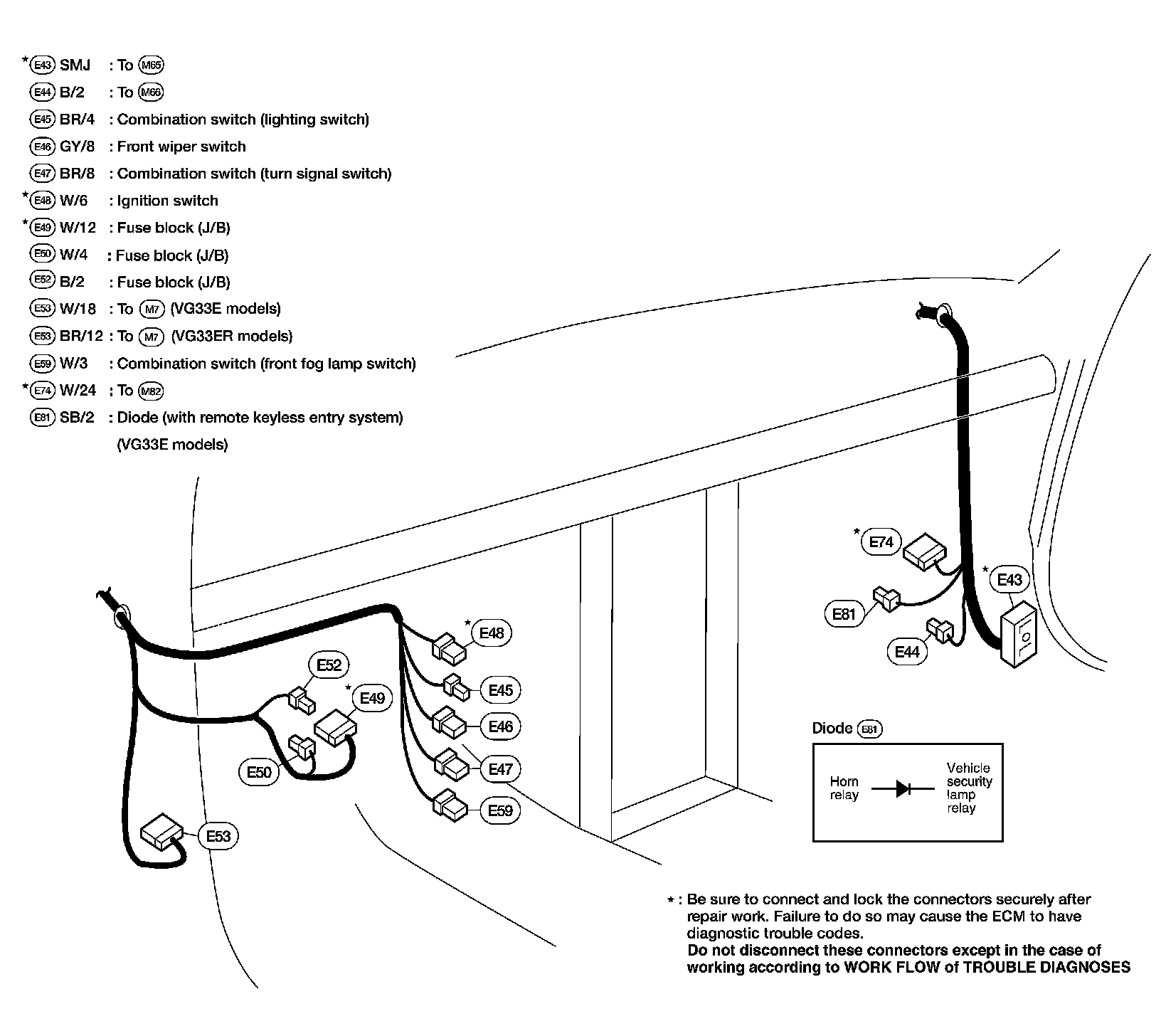

Passenger Compartment:
