Trim Panel: Service and Repair
Removal and InstallationCAUTION: Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

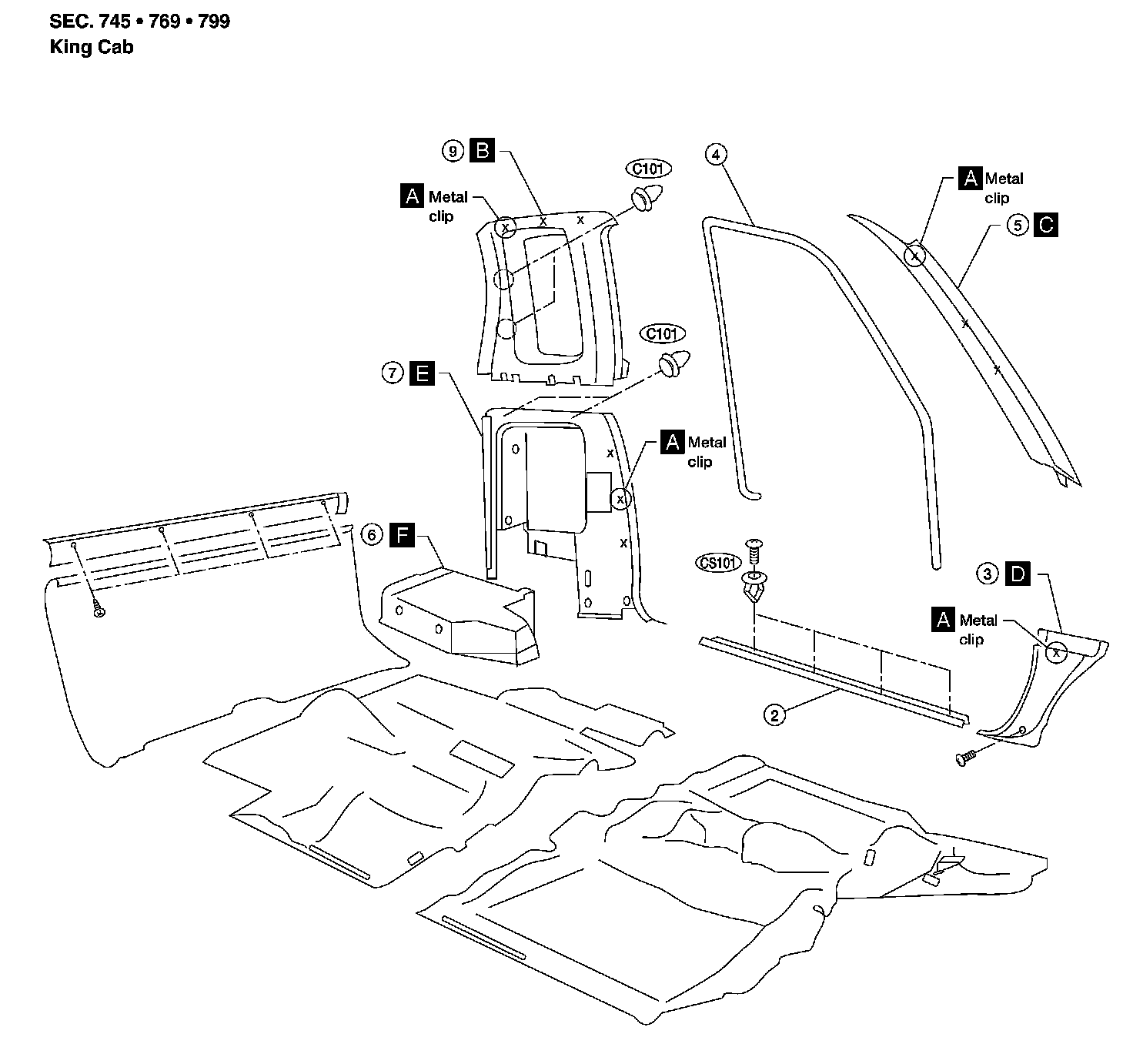

BODY SIDE TRIM
King Cab:
King Cab:

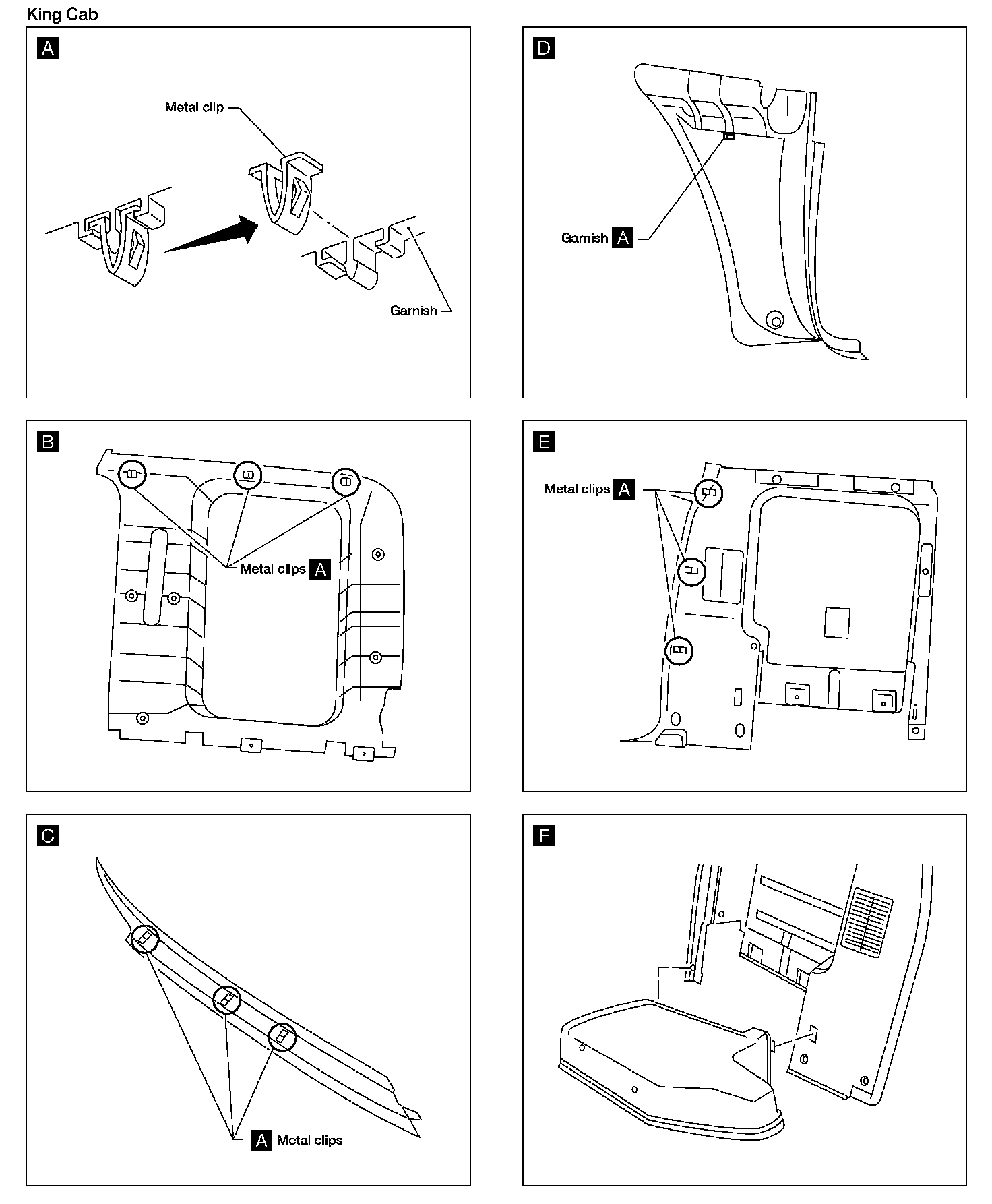

King Cab Model
1. Remove front and jump seats. Refer to "Removal and Installation".
2. Remove kicking plates.
3. Remove dash side lower finishers. D
4. Remove body side welts.
5. Remove front pillar garnishes. [C]
6. Remove jack cover. [F]
7. Remove lower rear pillar garnishes. [E]
8. Remove seat belt upper guide loop. Refer to "Front Seat Belt", and "Rear Seat Belt".
9. Remove upper rear pillar garnishes. [B]
