Headliner: Service and Repair

King Cab:

Removal and Installation

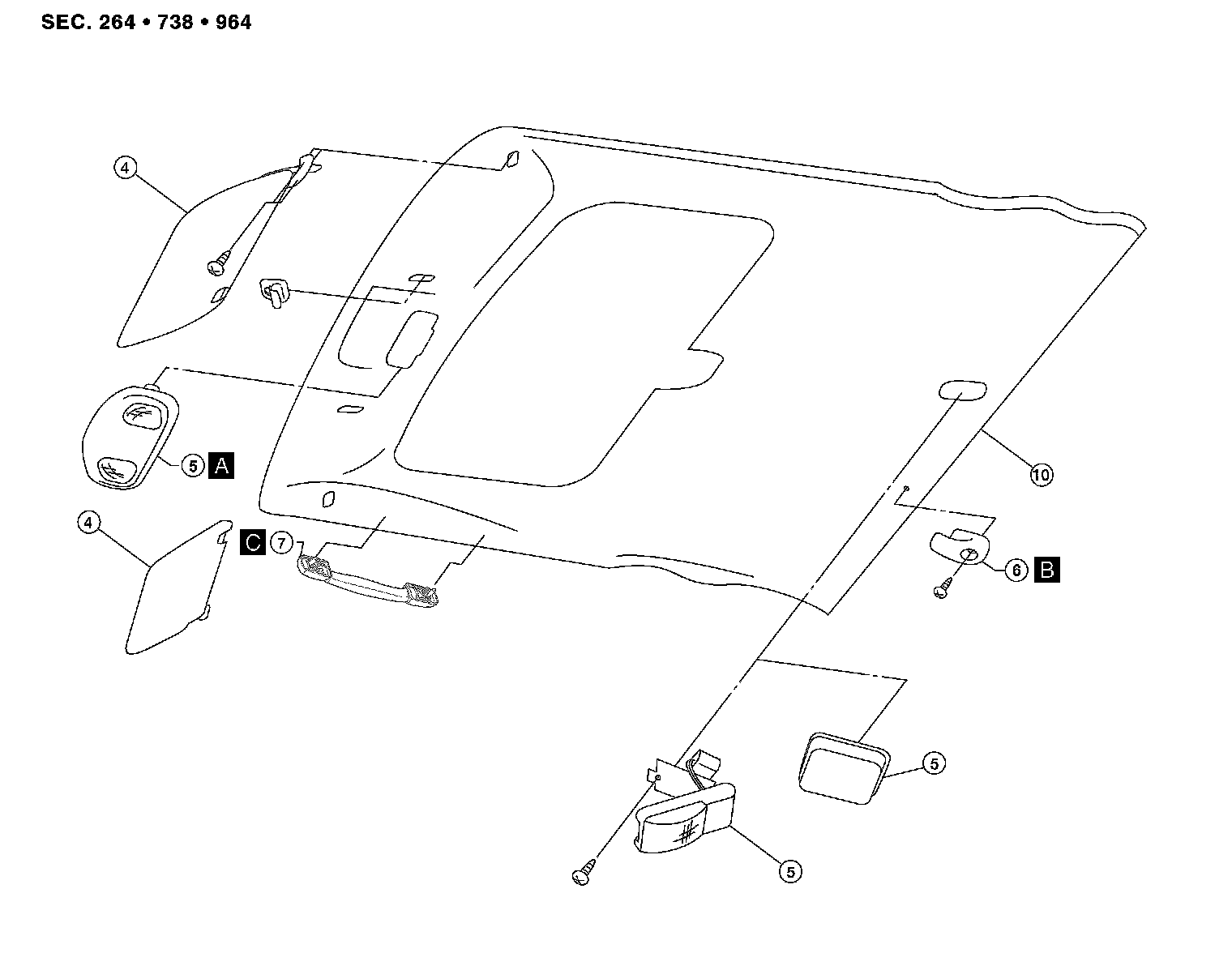

1. Remove front and jump seats if equipped. Refer to "Removal and Installation".
2. Remove front seat belt. Refer to "Front Seat Belt".
3. Remove body side trim. Refer to "Side and Floor Trim".
4. Remove sun visors.
5. Remove interior lamp assembly. [A]
6. Remove coat hook. [B]
7. Remove assist grip if equipped. [C]
8. Remove sunroof if equipped, refer to "SUNROOF".
9. Remove clips securing headlining.
10. Remove headlining.
