DTC P1705 THROTTLE POSITION SENSORDescription
- Throttle position sensor
The throttle position sensor detects the throttle valve position and sends a signal to the TCM.
- Throttle position switch
Consists of a wide open throttle position switch and a closed throttle position switch. The wide open position switch sends a signal to the TCM when the throttle valve is open at least 1/2 of the full throttle position. The closed throttle position switch sends a signal to the TCM when the throttle valve is fully closed.

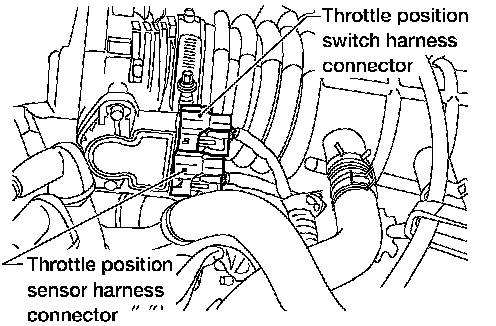

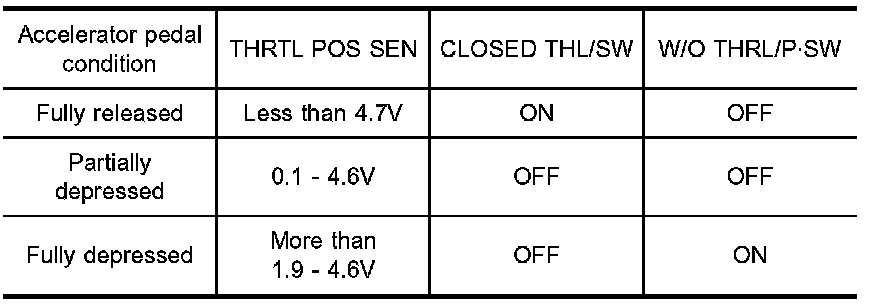

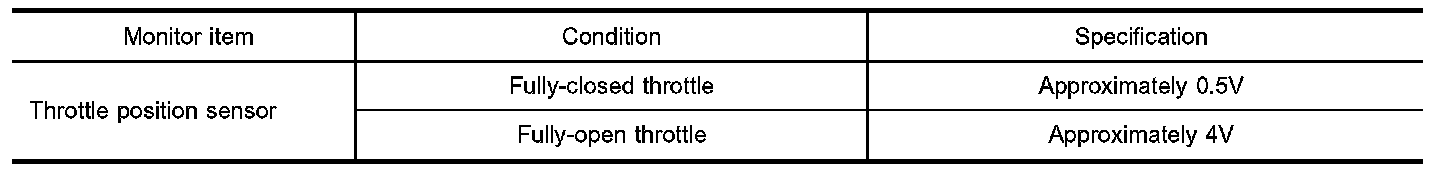

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.

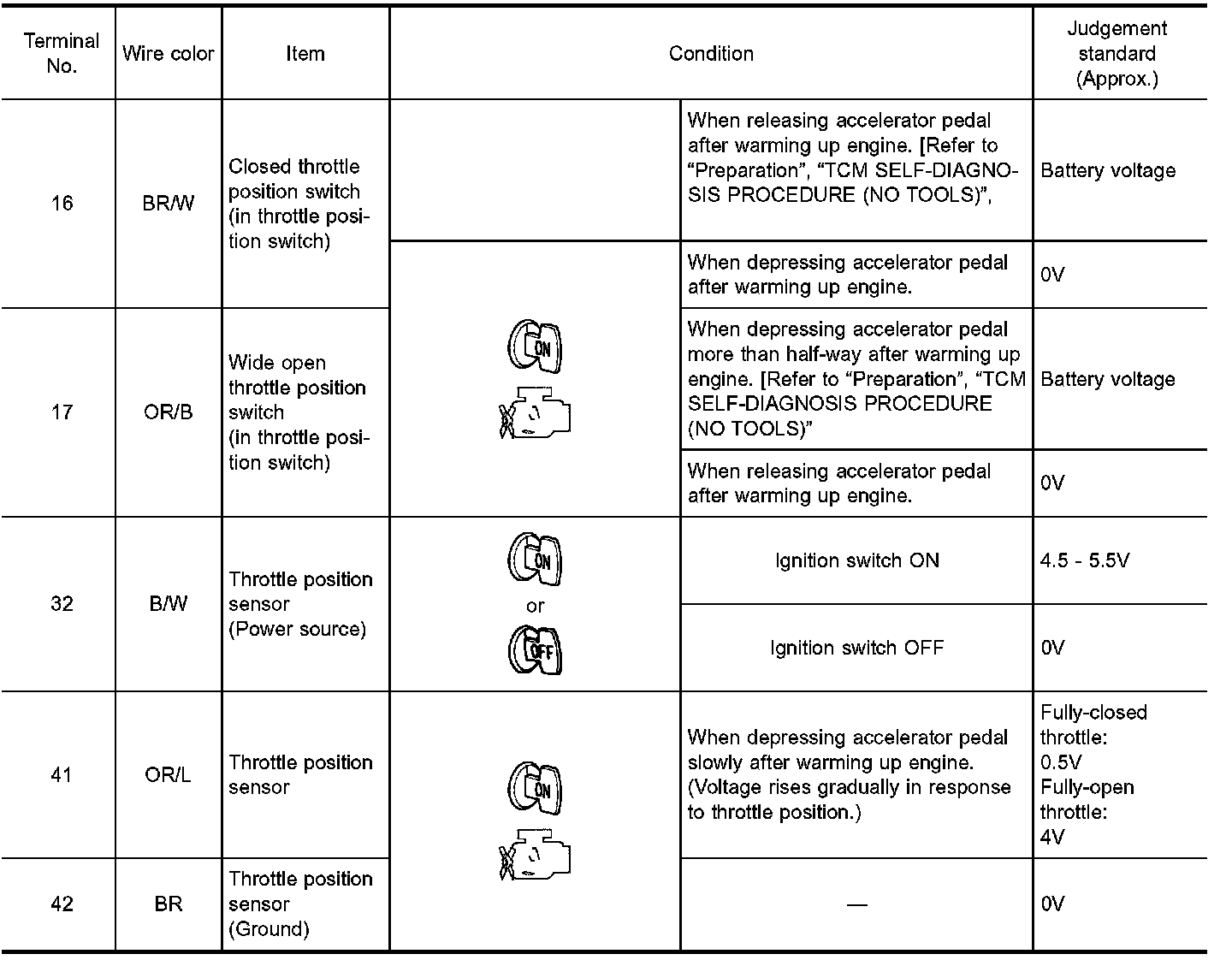

TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.

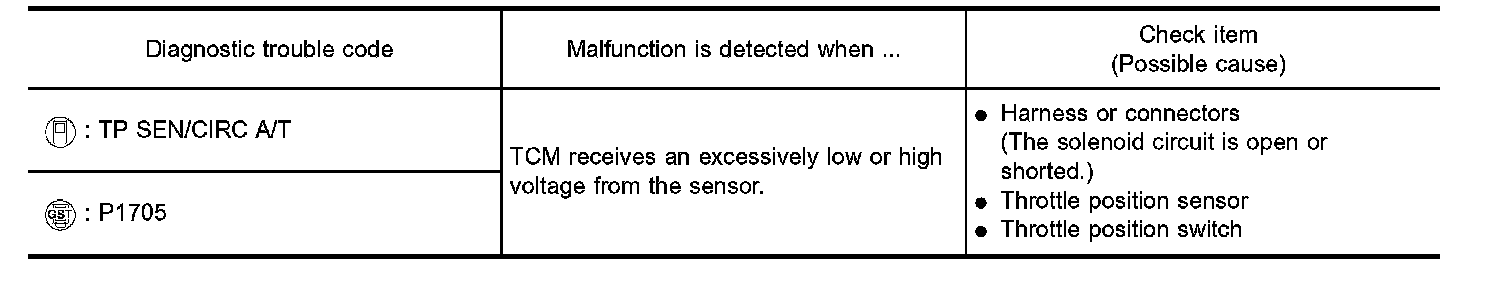

ON BOARD DIAGNOSIS LOGIC
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
CAUTION: Always drive vehicle at a safe speed.
NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II

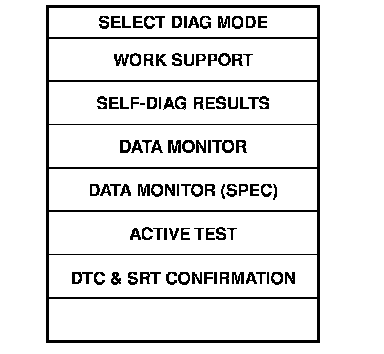

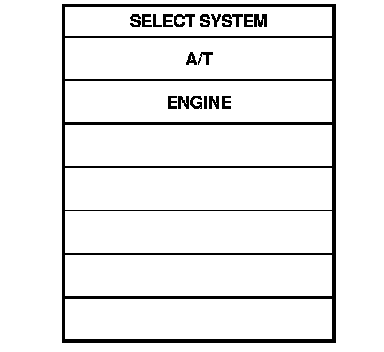

1) Turn ignition switch ON and select "DATA MONITOR" mode for "A/T" with CONSULT-II.

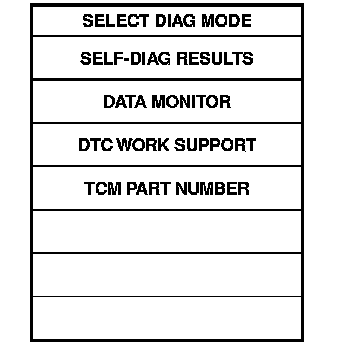

2) Apply vacuum to the throttle opener, then check the following. Refer to step 1 and step 2 of "Preparation", "TCM SELF-DIAGNOSIS PROCEDURE (NO TOOLS)".
If the check result is NO, go to "DIAGNOSTIC PROCEDURE", AT-327.
If the check result is OK, go to following step.

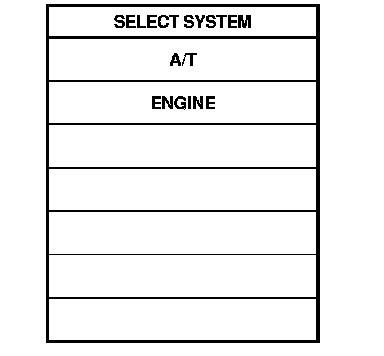

3) Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
4) Start engine and maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: Approximately 3 Volts or less Selector lever: D position (O/D ON)
If the check result is NO, go to "DIAGNOSTIC PROCEDURE", AT-327.
If the check result is OK, go to following step.
5) Maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more
Accelerator pedal: Wide open throttle
Selector lever: D position (O/D ON)
With GST
Follow the procedure "With CONSULT-II ".

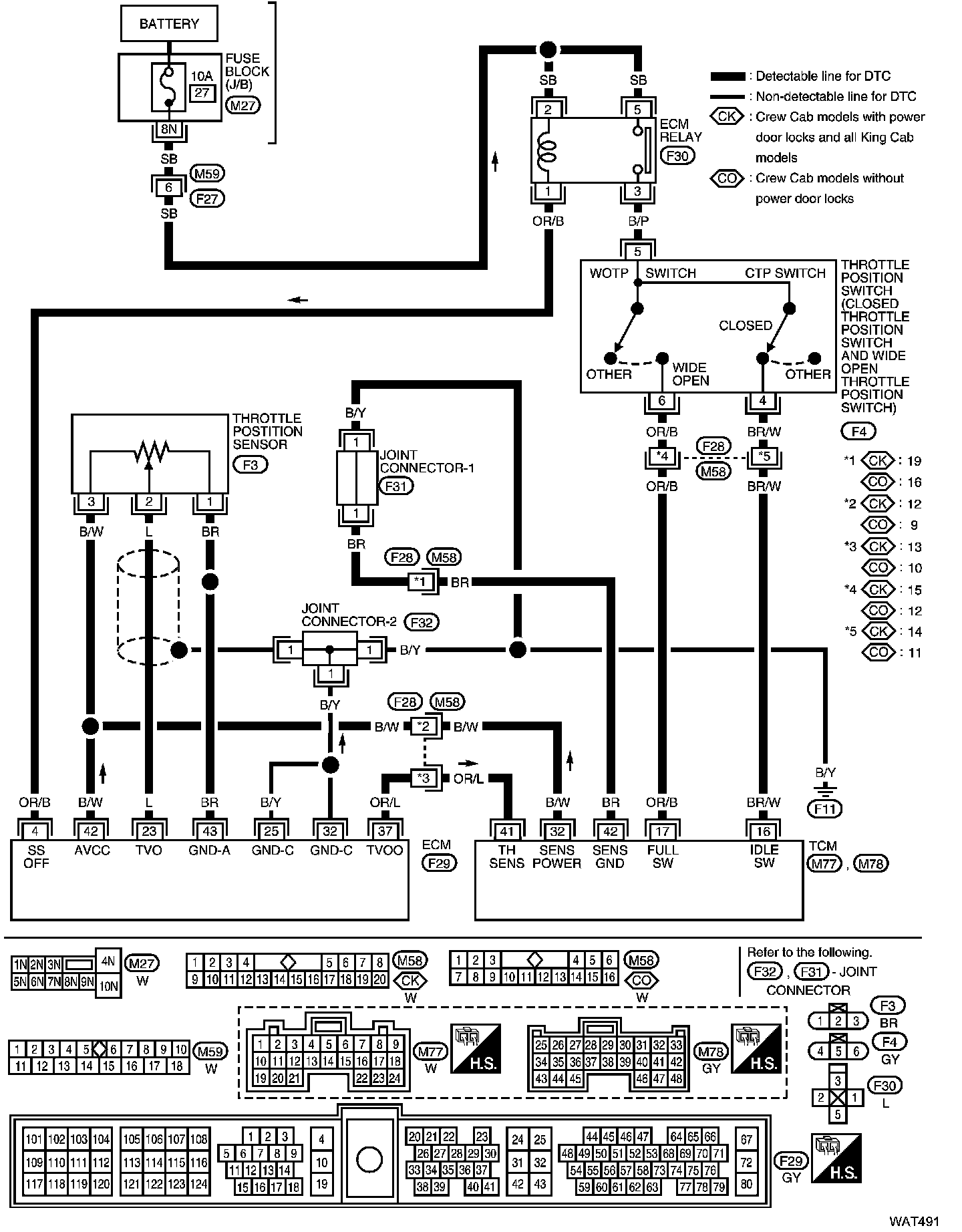

Wiring Diagram-AT-TPS

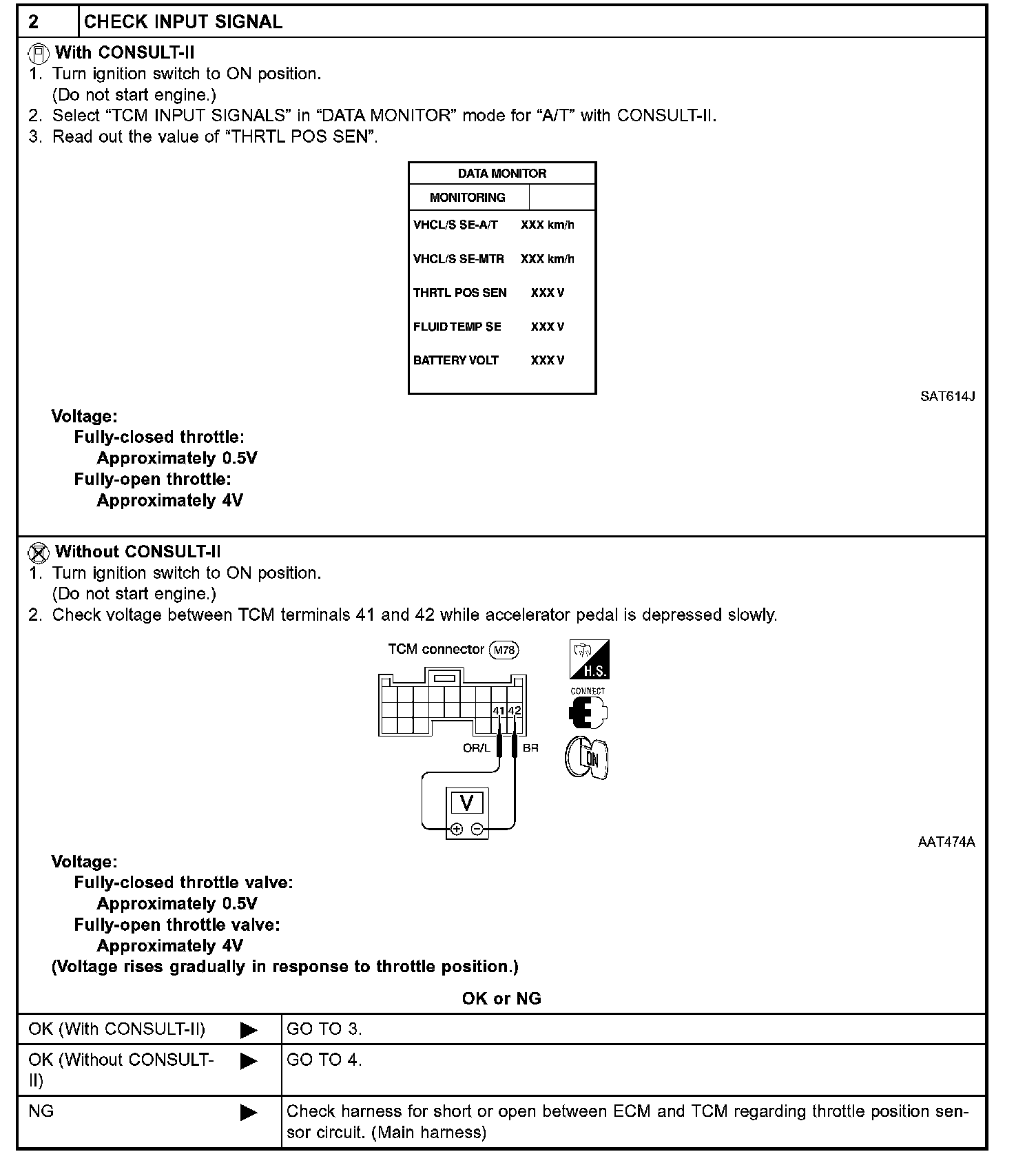

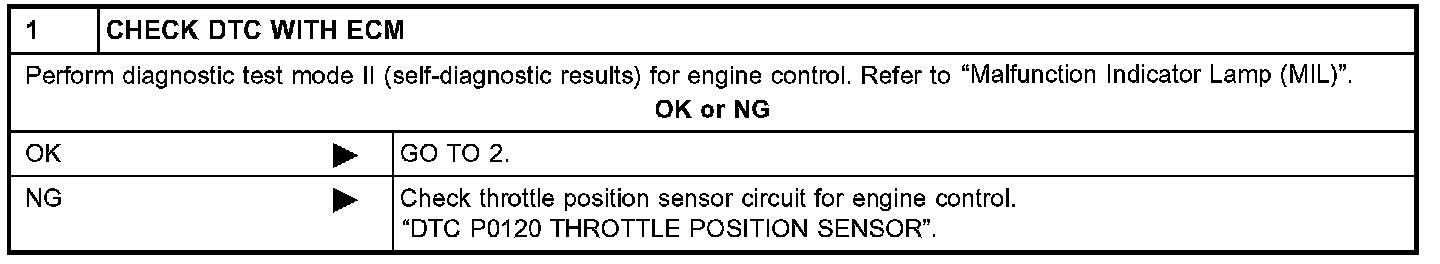

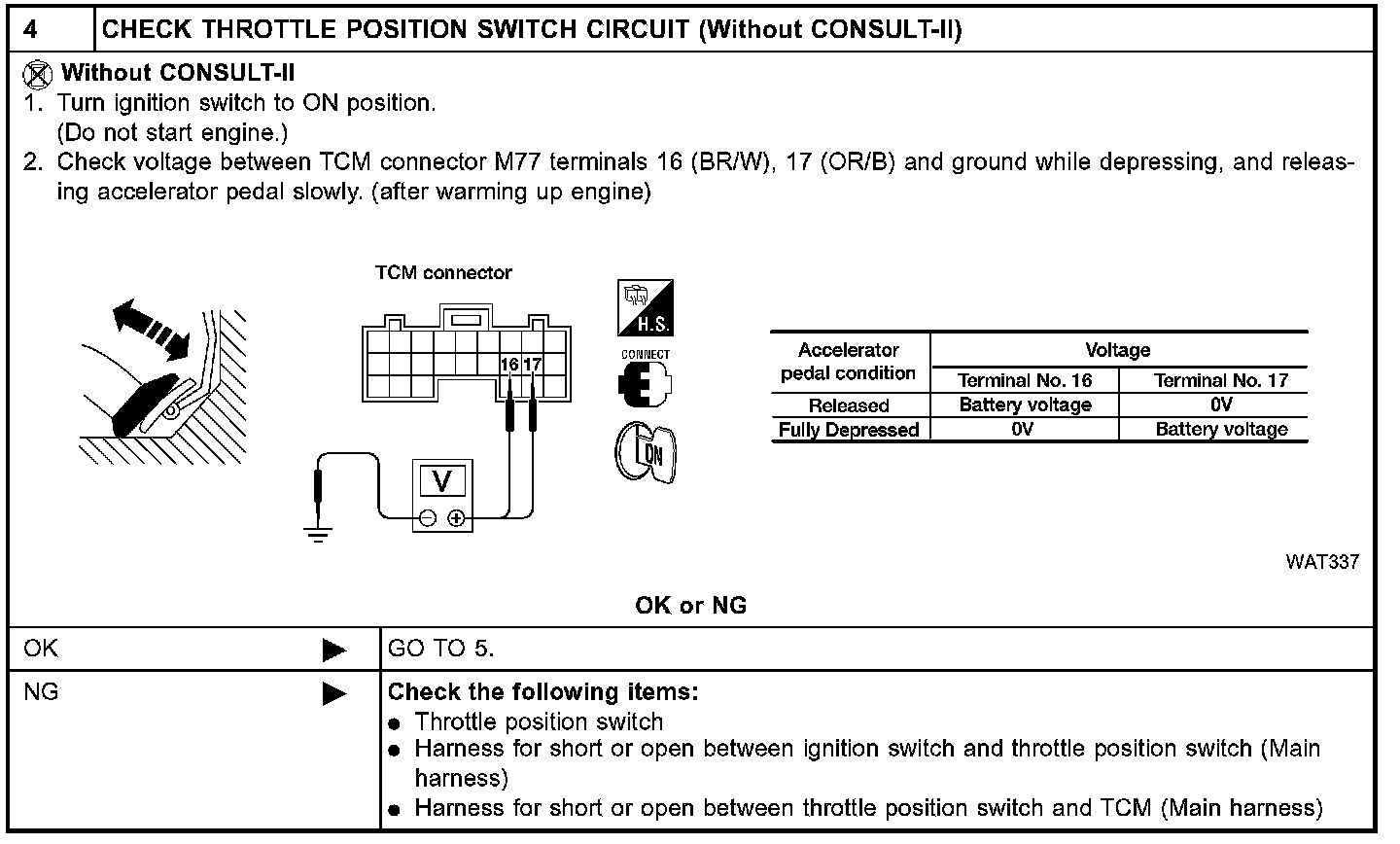

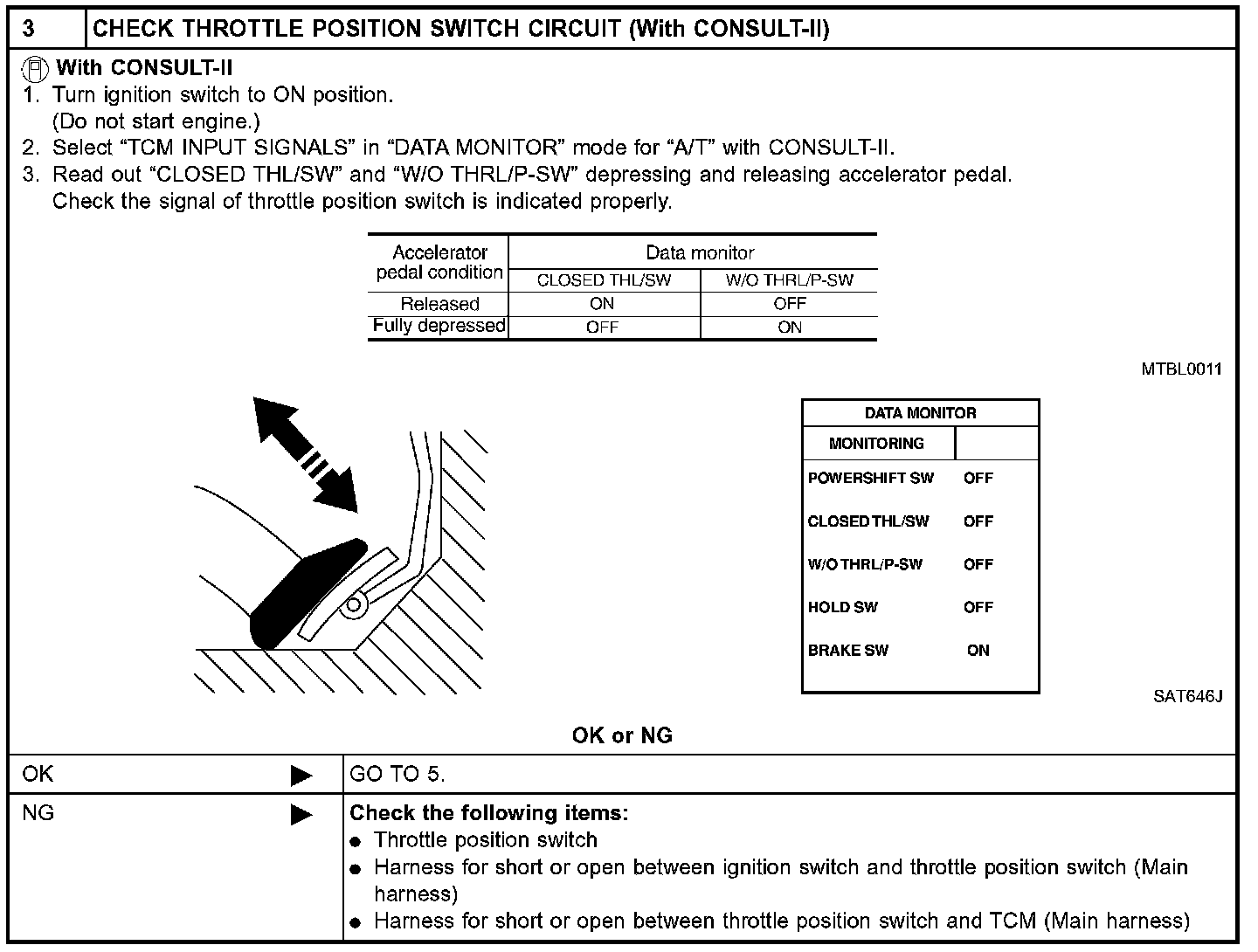

Diagnostic Procedure
1 of 5
2 of 5
3 of 5
4 of 5

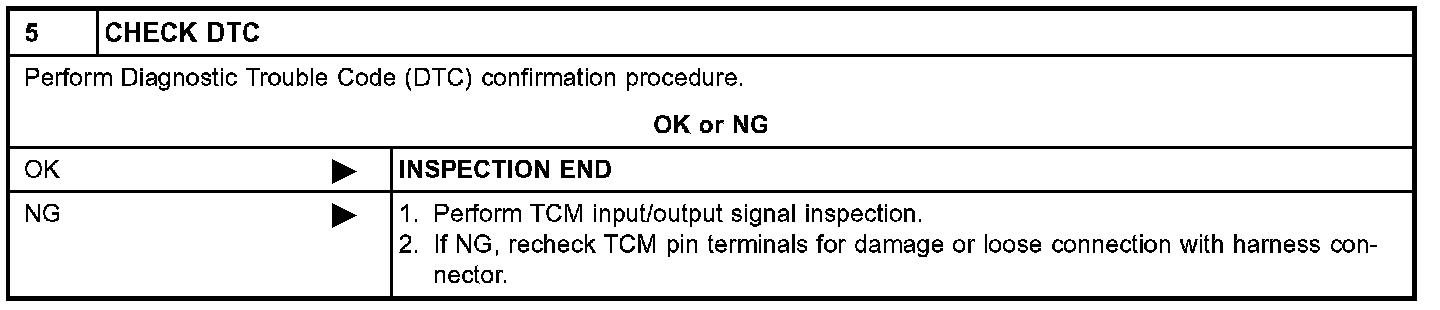

5 of 5
Component Inspection
THROTTLE POSITION SWITCH
Closed Throttle Position Switch (Idle position)

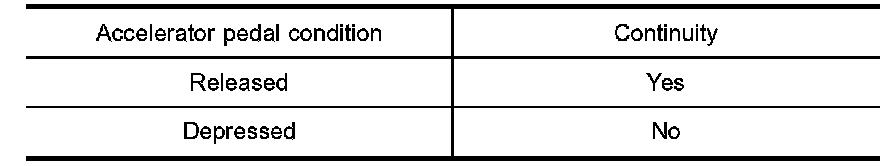

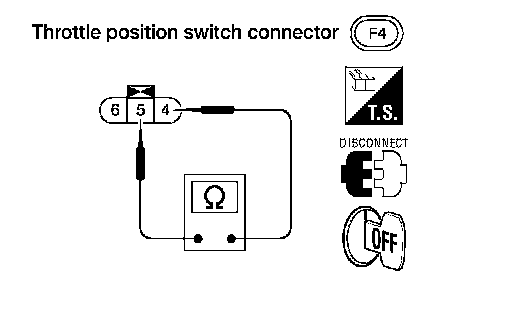

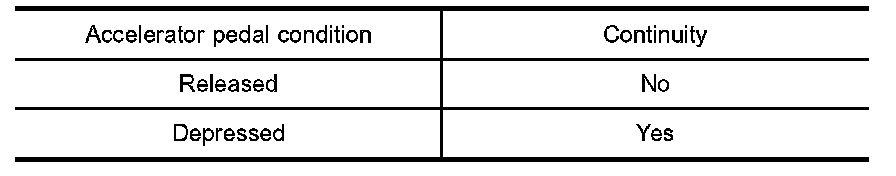

- Check continuity between terminals 4 and 5.
- To adjust closed throttle position switch, refer to "Basic Inspection".
Wide Open Throttle Position Switch

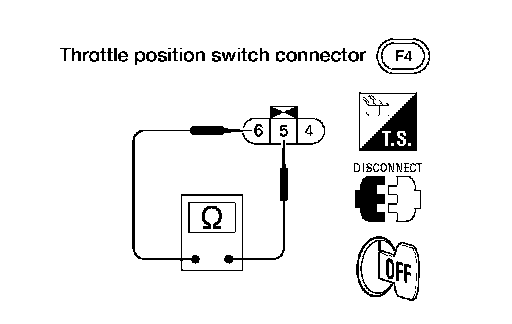

- Check continuity between terminals 5 and 6.
