P0406

DTC P0406 EGRT SENSOR

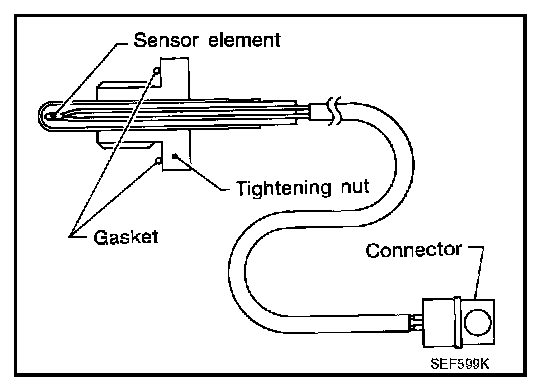

Component Description
The EGR temperature sensor detects temperature changes in the EGR passageway. When the EGR valve opens, hot exhaust gases flow, and the temperature in the passageway changes. The EGR temperature sensor is a thermistor that modifies a voltage signal sent from the ECM. This modified signal then returns to the ECM as an input signal. As the temperature increases, EGR temperature sensor resistance decreases. This sensor is not used to control the engine system.
It is used only for the on board diagnosis.

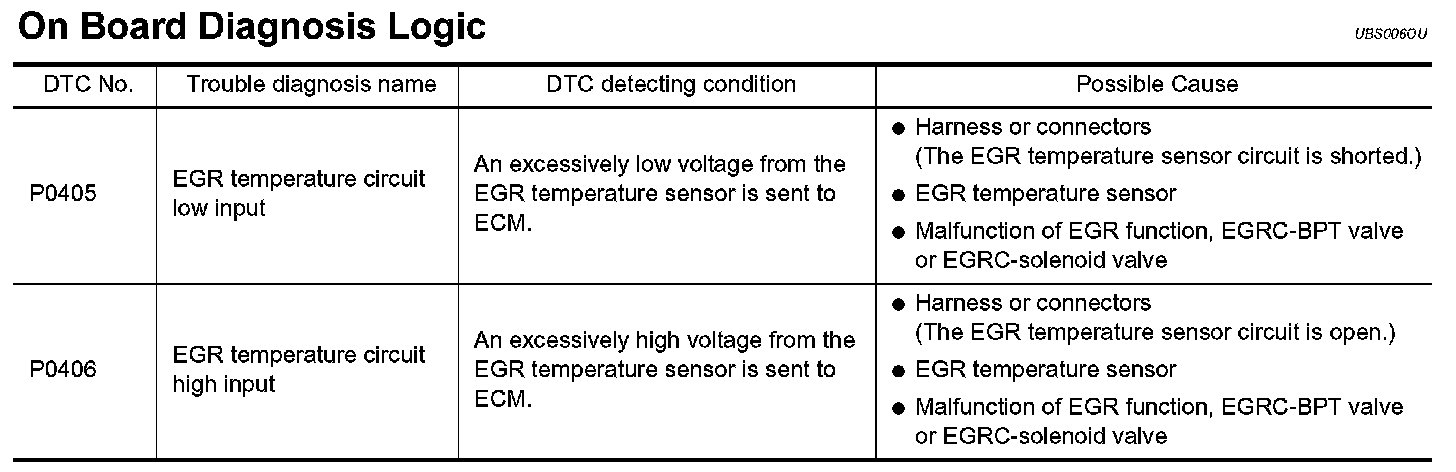

On Board Diagnosis Logic:

DTC Confirmation Procedure
Perform PROCEDURE FOR DTC P0405 first. If 1st trip DTC cannot be confirmed, perform PROCEDURE FOR DTC P0406.

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.

PROCEDURE FOR DTC P0406

CAUTION: Always drive vehicle at a safe speed.

With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Confirm that EGR valve is not lifting.
If the result is NG, perform trouble diagnosis for DTC P1402. Refer to DTC P1402.

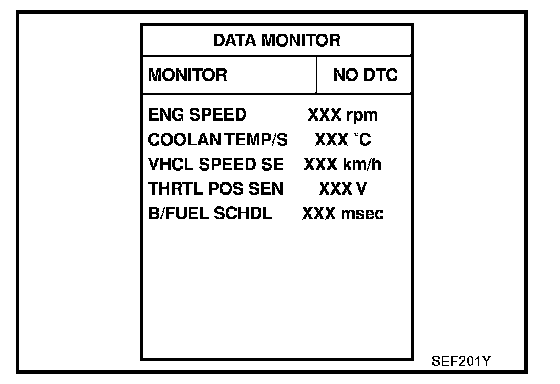

3. Select DATA MONITOR mode with CONSULT-II.
4. Read EGR TEMP SEN at about 1,500 rpm while holding the EGR valve in full open position by hand.
Voltage should decrease to less than 1.5V.
If the result is NG, go to "Diagnostic Procedure" below. If the result is OK, go to following step.
5. Turn ignition switch OFF and wait at least 5 seconds.
6. Turn ignition switch ON.
7. Check the output voltage of THRTL POS SEN (at closed throttle position) and note it.
8. Start engine.

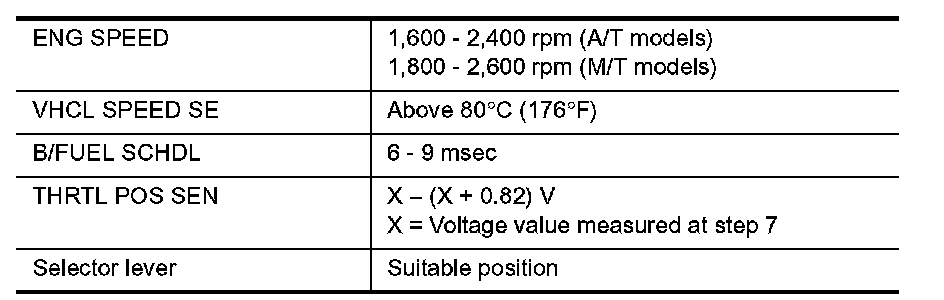

9. Maintain the following conditions for at least 5 consecutive seconds.
10. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

Overall Function Check
Use this procedure to check the overall function of the EGR temperature sensor. During this check, a 1st trip DTC might not be confirmed.

PROCEDURE FOR DTC P0406

Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.




2. Confirm that EGR valve is not lifting. If NG, perform trouble diagnosis for DTC P1402. Refer to DTC P1402.

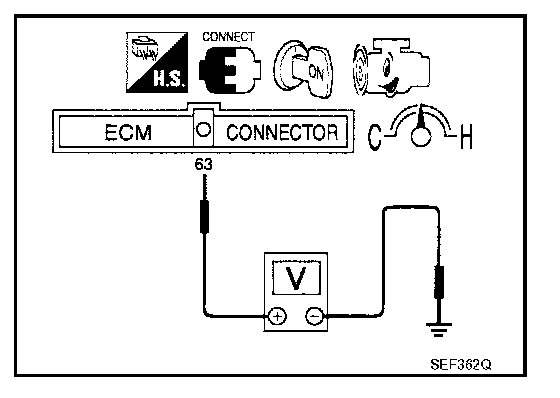

3. Check voltage between ECM terminal 63 (EGR temperature sensor signal) and ground at about 1,500 rpm with EGR valve lifted up to the full position by hand.
Voltage should decrease to less than 1.5V.
4. If NG, go to "Diagnostic Procedure" below.
If OK, perform trouble Diagnosis for DTC P0400 and P1400. Refer to P0400 and P1400.

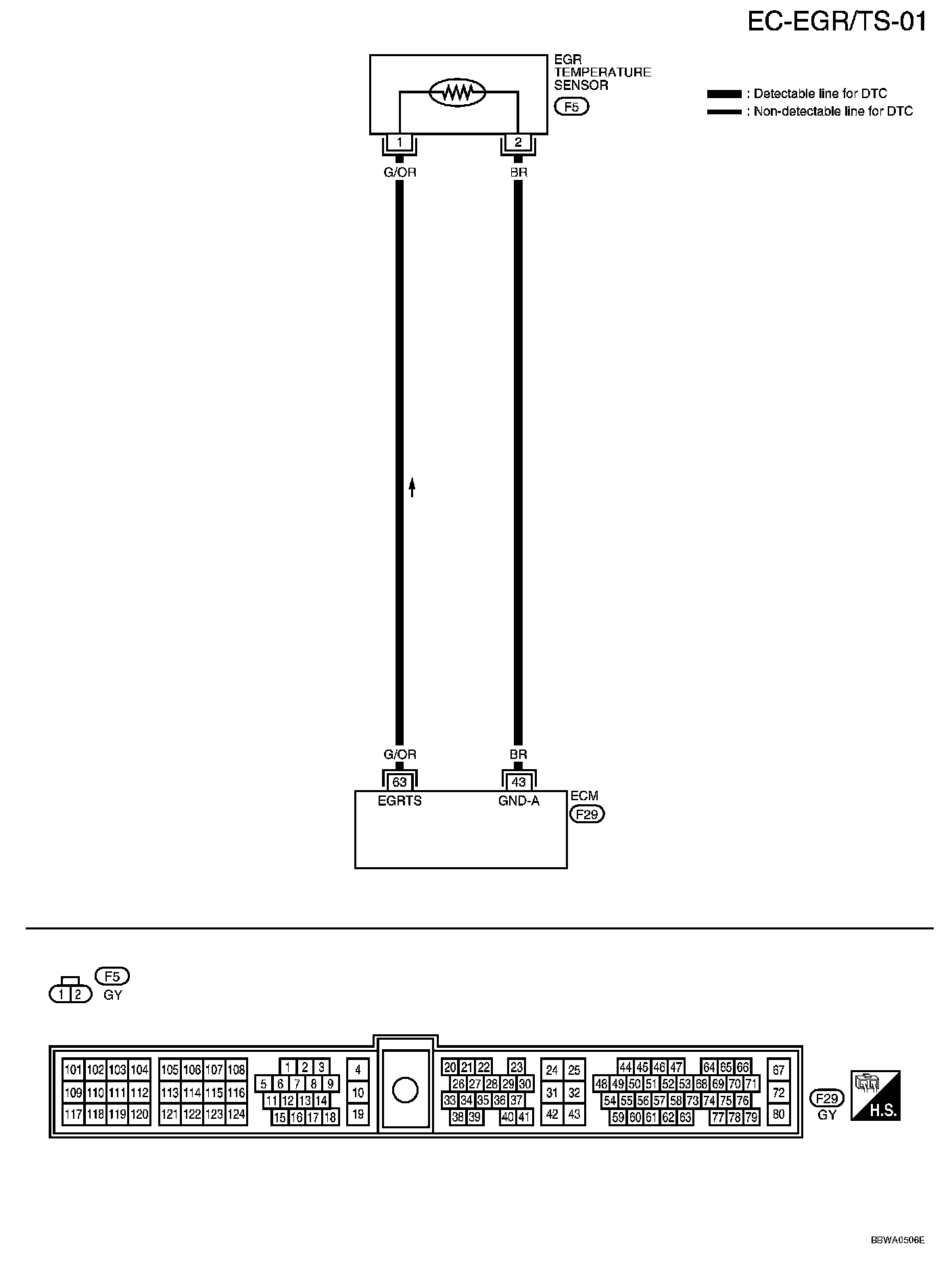

Wiring Diagram

EC-EGR/TS-01:

Diagnostic Procedure

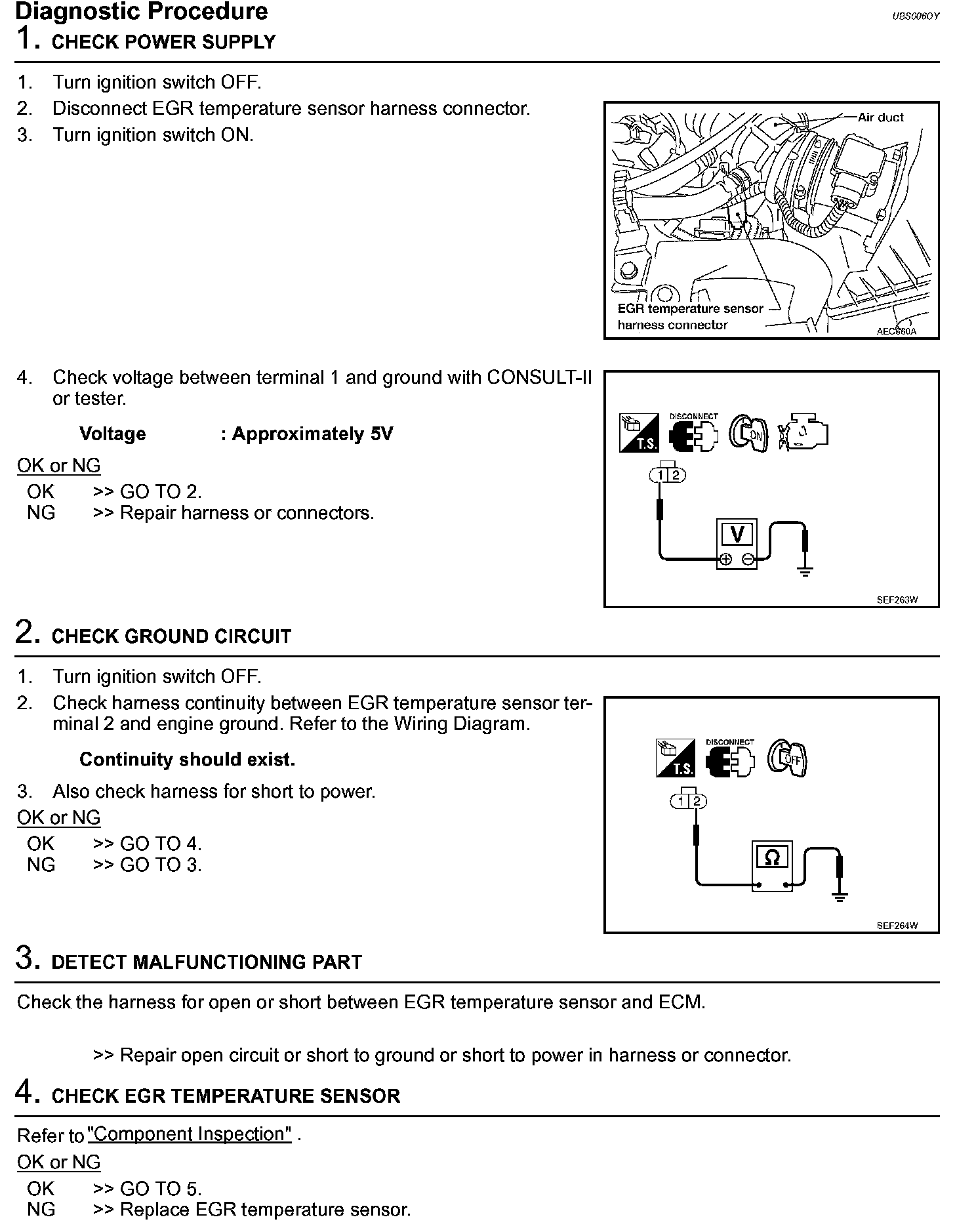

Diagnostic Procedure 1 - 4:

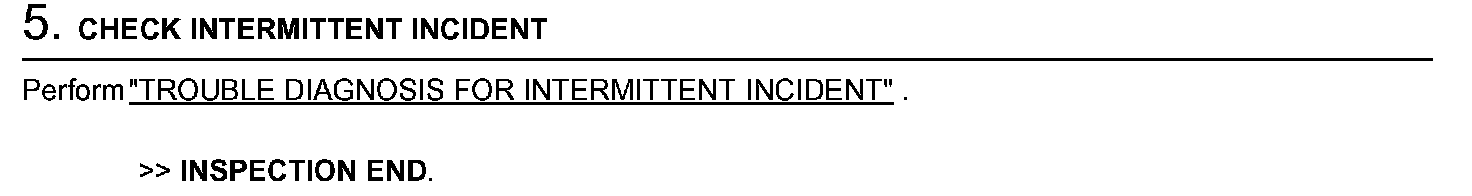

Diagnostic Procedure Step 5:

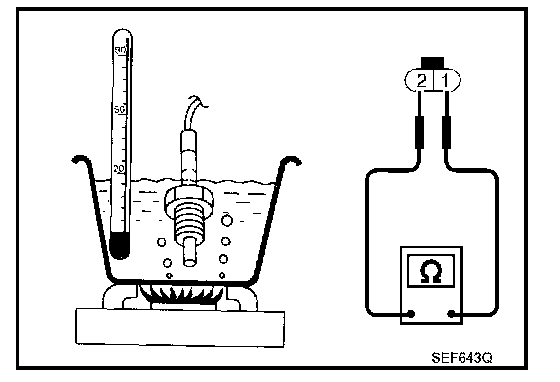

Component Inspection

EGR TEMPERATURE SENSOR

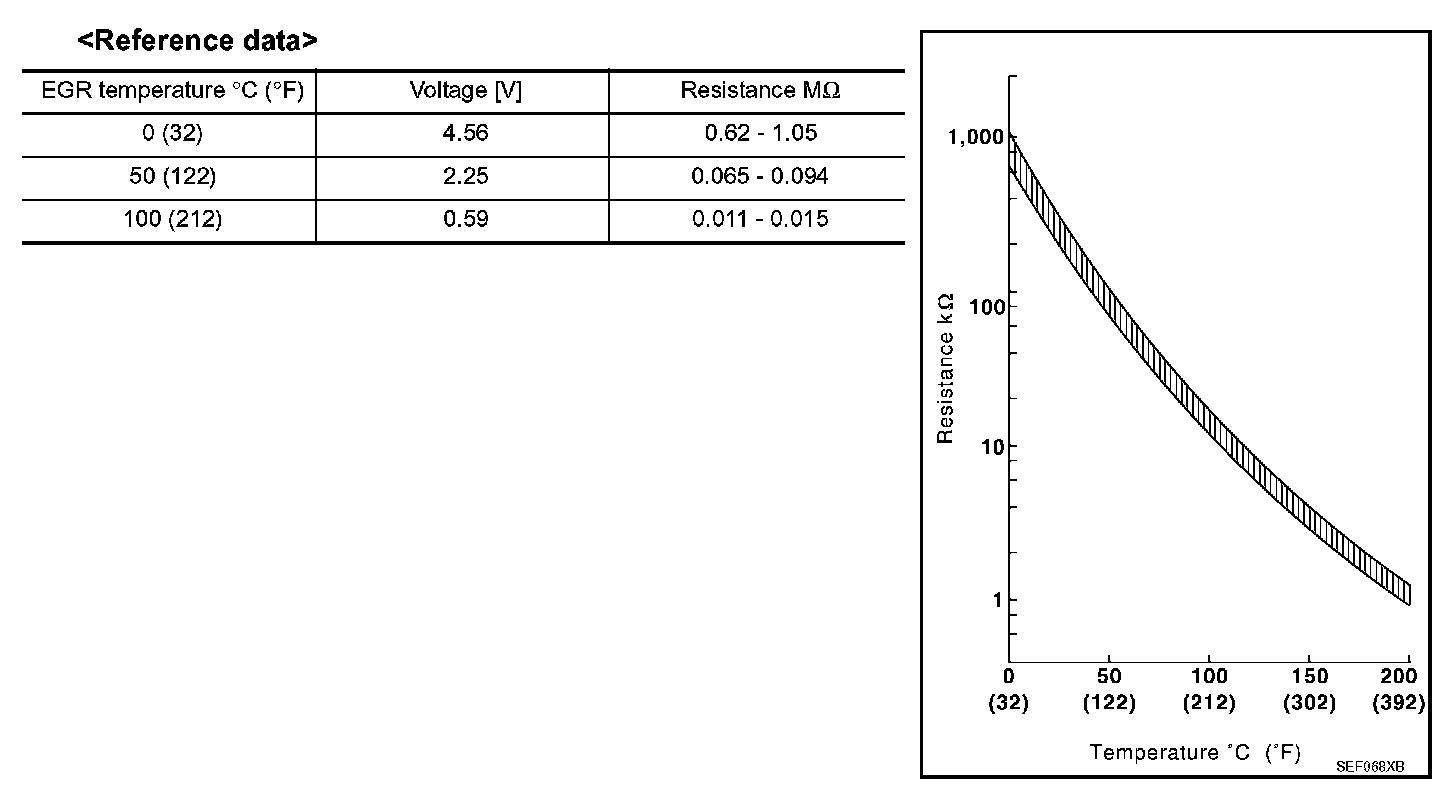

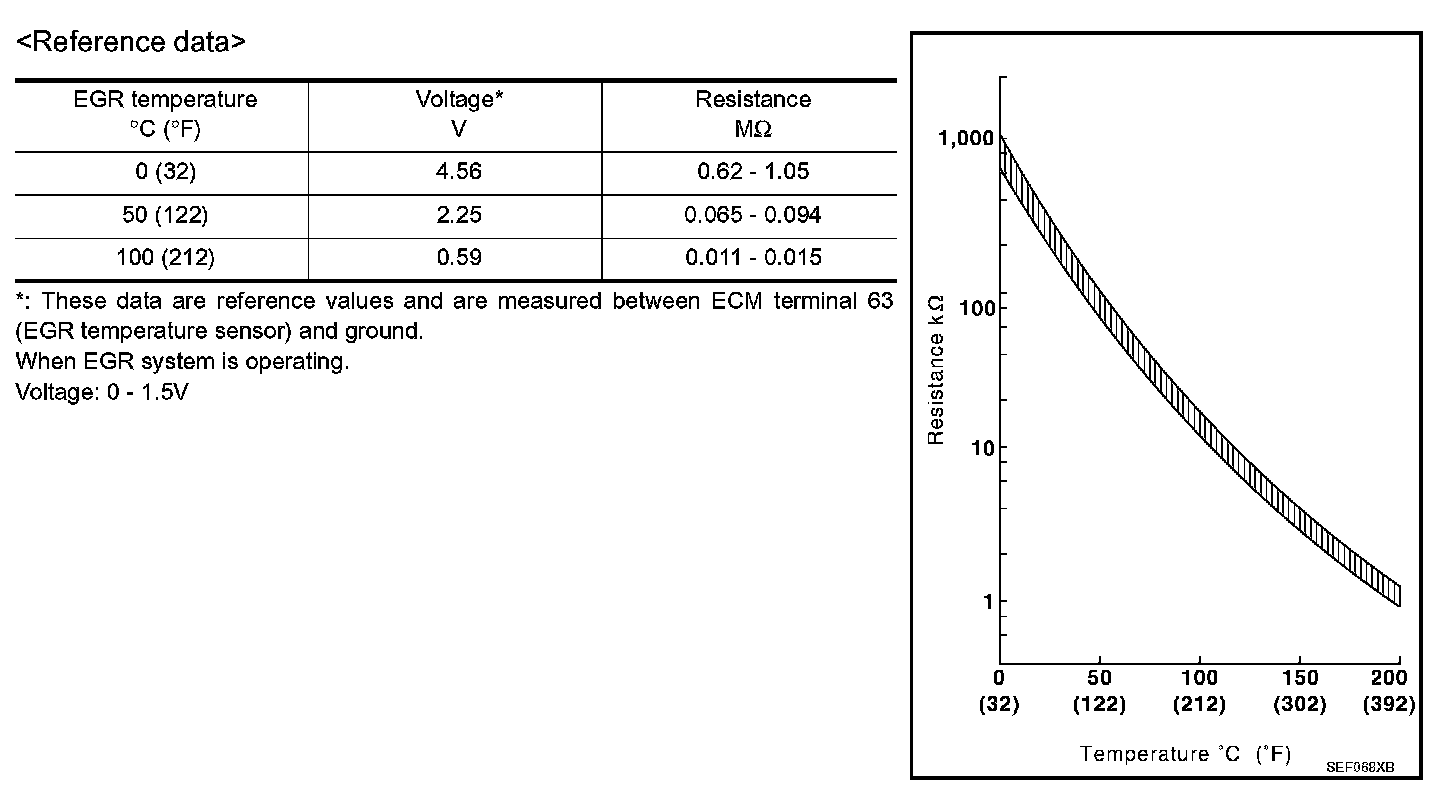

1. Check resistance change and resistance value.




2. If NG, replace EGR temperature sensor.
