Home >> Nissan-Datsun Truck >> 2002 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Windows and Glass >> Heated Glass Element >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> With Power Door Locks

With Power Door Locks

Step 1:

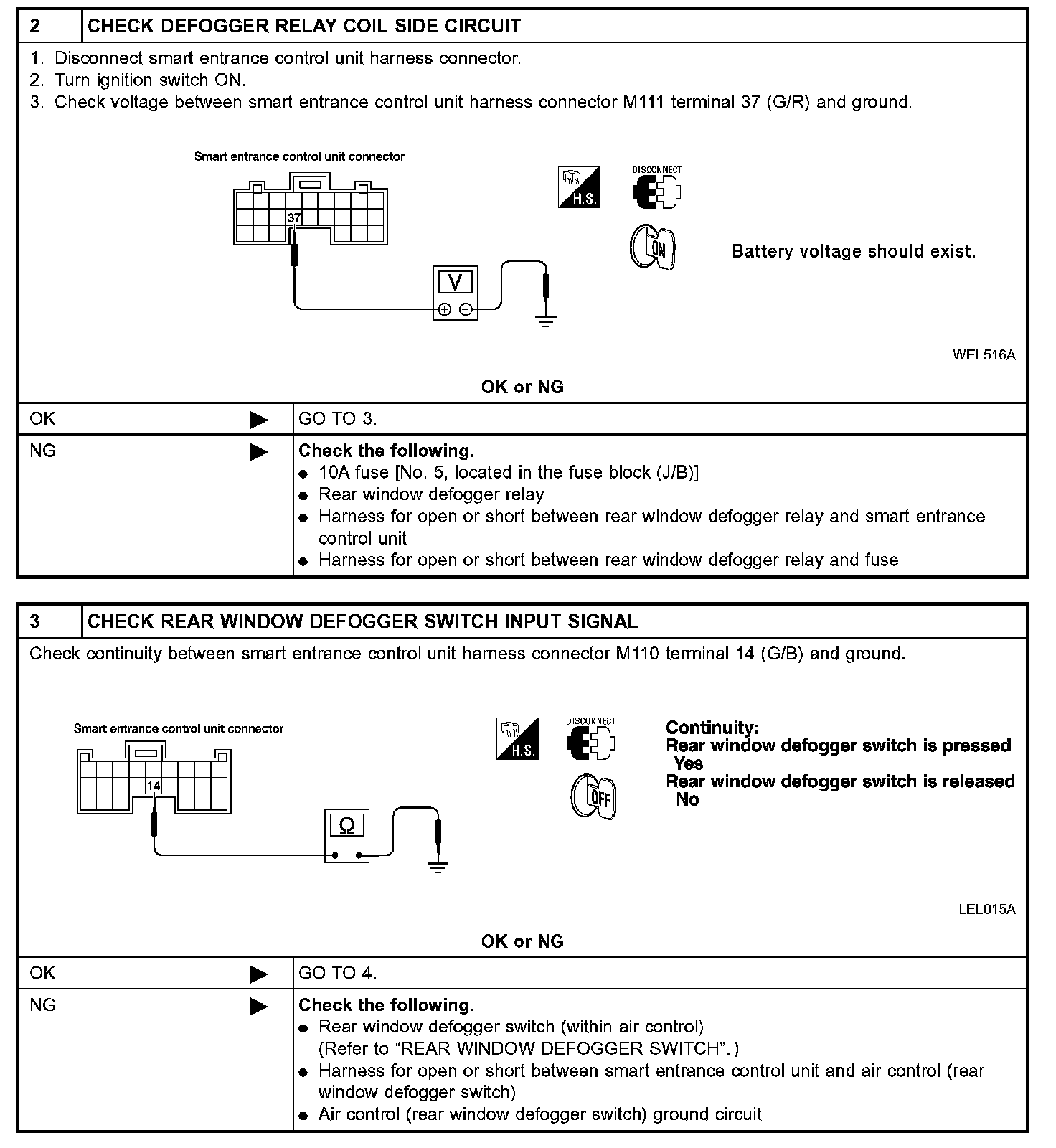

Step 2 - 3:




Step 4 - 5:




DIAGNOSTIC PROCEDURE

SYMPTOM: Rear window defogger does not activate, or does not turn off after activating.
