Filament Check

Filament Check

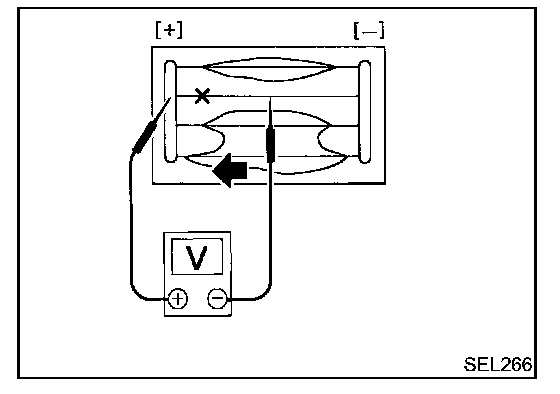

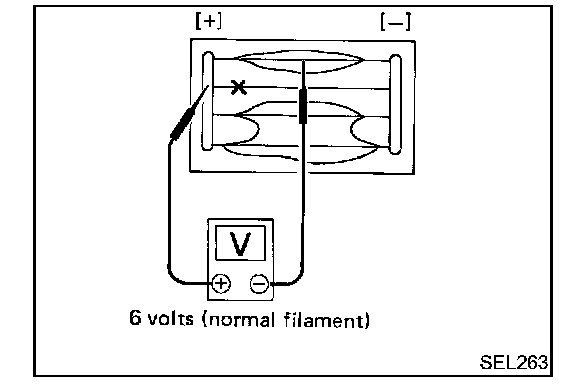

1. Attach probe circuit tester (in volt range) to middle portion of each filament.

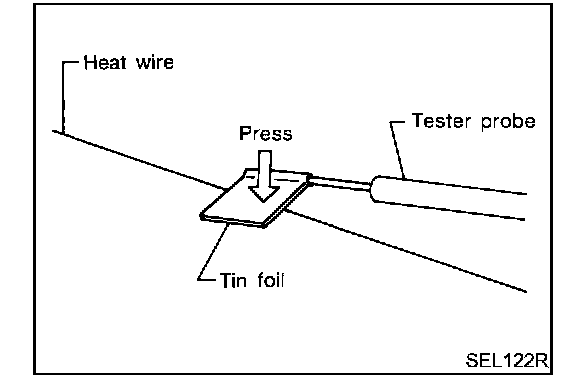

- When measuring voltage, wrap tin foil around the top of the negative probe. Then press the foil against the wire with your finger.

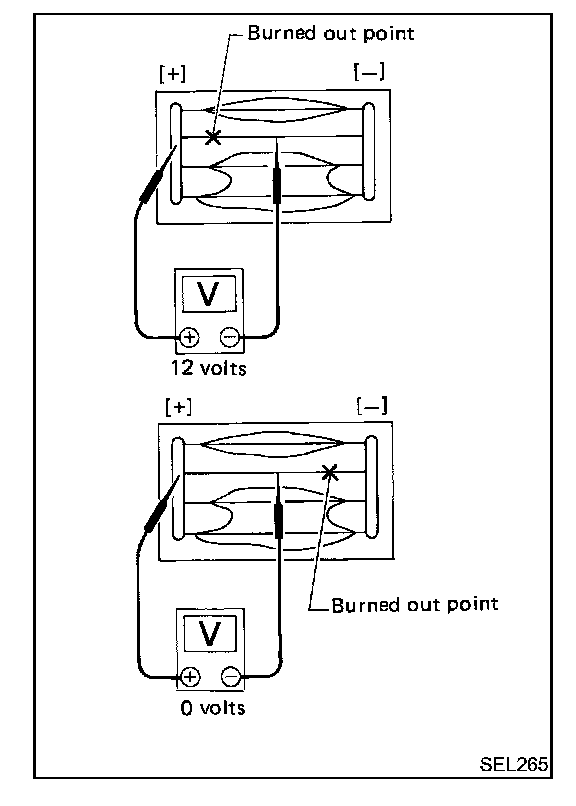

2. If a filament is burned out circuit tester registers 0 or 12 volts.




3. To locate burned out point move probe to left and right along filament. Test needle will swing abruptly when probe passes the point.
