Shift Control Components

SHIFT CONTTROL COMPONENTS / INSPECTION

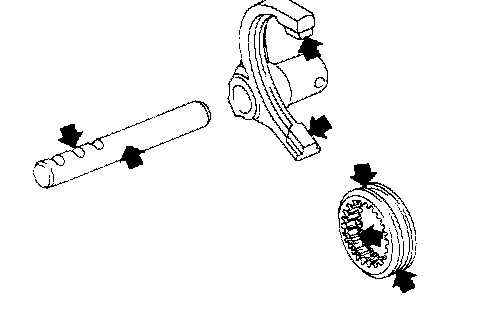

Check contact surface and sliding surface for wear, scratches, projections or other faulty conditions.

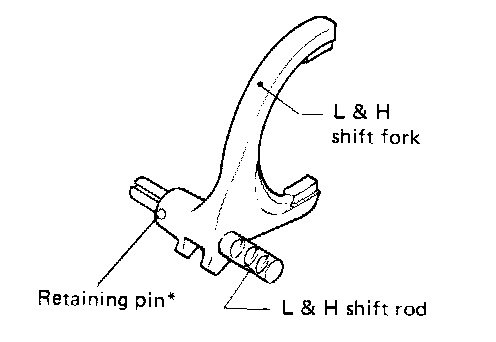

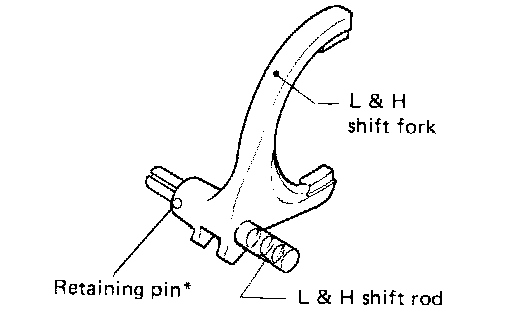

L & H Shift Rod & Fork
Assemble as shown in illustration.
* Retaining pin is the same size as the one for 2-4 shift rod.

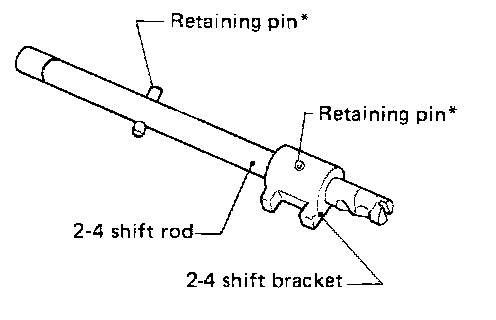

2-4 Shift Rod & Fork
Assemble as shown in illustration.
* Retaining pins are the same size.

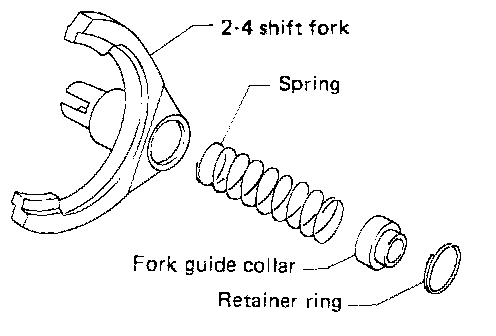

Pay special attention to the direction of fork guide collar.
