Rear Case

REAR CASE / REMOVAL






Rear Oil Seal

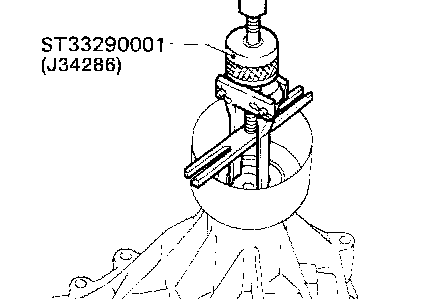

Pull out rear oil seal.


REAR CASE / INSTALLATION






Rear Oil Seal

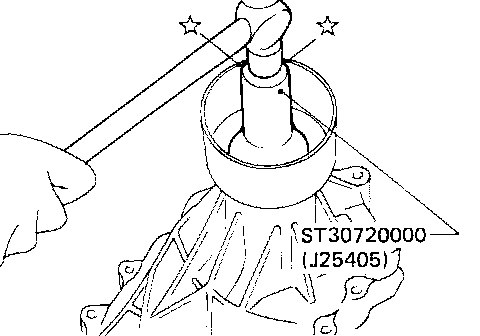

Install new rear oil seal until it stops.
Before installing, apply multi-purpose grease to seal lip.

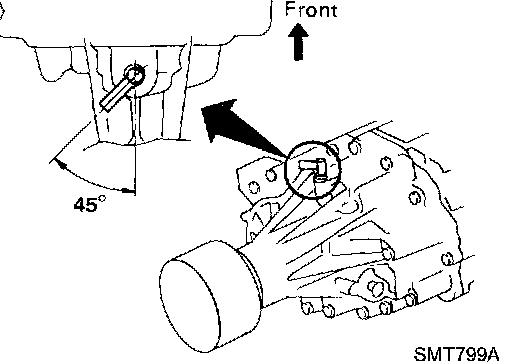

Air Breather
Install as shown in illustration.
