Front Drive Shaft

FRONT DRIVE SHAFT / DISASSEMBLY

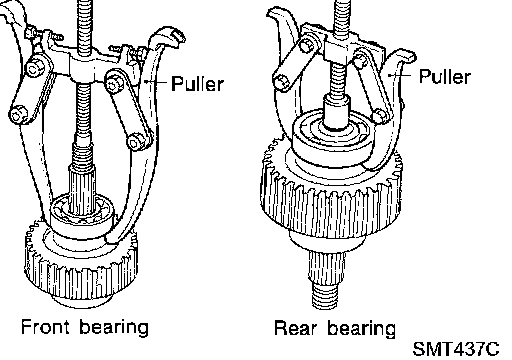

Using a gear puller, remove front drive shaft front and rear bearings.



FRONT DRIVE SHAFT / INSPECTION

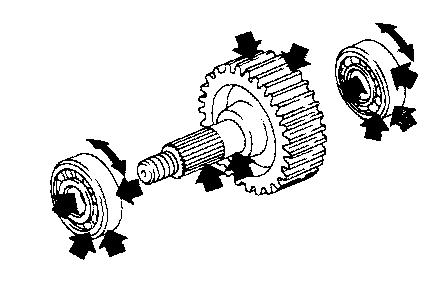

Sprocket and Shaft
Check sprocket for excessive wear, chips or cracks.
Check shaft for cracks or wear.


Bearing
Make sure bearings roll freely and are free from noise, cracks, pitting or wear.


FRONT DRIVE SHAFT / ASSEMBLY

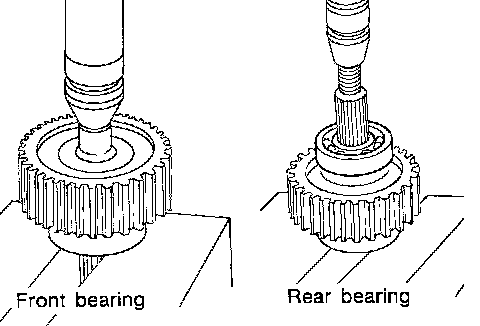

Press front drive shaft front and rear bearings onto front drive shaft.
