Counter Gear

COUNTER GEAR / DISASSEMBLY

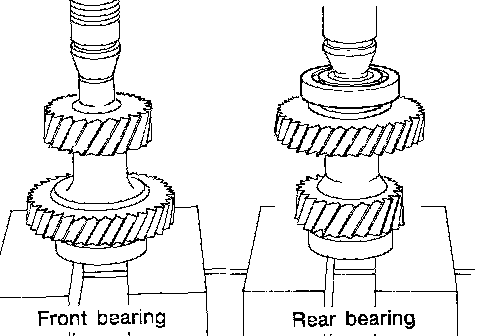

1. Press out counter gear front bearing.
Remove front sub-gear, dish plate and spacer (M/T model only).






2. Press out counter gear rear bearing.
Remove rear sub-gear, dish plate and spacer (M/T model only).


COUNTER GEAR / INSPECTION






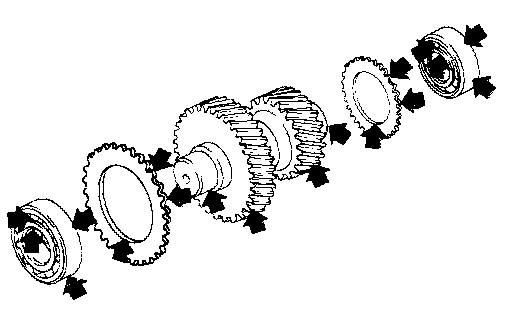

Gear and Shaft
Check gears for excessive wear, chips or cracks.
Check shaft for cracks or wear.


Bearing
Make sure bearings roll freely and are free from noise, cracks, pitting or wear.







COUNTER GEAR / ASSEMBLY
1. Install front sub-gear, dish plate and spacer (M/T model only).

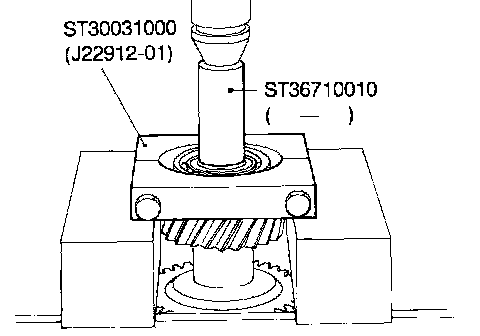

2. Press on counter gear front bearing.
3. Install rear sub-gear, dish plate and spacer (M/T model only).

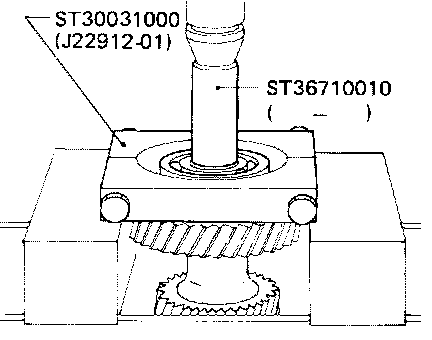

4. Press on counter gear rear bearing.
